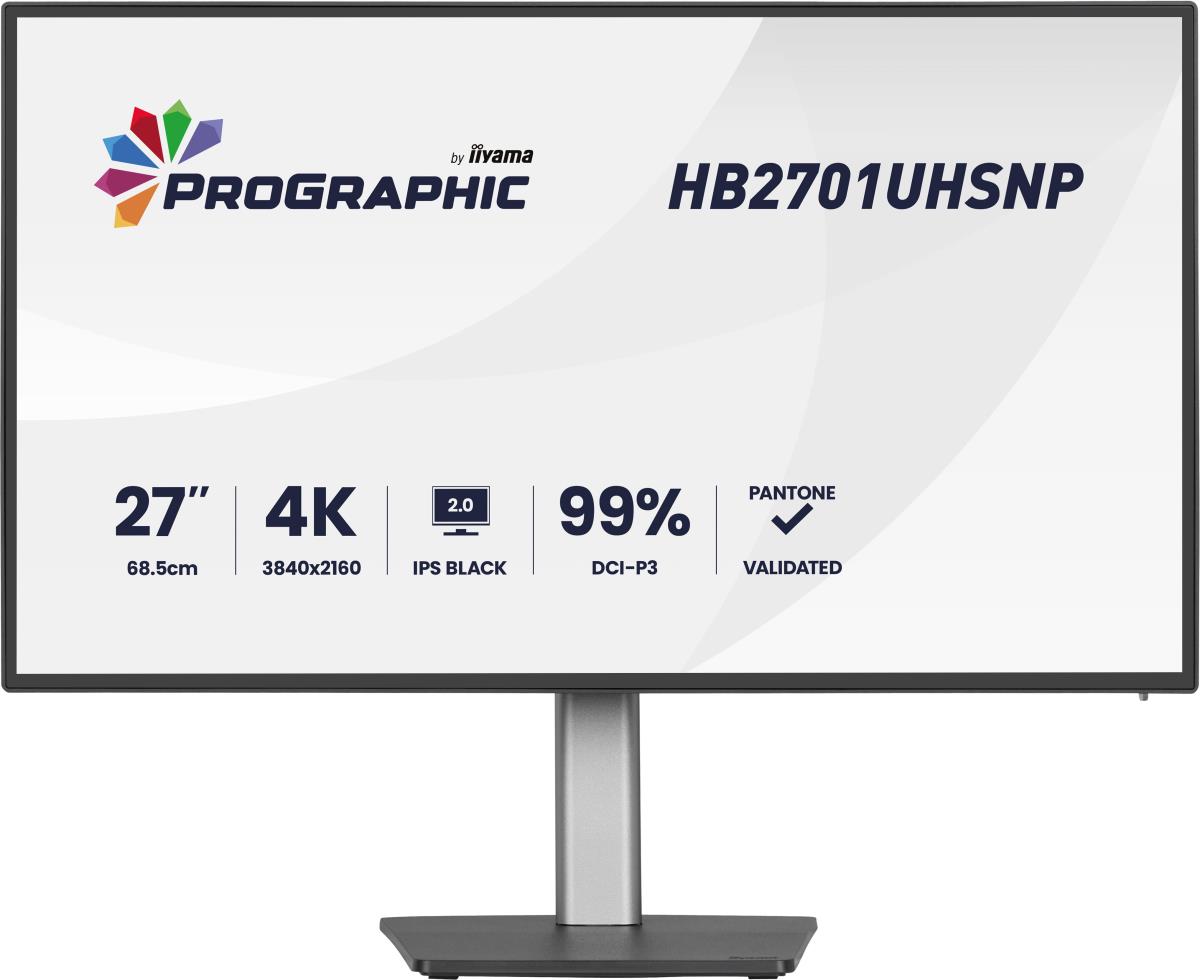

Desktop Monitor - ProLite HB2701UHSNP-B1 - 27in - 3840x2160 (UHD) - Black
ITCurry #: 89303554 | Article #: HB2701UHSNP-B1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Work with confidence on the 27? ProGraphic HB2701, a 4K UHD monitor engineered for designers, photographers, and content creators who demand uncompromising visual clarity. Powered by IPS Black 2.0 technology, it delivers deeper contrast and richer blacks, ensuring every shadow and detail is revealed with stunning precision. With 99% DCI-P3 coverage and Pantone Validated colour accuracy, your work translates seamlessly across print, video, and digital platforms. The AGLR anti-glare coating minimises reflections, keeping you focused whether you're in a bright studio or a dim workspace. These advanced features allow you to fully showcase your creativity and skills. Designed for productivity, the HB2701 features a 150mm height-adjustable stand, USB-C docking, and a built-in KVM switch, giving you a clean, connected setup ready for effortless multitasking.
| Display | |
| Display diagonal | 68.6 cm (27") |
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS Black |
| Touchscreen | No |
| Display brightness (typical) | 450 cd/mý |
| Response time | 4 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.155 x 0.155 mm |
| Horizontal scan range | 30 - 140 kHz |
| Vertical scan range | 40 - 60 Hz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Display diagonal (metric) | 68.5 cm |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| DDC/CI | Yes |
| Colour depth | 8 bit |
| Colour gamut standard | DCI-P3, NTSC, sRGB |
| sRGB coverage (typical) | 100% |
| NTSC coverage (typical) | 72% |
| DCI-P3 coverage | 99% |
| Performance | |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Design | |
| Market positioning | Graphics design |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B, USB Type-C |
| Number of upstream ports | 2 |
| Number of downstream ports | 4 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 3 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort out quantity | 1 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Built-in KVM switch | Yes |
| HDCP | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Swivelling | Yes |
| Swivel angle range | 0 - 360ø |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23ø |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Power | |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 27 kWh |
| Energy consumption (HDR) per 1000 hours | 37 kWh |
| Power consumption (typical) | 27 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.3 A |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width (with stand) | 614 mm |
| Depth (with stand) | 224.5 mm |
| Height (with stand) | 544 mm |
| Weight (with stand) | 6.7 kg |
| Height (without stand) | 404 mm |
| Packaging data | |
| Package width | 688 mm |
| Package depth | 138 mm |
| Package height | 463 mm |
| Package weight | 9.7 kg |
| Package type | Box |
| USB cable length | 1.8 m |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort, USB Type-C |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Sustainability | |
| Sustainability certificates | ErP, TCO |
| Other features | |
| Packaging content | quick start guide, safety guide |
| User controls | picture adjust (contrast, brightness, uniformity, ACR, Eco, OD, gamma), colour settings (HDR, 6-axis, i-Style colour, colour space, RGB range, colour temp., user preset), PiP/PbP (PiP/PbP, sub source, PiP position, PiP size, swap), OSD (H/ position, V. position, OSD time, OSD background, DDC/CI control, display information), language, recall (recall all), miscellaneous (sharpness, video mode adjust, smart power, USB charge, MST DP-out, USB-C speed, shortcut key, opening logo, power LED, Mac address, FW version), KVM (HDMI, DP, USB-C), input select (input select, DisplayPort mode), audio settings (volume, mute, audio input) |
| Weight | 6.7 kg |
| Width | 614 mm |
| Depth | 224.5 mm |
| Control panel | Joystick/Power: Up/Input Select, Down/Shortcut, Right/Shortcut, Left/Shortcut |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TšV mark, UKCA, VCCI, WEEE |
| Ethernet LAN (RJ-45) ports | 1 |
| Warranty | |
| Base Warranty | Non Non |
