0u 12 C19/12 C13 32a 3 Phase Pdu
ITCurry #: 2550G378 | Article #: 46M4143
slide 1 of 1
Price:
586.24
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 7 to 11 of 14
Product Information

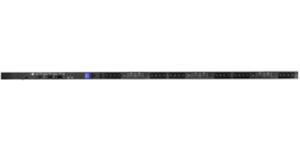

The IBM 46M4143 0U PDU is designed for the most power-demanding and highest-availability IBM System x® and BladeCenter® environments. This power-dense unit efficiently distributes 32 A three-phase WYE power to 12 IEC-320-C19 (16 A) and 12 IEC-320-C13 (10 A) receptacles.
| Design | |
| PDU types | Basic |
| Rack capacity | 0U |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 220-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 220-240 V |
| Output voltage | 96 V |
| Certificates | |
| Certification | EN55024:2003; IEC 6100-4-2, -3, -4, -5, -6, -8, -11 |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 55 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 1200 mm |
| Dimensions (WxDxH) | 85 x 1200 x 44.5 mm |
| Height | 44.5 mm |
| Weight | 7.8 kg |
| Warranty | |
| Base Warranty | Non Non |
