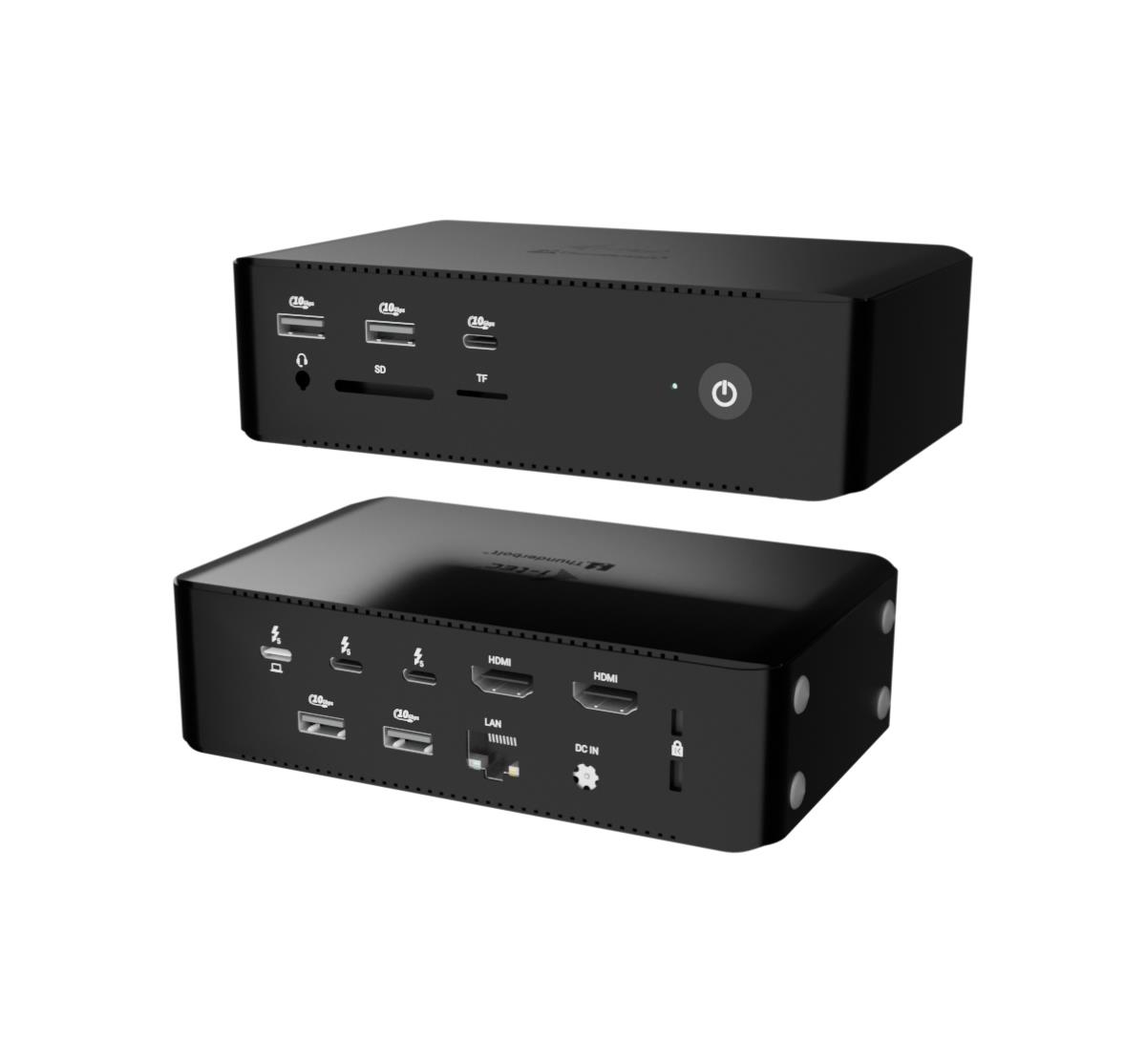

Thunderbolt 5 4x Display Docking Station - USB-c - Power Delivery 140w
ITCurry #: P3642586 | Article #: TB5QUATTRODOCKPD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Extreme performance, ultra-fast data transfer, and support for resolutions up to 8K/60 Hz. The most powerful i-tec docking station on the market!
Crystal-clear image quality, lightning-fast internet, and data transfer speeds of up to 12 GB per second thanks to the integrated Thunderbolt 5 output port. Of course, you can also connect headphones or audio devices and charge your laptop (up to 140 W**) – all through a single cable (a 100 cm certified Thunderbolt 5 cable is included in the package).
Thanks to the integrated DP 1.4 protocol, you can connect this docking station to a monitor with up to 8K resolution (7680 x 4320) at 60 Hz refresh rate – equivalent to the resolution of four 4K monitors. This makes it an ideal solution for graphic designers, analysts, developers, video editors, and high-resolution video enthusiasts.
The docking station is now compatible not only with Thunderbolt 5/4/3 ports but also with USB4 and USB-C, making it a flexible solution for businesses and users who work with laptops and tablets equipped with different types of ports.
- Support for up to 4 external monitors* with resolutions up to 2x 8K/60 or 4x 4K/60 Hz
- Video ports: 2x HDMI, 2x Thunderbolt 5
- 1x USB-C (10 Gbps)
- 4x USB-A (10 Gbps) with BC 1.2 fast charging support (7.5W)
- LAN port with speeds up to 2.5 Gbps (10/100/1000/2500 Mbps)
- 3.5 mm audio/microphone port
- 1x SD/microSD slot
- Laptop charging up to 140 W**
- Power button for docking station
* The maximum number of connected monitors depends on the performance of your computer and operating system.
With Thunderbolt 5 and Windows laptops, you can connect up to four monitors (the laptop lid must be closed). With Apple laptops running macOS, a maximum of two external monitors is supported.
** If your laptop or tablet supports the modern USB-C Power Delivery PD 3.1 charging protocol, the docking station provides up to 140 W charging power (with PD 3.0, the charging power is limited to 100 W).
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 2 |
| Thunderbolt 5 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 120 Gbit/s |
| Maximum digital resolution | 7680 x 4320 pixels |
| Number of displays supported | 4 |
| Maximum refresh rate | 240 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | Yes |
| Power | |
| Power source type | AC |
| Power supply | 160 W |
| Output voltage | 21 V |
| Output current | 7.61 A |
| Compatible power plug types | EU |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS, iPadOS |
| Weight & dimensions | |
| Width | 154 mm |
| Depth | 96 mm |
| Height | 45 mm |
| Weight | 692 g |
| Packaging content | |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Manual | Yes |
| Warranty | |
| Base Warranty | Non Non |
