Docking Station - USB-c Metal Ergonomic - Power Delivery 85w + Universal Charger 100w
ITCurry #: P3642457 | Article #: C31FLATPRO100UK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

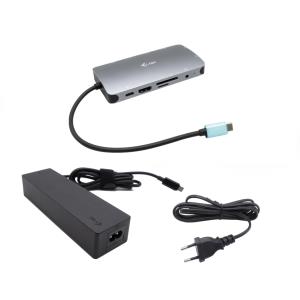

This product is a product set of a docking station and universal charging adapter. By purchasing of this kit, you get a complete solution which allows you to easily connect your favourite accessories, including LAN and external monitors, as well as easily and conveniently charge your device (including your laptop or tablet).
DOCKING STATION
Connect your favourite USB-C or Thunderbolt 3 accessories and peripherals to your laptop, tablet, PC or smartphone. Power and provide video output for up to three external monitors (applies to Windows systems) at the same time.
Plug the docking station into the USB-C or Thunderbolt 3 port of your computer with just a single cable (60 cm) and you can start using it immediately. Drivers are installed from the system automatically. The docking station was designed to also be used as an ergonomic stand for your laptop or tablet.
Note: macOS does not support Multi Stream Transport (MST) technology, meaning that when connected to a device running macOS, all connected monitors will display the same image.
UNIVERSAL CHARGER
This universal USB-C power adapter with power of 112 W is a great choice for powering any laptop or other device equipped with a USB-C connector that supports USB-C Power Delivery with a maximum power demand of 100 W.
The voltage is set automatically according to the USB Power Delivery specification 2.0 v1.2 in the individual profiles in following steps: 5 V / 9 V / 12 V / 15 V / 19 V / 20 V with max. 5 A current consumption. The power adapter is lightweight and very portable; it is equipped with intelligent current overload, overvoltage, short circuit and overheating protection.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| HD type | 4K Ultra HD |
| Number of displays supported | 3 |
| Maximum refresh rate | 60 Hz |
| Product colour | Grey |
| Housing material | Aluminium |
| Power | |
| Power source type | AC |
| Power supply | 100 W |
| Compatible power plug types | UK |
| Power cable length | 1.5 m |
| USB cable length | 0.6 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS |
| Weight & dimensions | |
| Width | 269 mm |
| Depth | 84 mm |
| Height | 23 mm |
| Weight | 324 g |
| Packaging data | |
| Package width | 316 mm |
| Package depth | 130 mm |
| Package height | 30 mm |
| Package weight | 830 g |
| Packaging content | |
| Cables included | AC |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Warranty | |
| Base Warranty | Non Non |
