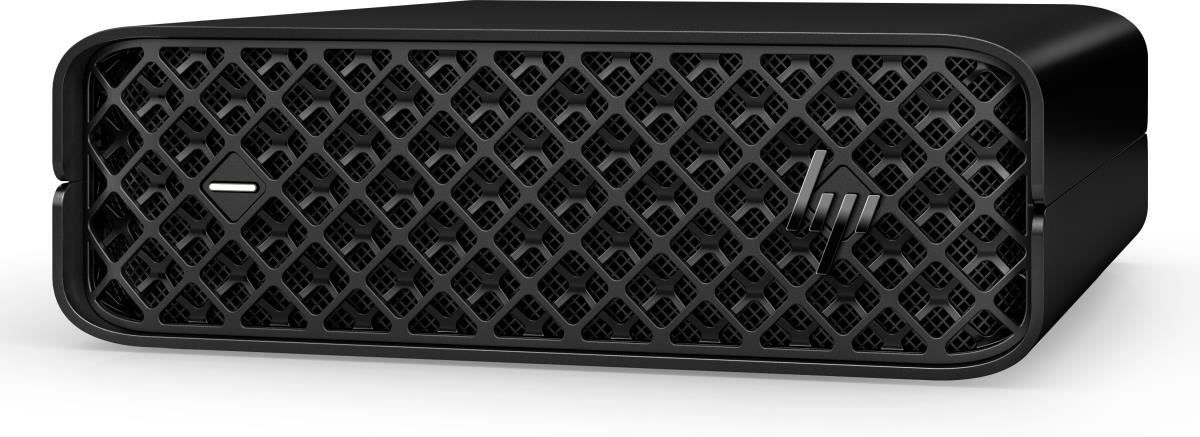

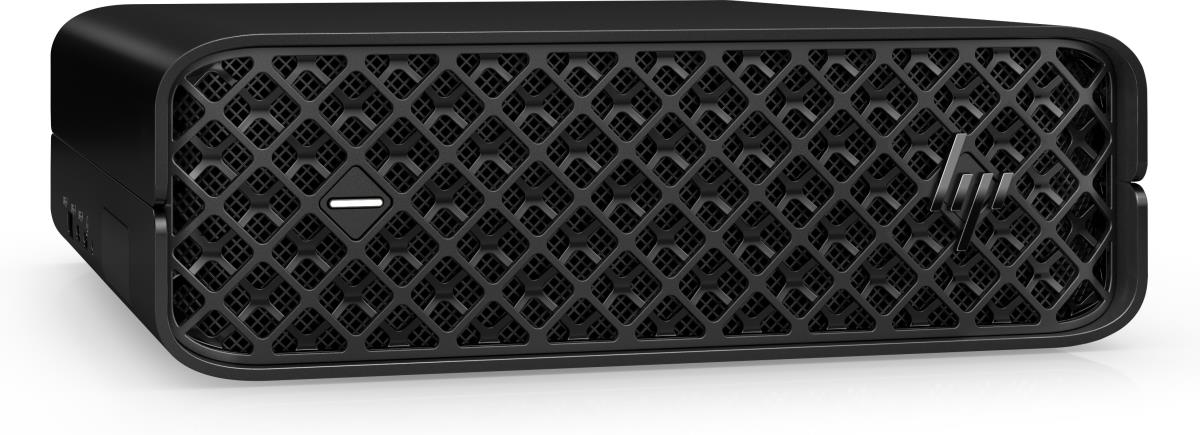

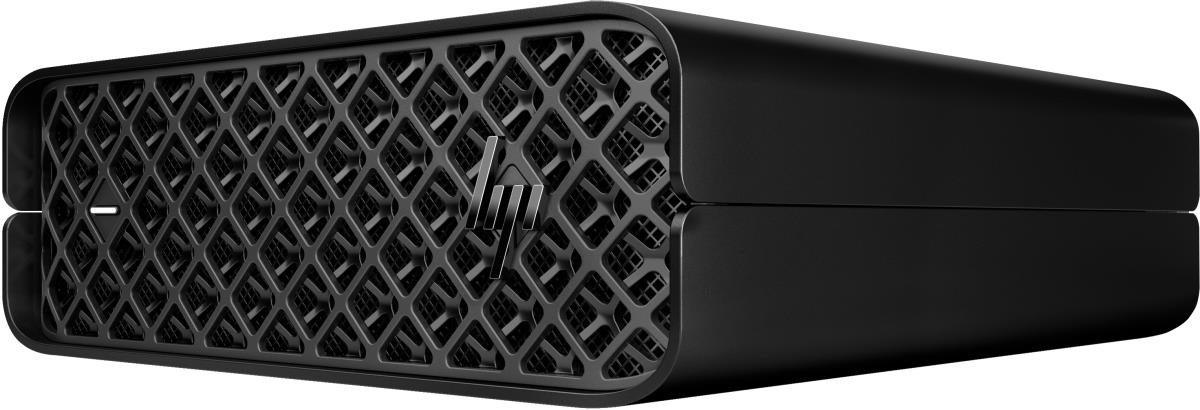

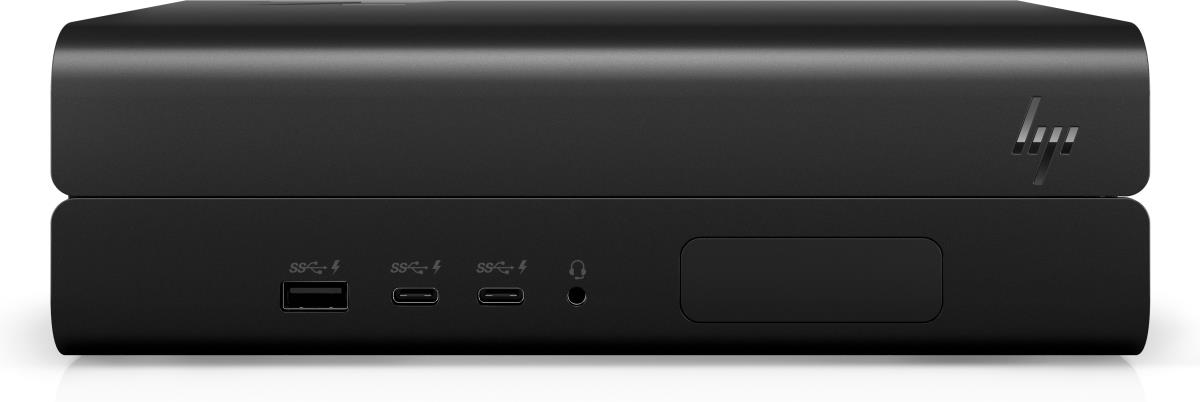

Workstation Z2 G9 Mini - i7 13700 - 32GB RAM - 512GB SSD - RTX A2000 12GB - Win11 Pro - no Keyboard
ITCurry #: 1170QAD4 | Article #: 5F195EA#UUG-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Powers large workflows. Fits a tiny space.

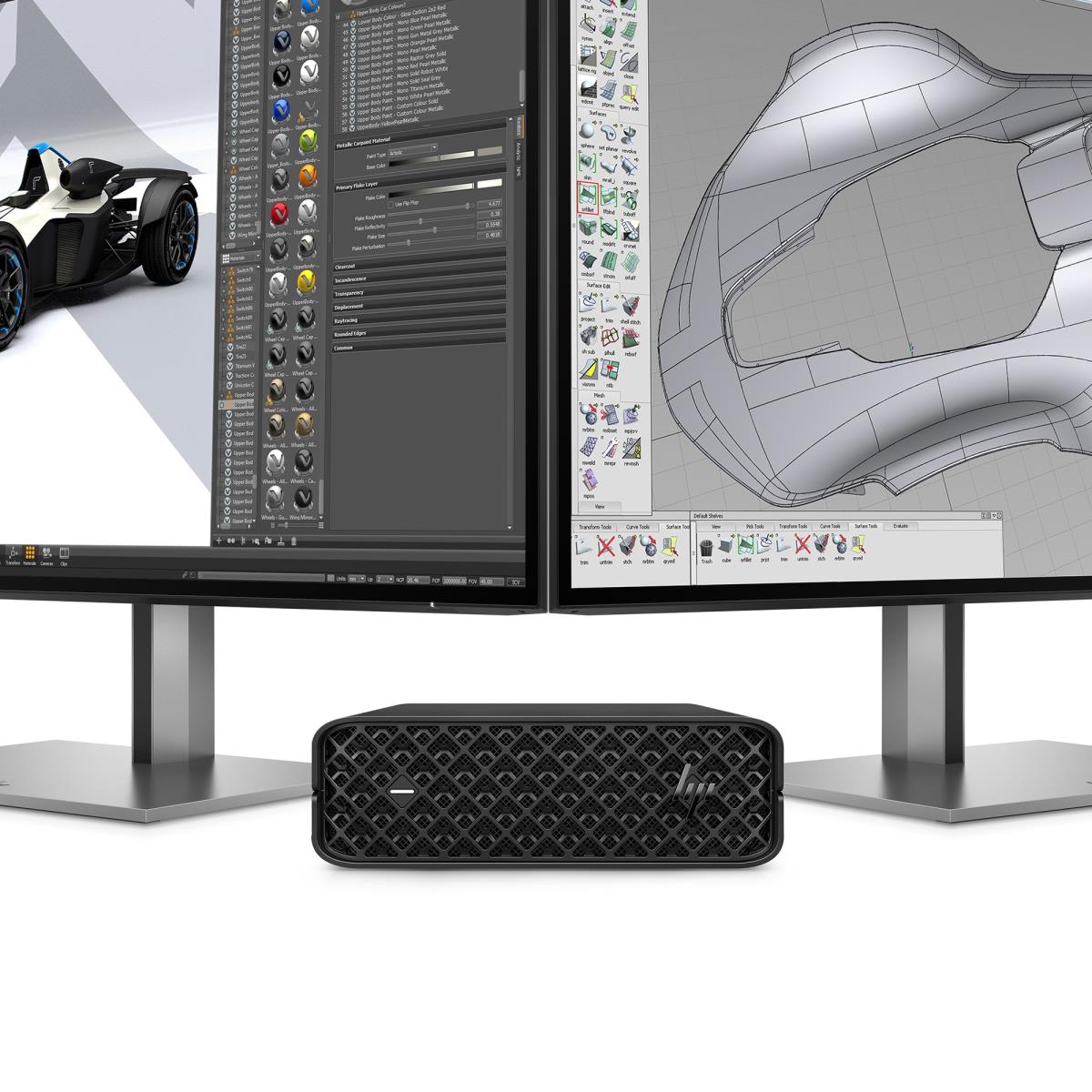

Tackle workflows you never thought before possible on such a tiny PC. The HP Z2 Mini easily fits on your desk or behind your monitor so you can tackle 3D projects without losing valuable office space. All while feeling protected From the BIOS to the browser, above, in, and below the OS with HP Wolf Security Suite.
Processor | |
Processor manufacturer | Intel |
Processor family | Intel© CoreT i7 |
Processor generation | 13th gen Intel© CoreT i7 |
Processor model | i7-13700K |
Processor cores | 16 |
Processor threads | 24 |
Processor boost frequency | 5.4 GHz |
Processor cache | 30 MB |
Processor cache type | L3 |
Bus type | DMI4 |
Memory | |
Internal memory | 32 GB |
Maximum internal memory | 32 GB |
Internal memory type | DDR5-SDRAM |
Memory layout (slots x size) | 1 x 32 GB |
Memory slots | 2x SO-DIMM |
Memory clock speed | 5600 MHz |
ECC | No |
Non-ECC | Yes |
Storage | |
Total storage capacity | 1 TB |
Storage media | SSD |
Optical drive type | No |
Number of storage drives installed | 1 |
Total SSDs capacity | 1 TB |
Number of SSDs installed | 1 |
SSD capacity | 1 TB |
SSD memory type | TLC |
SSD interface | PCI Express |
NVMe | Yes |
Graphics | |
Discrete graphics card | Yes |
Discrete GPU manufacturer | NVIDIA |
On-board graphics card | Yes |
Discrete graphics card model | NVIDIA RTX A2000 |
Discrete graphics card memory | 12 GB |
Discrete graphics memory type | GDDR6 |
Number of discrete graphics cards | 1 |
On-board GPU manufacturer | Intel |
On-board graphics card family | Intel© UHD Graphics |
On-board graphics card model | Intel UHD Graphics 770 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
WLAN controller manufacturer | Intel |
WLAN controller model | Intel Wi-Fi 6E AX211 |
Antenna type | 2x2 |
Bluetooth | Yes |
Bluetooth version | 5.3 |
Ports & interfaces | |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
DisplayPorts quantity | 2 |
DisplayPort version | 1.4 |
Ethernet LAN (RJ-45) ports | 1 |
Combo headphone/mic port | Yes |
Expansion slots | |
PCI Express x4 (Gen 4.x) slots | 2 |
PCI Express x8 (Gen 4.x) slots | 1 |
Design | |
Chassis type | Mini PC |
Placement supported | Horizontal |
Product colour | Black |
Introduction year | 2023 |
Performance | |
Market positioning | Performance |
Audio chip | Realtek ALC3205-VA2-CG |
Built-in speaker(s) | Yes |
Number of speakers | 1 |
Password protection | Yes |
Password protection type | BIOS, Power on, User |
Product type | Workstation |
Software | |
Operating system installed | Windows 11 Pro |
Pre-installed software | HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0 |
Bundled software | HP Wolf Pro Security Edition (1 year) |
Processor special features | |
CPU configuration (max) | 1 |
Brand-specific features | |
HP Support Assistant | Yes |
HP Security tools | HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure Run Gen5 |
HP GTIN (EAN/UPC) | 197498286754 |
HP segment | Business |
Power | |
Power supply | 280 W |
Power supply input voltage | 100 - 240 V |
Power supply input frequency | 50 - 60 Hz |
Sustainability | |
Sustainable technologies and materials | 45% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; 80 Plus© Gold power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and system fan; Contains recycled metal |
Weight & dimensions | |
Width | 211 mm |
Depth | 218 mm |
Height | 69 mm |
Weight | 2.4 kg |
Package width | 499 mm |
Package depth | 170 mm |
Package height | 298 mm |
Package weight | 4.8 kg |
Packaging content | |
Display included | No |
Mouse included | Yes |
Mouse connectivity | Wired |
Keyboard included | Yes |
Keyboard connectivity | Wired |
Carbon footprint | |
Total carbon footprint (kg of CO2e) | 340 |
Carbon emissions, manufacturing (kg of CO2e) | 216 |
Carbon emissions, logistics (kg of CO2e) | 1 |
Carbon emissions, end-of-life (kg of CO2e) | 1 |
Total carbon emissions, w/o use phase (kg of CO2e) | 118 |
Technical details | |
General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://h10032.www1.hp.com/ctg/Manual/c08200880.pdf |
Other features | |
Keyboard type | USB |
Warranty | |
Base Warranty | Non Non |
