Product Information

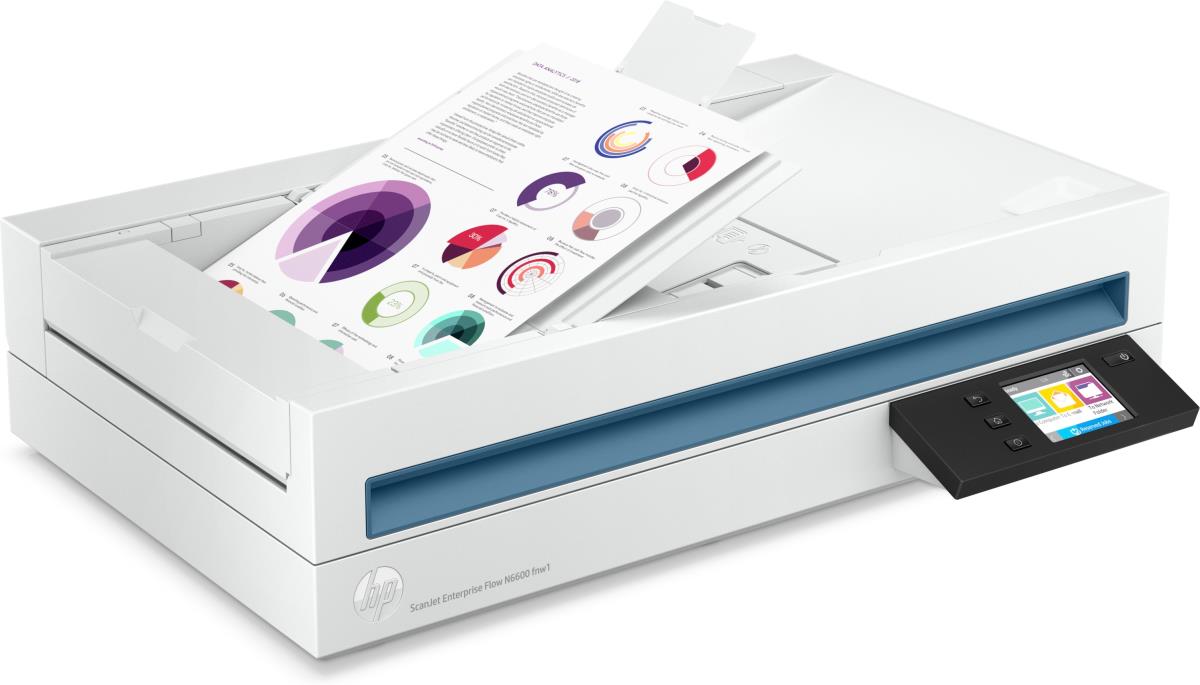

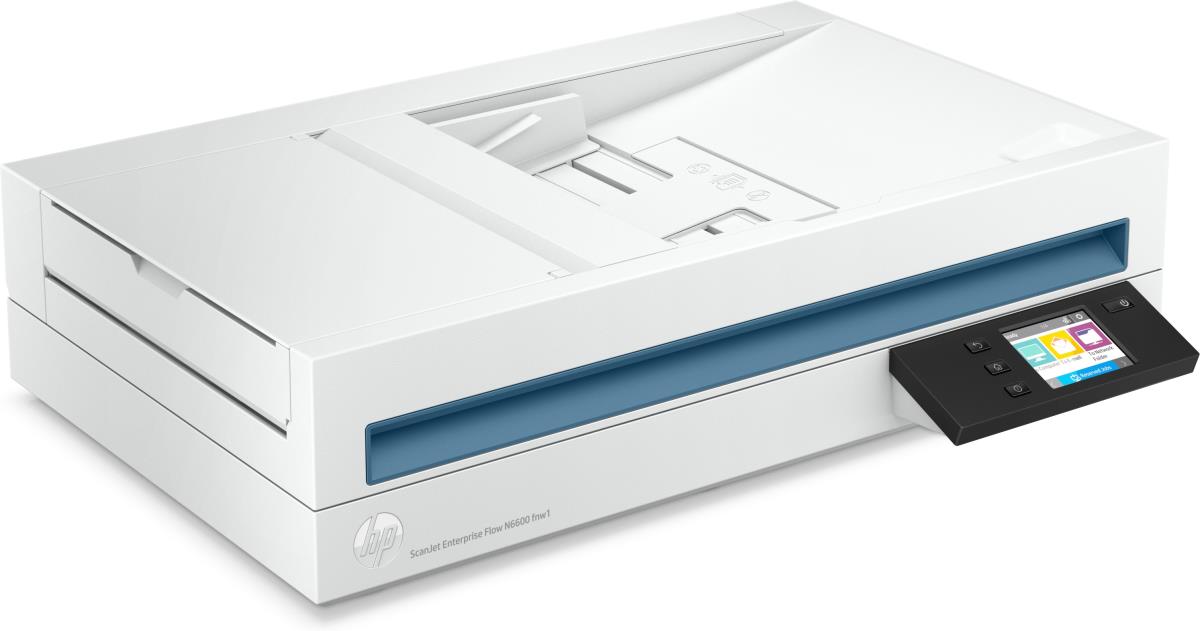

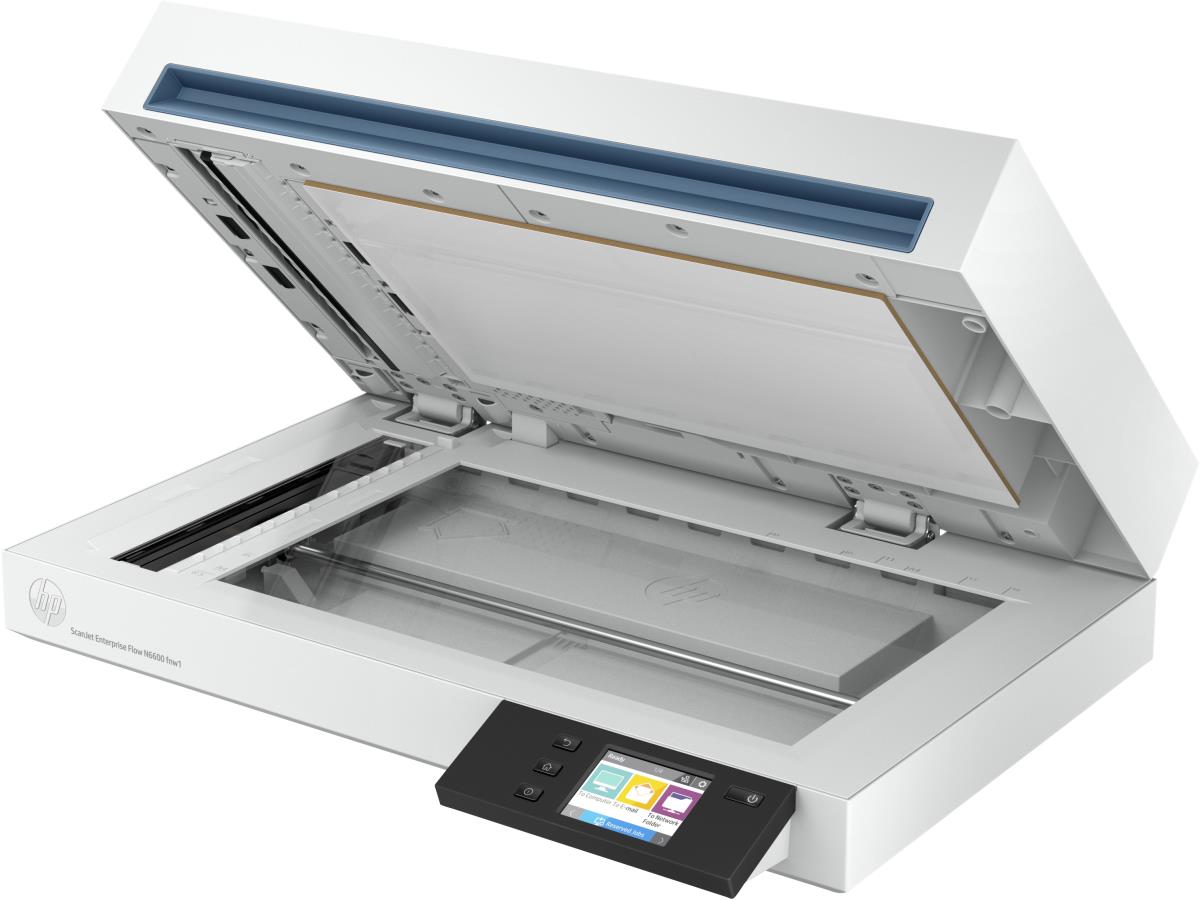

Professional workteams that need a network connected, fast, versatile, full-featured scanning for quick, ad-hoc tasks and routine jobs. Either from the automatic document feeder or Legal-size flatbed glass.
| Scanning | |
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution | 1200 x 1200 DPI |
| Duplex scanning | Yes |
| ADF scan speed (b/w, A4) | 50 ppm |
| Design | |
| Scanner type | Flatbed & ADF scanner |
| Product colour | White |

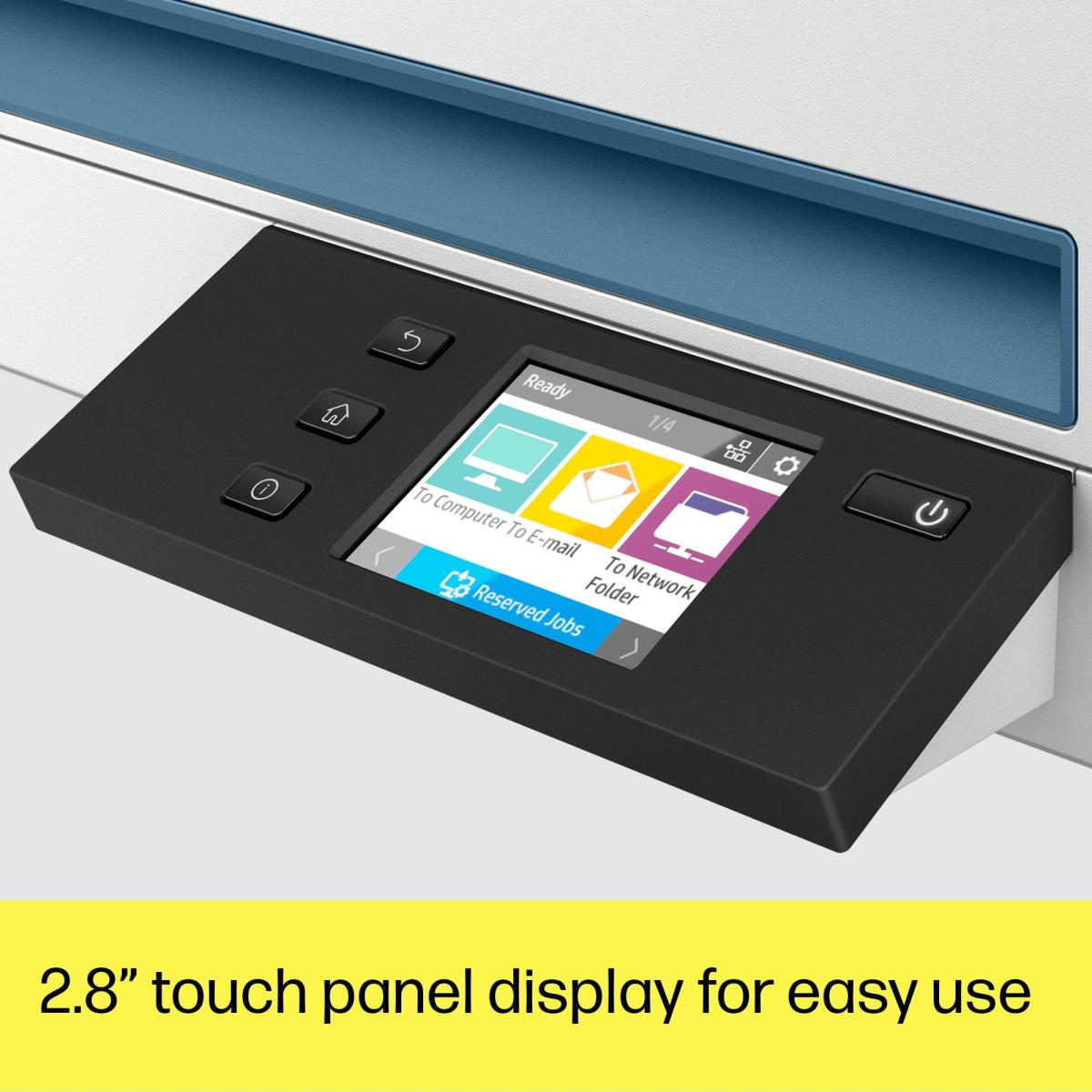

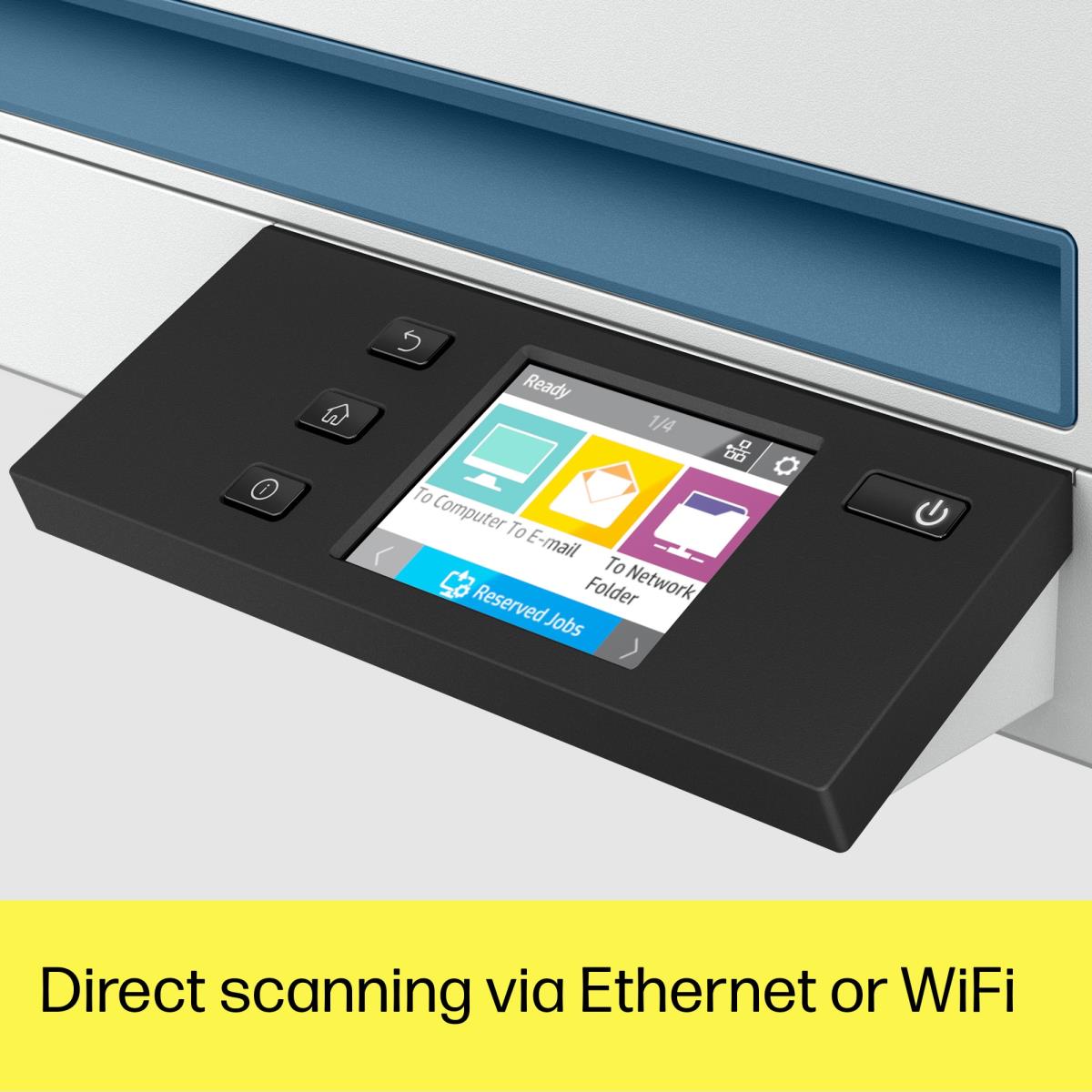

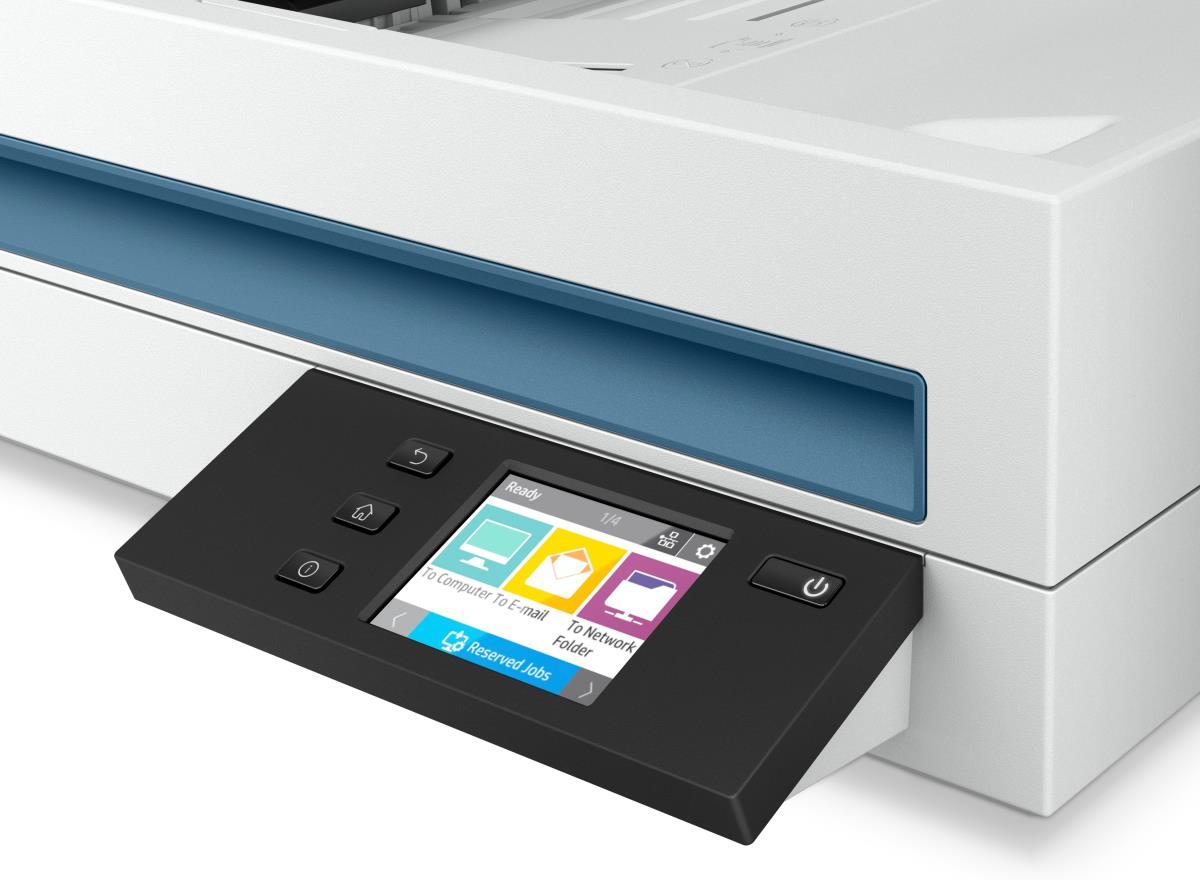

| Display diagonal | 7.11 cm (2.8") |
| Touchscreen | Yes |
| Built-in display | Yes |
| Performance | |
| Sensor type | CIS |
| Scan file formats | BMP, CSV, DOC, DOCX, JPEG, PDF, PNG, RTF, TIFF, TXT, XLS, XLSX, XML |
| Daily duty cycle (max) | 8000 pages |
| Scan to | TWAIN |
| Built-in processor | Yes |
| Processor frequency | 666 MHz |
| RAM capacity | 1 GB |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 100 sheets |
| Paper handling | |
| Scanning media types supported | Envelopes, Labels, Photo paper, Plain paper |
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Letter | Yes |
| Legal | Yes |

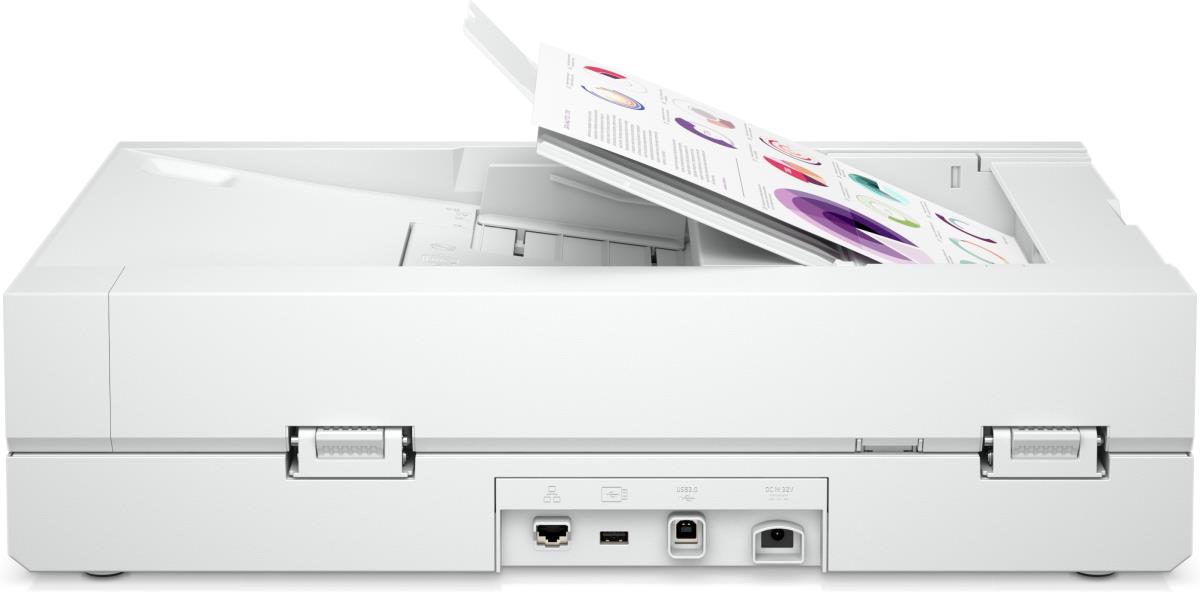

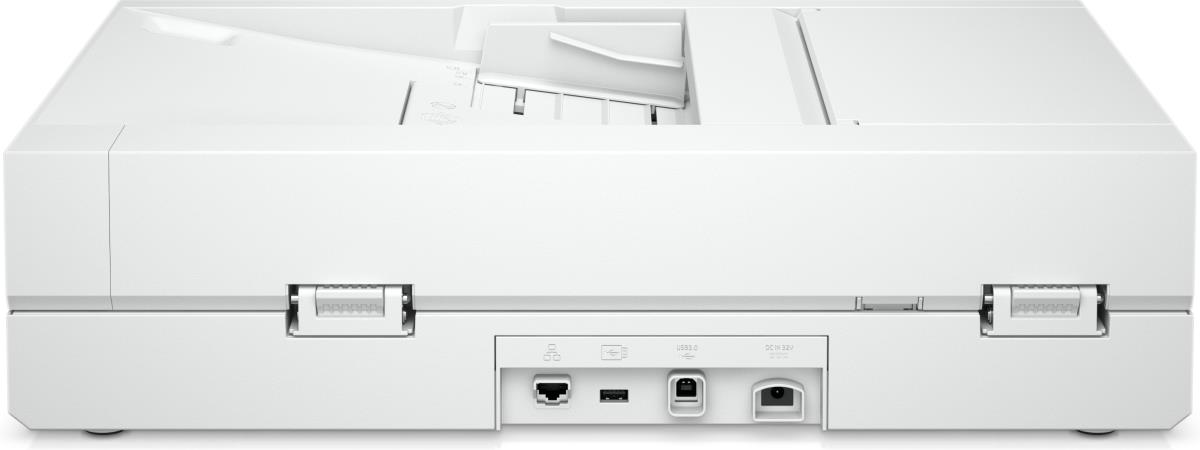

| Ports & interfaces | |
| USB port | Yes |

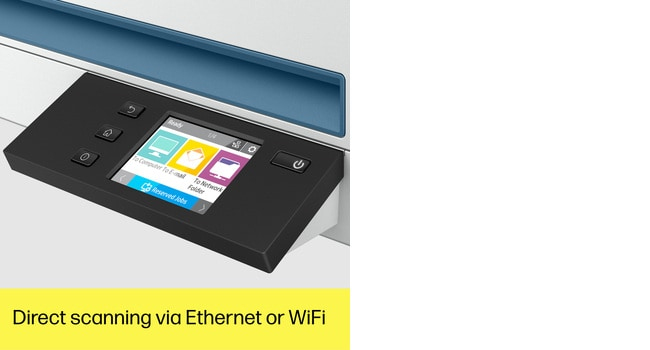

| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 23.9 W |
| Power consumption (off) | 0.06 W |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 2 W |
| Weight & dimensions | |

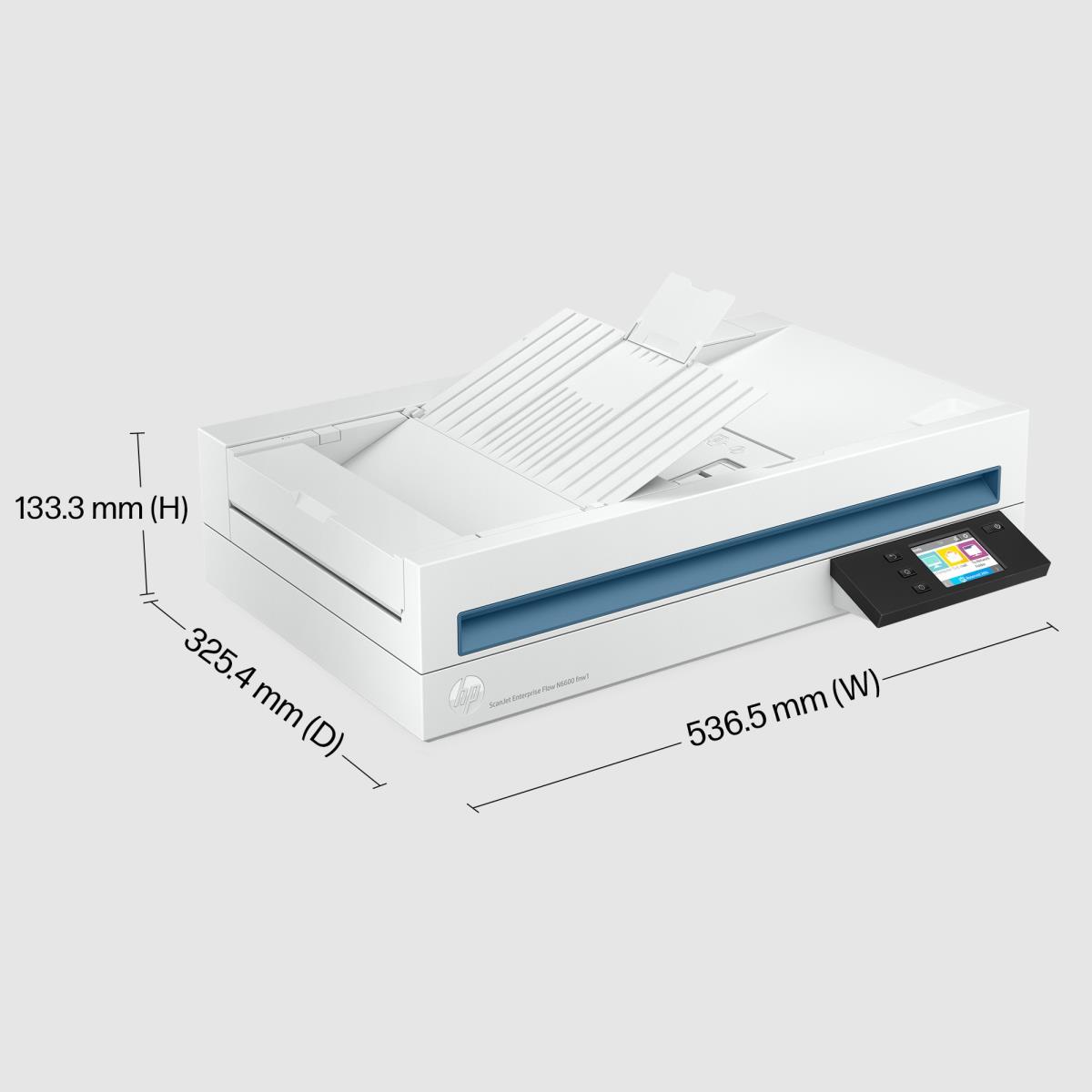

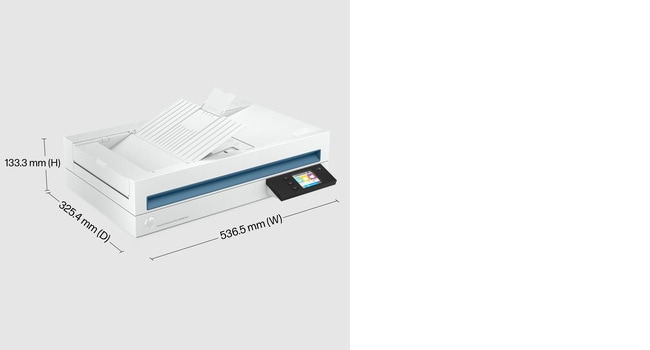

| Width | 536.5 mm |
| Depth | 325.4 mm |
| Height | 133.3 mm |
| Weight | 6.1 kg |
| Packaging data | |
| Package width | 645 mm |
| Package depth | 245 mm |
| Package height | 499 mm |
| Package weight | 7.8 kg |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 øC |
| Storage temperature (T-T) | -40 - 60 øC |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 90% |
| Logistics data | |
| Country of origin | China, Taiwan |
| Harmonized System (HS) code | 84716070 |
| Warranty | |
| Base Warranty | Non Non |
