Chromebox G2 - i5 7300U - 8GB RAM - 64GB SSD - Chrome OS - Qwerty US/Int'l
ITCurry #: 1170KLQ1 | Article #: 4BC68EA#ABH-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Boost productivity in the office and school with the affordable and easy to manage HP Chromebox. Get quick access to data and effortless collaboration with your team using cloud based G Suite for business and Android™ applications.

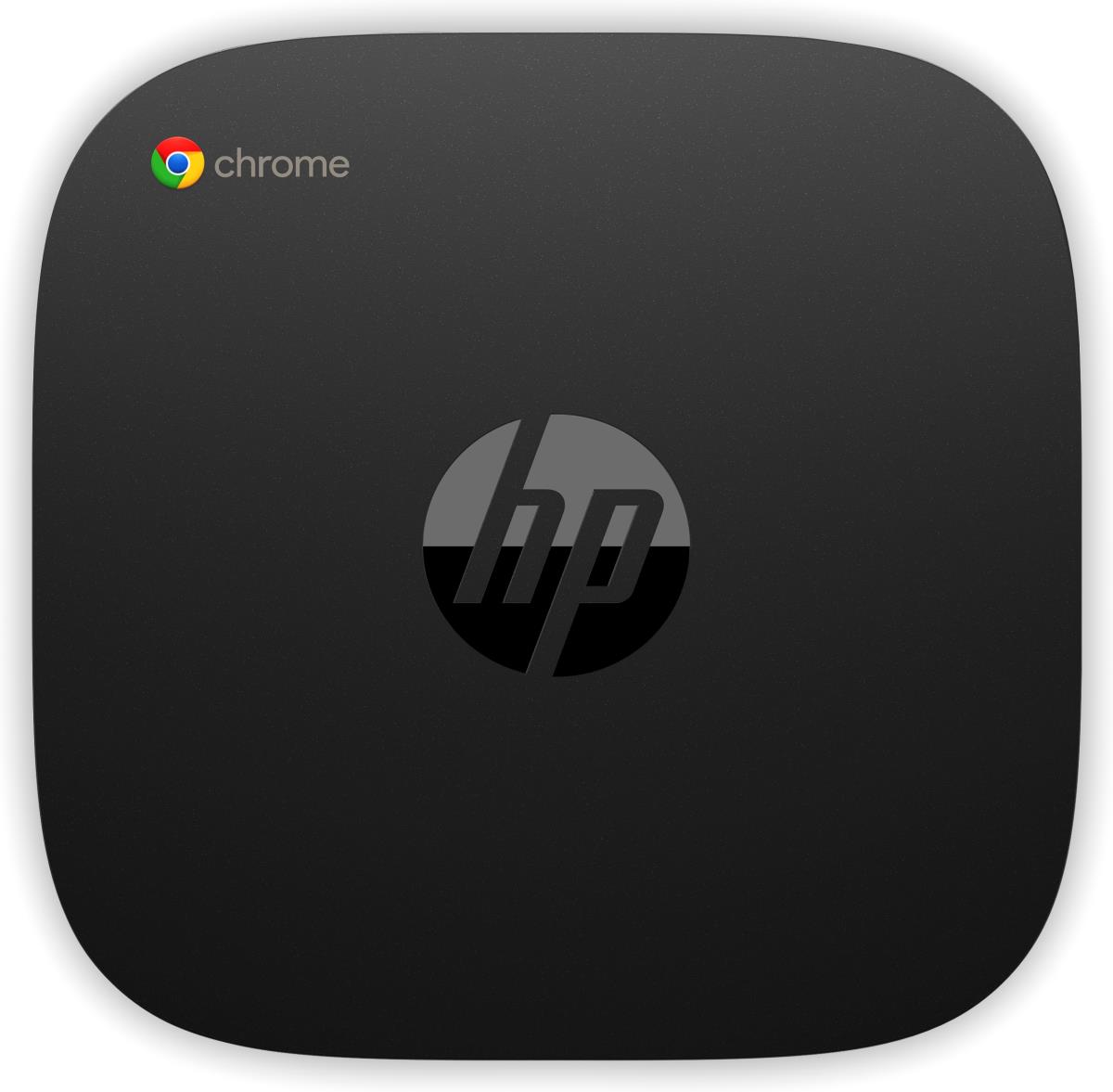

Lean and light rounded design
- Free up your workspaces with the impressively small, contoured, and mountable design of the HP Chromebox. It fits almost anywhere, including behind a compatible display.
Powerful performance
- Tackle work and school projects by multitasking with powerful Intel® 7th or 8th gen processors, up to 16GB memory, and Android™ apps.
Easy setup
- Remote management features make it easy to configure the HP Chromebox as a virtual desktop, a kiosk, or use it for digital signage in schools and businesses.
Universal connectivity and charging with USB-C™
- Use the optional USB-C™ port to charge your HP Chromebox and accessories, connect to an optional HP USB-C™ Dock for port and device connectivity or up to two optional USB-C™-compatible 4K display for large-screen productivity.
Processor | |
Processor manufacturer | Intel |
Processor family | Intel© CoreT i5 |
Processor generation | 7th gen Intel© CoreT i5 |
Processor model | i5-7300U |
Processor cores | 2 |
Processor frequency | 2.6 GHz |
Processor boost frequency | 3.5 GHz |
Processor socket | BGA 1356 |
Processor cache | 3 MB |
Processor cache type | L3 |
Processor threads | 4 |
System bus rate | 4 GT/s |
Bus type | OPI |
Processor lithography | 14 nm |
Processor operating modes | 64-bit |
Processor series | Intel Core i5-7300 Mobile Series |
Processor codename | Kaby Lake |
Thermal Design Power (TDP) | 15 W |
Configurable TDP-up frequency | 2.7 GHz |
Configurable TDP-up | 25 W |
Configurable TDP-down | 7.5 W |
Configurable TDP-down frequency | 0.8 GHz |
Tjunction | 100 øC |
PCI Express slots version | 3.0 |
Maximum number of PCI Express lanes | 12 |
PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
Number of processors installed | 1 |
Stepping | H0 |
Maximum internal memory supported by processor | 32 GB |
Memory types supported by processor | DDR3L, DDR4-SDRAM, LPDDR3-SDRAM |
Memory clock speeds supported by processor | 1600,1866,2133 MHz |
Memory bandwidth supported by processor (max) | 34.1 GB/s |
ECC supported by processor | No |
Memory | |
Internal memory | 8 GB |
Maximum internal memory | 16 GB |
Internal memory type | DDR4-SDRAM |
Memory layout (slots x size) | 2 x 4 GB |
Memory slots | 2x SO-DIMM |
Memory clock speed | 2400 MHz |
ECC | No |
Memory channels | Dual-channel |
Storage | |
Total storage capacity | 64 GB |
Storage media | SSD |
Optical drive type | No |
Total SSDs capacity | 64 GB |
Number of SSDs installed | 1 |
SSD capacity | 64 GB |
SSD interface | SATA III |
SSD form factor | M.2 |
Card reader integrated | Yes |
Compatible memory cards | SD |
Graphics | |
Discrete graphics card | No |
On-board graphics card | Yes |
Discrete graphics card model | Not available |
On-board graphics card family | Intel© HD Graphics |
On-board graphics card model | Intel© HD Graphics 620 |
On-board graphics card base frequency | 300 MHz |
On-board graphics card dynamic frequency (max) | 1100 MHz |
Maximum on-board graphics card memory | 32 GB |
Number of displays supported (on-board graphics) | 3 |
On-board graphics card DirectX version | 12.0 |
On-board graphics card OpenGL version | 4.4 |
On-board graphics card ID | 0x5916 |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Cabling technology | 10/100/1000Base-T(X) |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
WLAN controller manufacturer | Intel |
WLAN controller model | Intel Dual Band Wireless-AC 7265 |
Antenna type | 2x2 |
Bluetooth | Yes |
Bluetooth version | 4.2 |

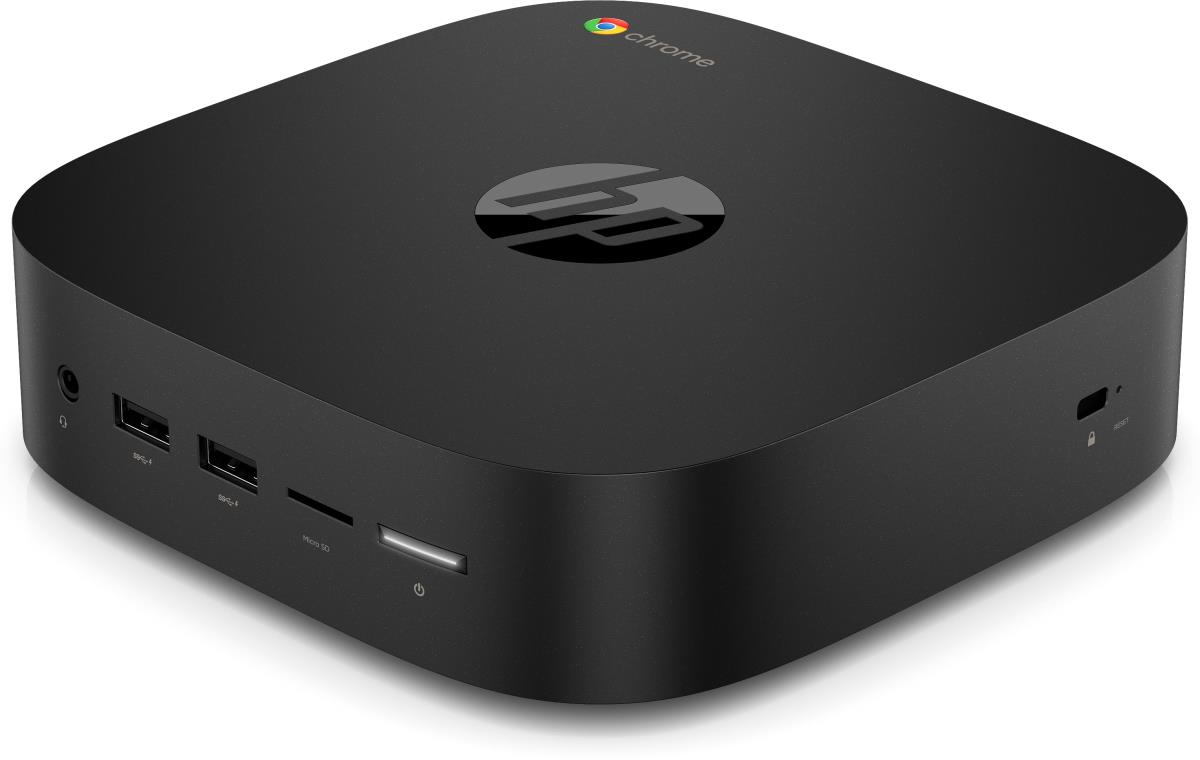

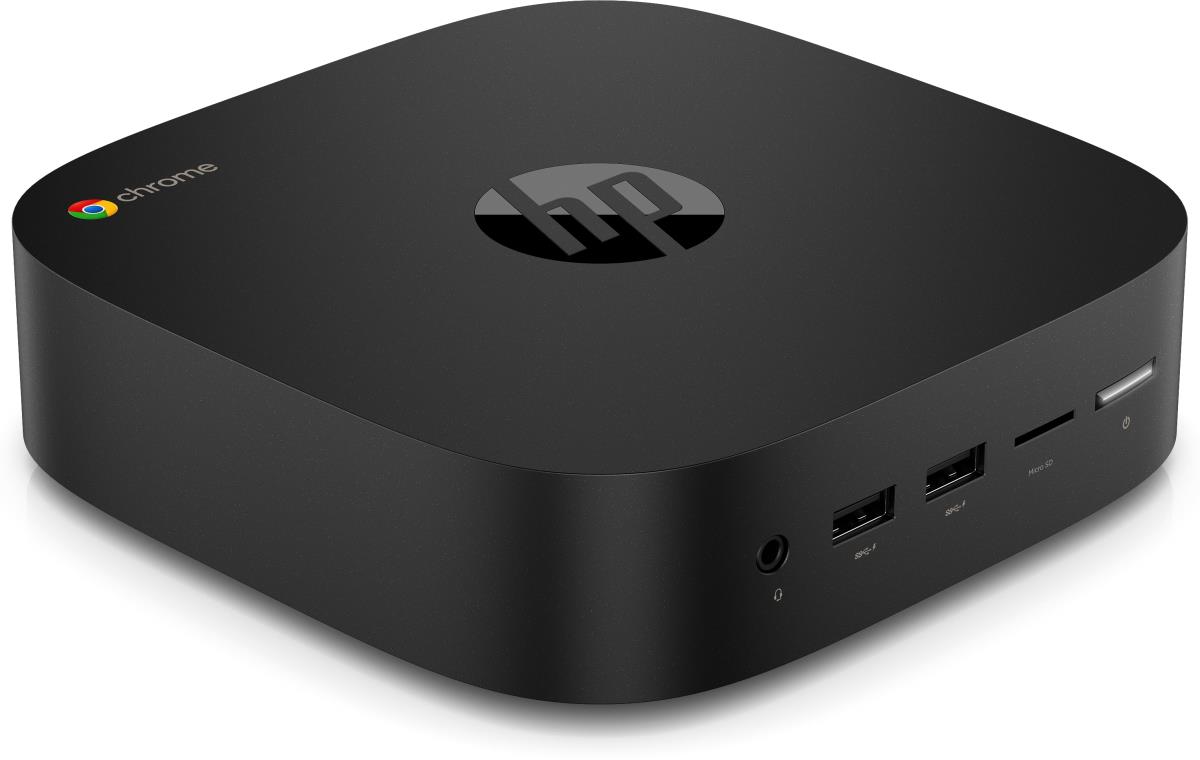

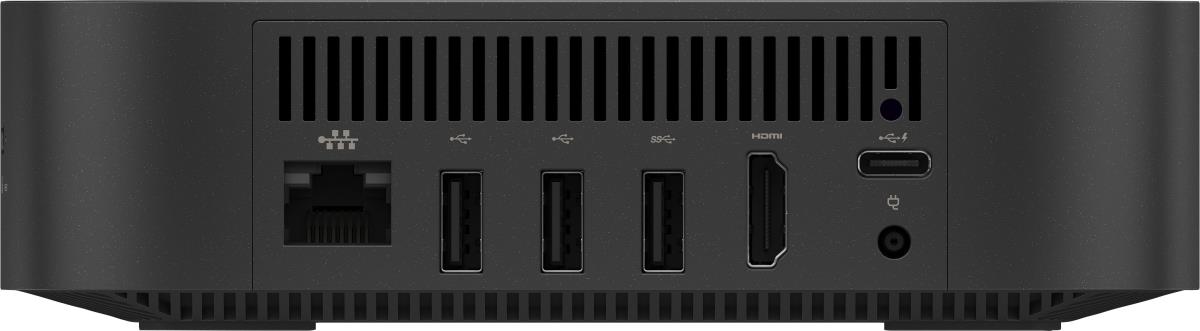

Ports & interfaces | |
USB 2.0 ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
DVI port | No |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
Microphone in | No |
Headphone outputs | 1 |
Combo headphone/mic port | Yes |
Design | |
Chassis type | Mini PC |
Placement supported | Horizontal |

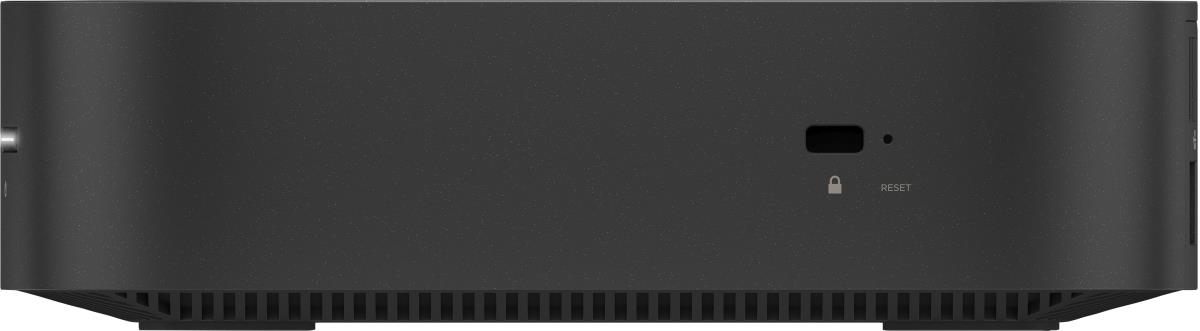

Cable lock slot | Yes |
Product colour | Black |
Country of origin | China |
Performance | |
Market positioning | Business |
Product type | Mini PC |
Software | |
Operating system installed | ChromeOS |
Processor special features | |
Intel 64 | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Embedded options available | Yes |
Intel© Clear Video HD Technology (Intel© CVT HD) | Yes |
Intel Clear Video Technology | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel TSX-NI | Yes |
Idle States | Yes |
Thermal Monitoring Technologies | Yes |
Intel Stable Image Platform Program (SIPP) | Yes |
Intel© AES New Instructions (Intel© AES-NI) | Yes |
Intel© Secure Key | Yes |
Intel© OS Guard | Yes |
Intel Trusted Execution Technology | Yes |
Execute Disable Bit | Yes |
Intel Flex Memory Access | Yes |
Intel Enhanced Halt State | Yes |
Intel Software Guard Extensions (Intel SGX) | Yes |
Intel© Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Processor package size | 42 X 24 mm |
Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Processor code | SR340 |
CPU configuration (max) | 1 |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Identity Protection Technology version | 1.00 |
Intel Stable Image Platform Program (SIPP) version | 1.00 |
Intel Secure Key Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | Yes |
Intel Smart Response Technology version | 1.00 |
Intel TSX-NI version | 1.00 |
Processor ARK ID | 97472 |
Intel© Smart Response Technology | Yes |
Intel© Turbo Boost Technology | 2.0 |
Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
Intel© Quick Sync Video Technology | Yes |
Intel© My WiFi Technology (Intel© MWT) | Yes |
Intel© Identity Protection Technology (Intel© IPT) | Yes |
Conflict-Free processor | Yes |
Brand-specific features | |
HP segment | Business |
Power | |
Power supply | 65 W |
Sustainability | |
Sustainability certificates | EPEAT Silver, ENERGY STAR |
Weight & dimensions | |
Width | 149.3 mm |
Depth | 149.3 mm |
Height | 40 mm |
Weight | 570 g |
Package width | 235 mm |
Package depth | 190 mm |
Package height | 110 mm |
Package weight | 790 g |
Packaging content | |
Display included | No |
Warranty | |
Base Warranty | Non Non |
