Product Information
EVERYTHING YOU NEED IN A DESK PHONE

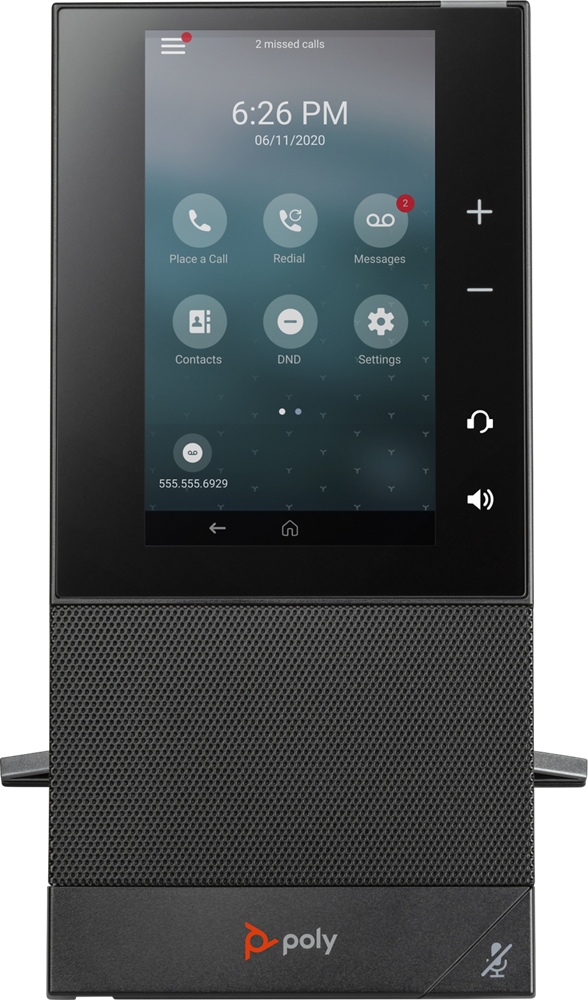

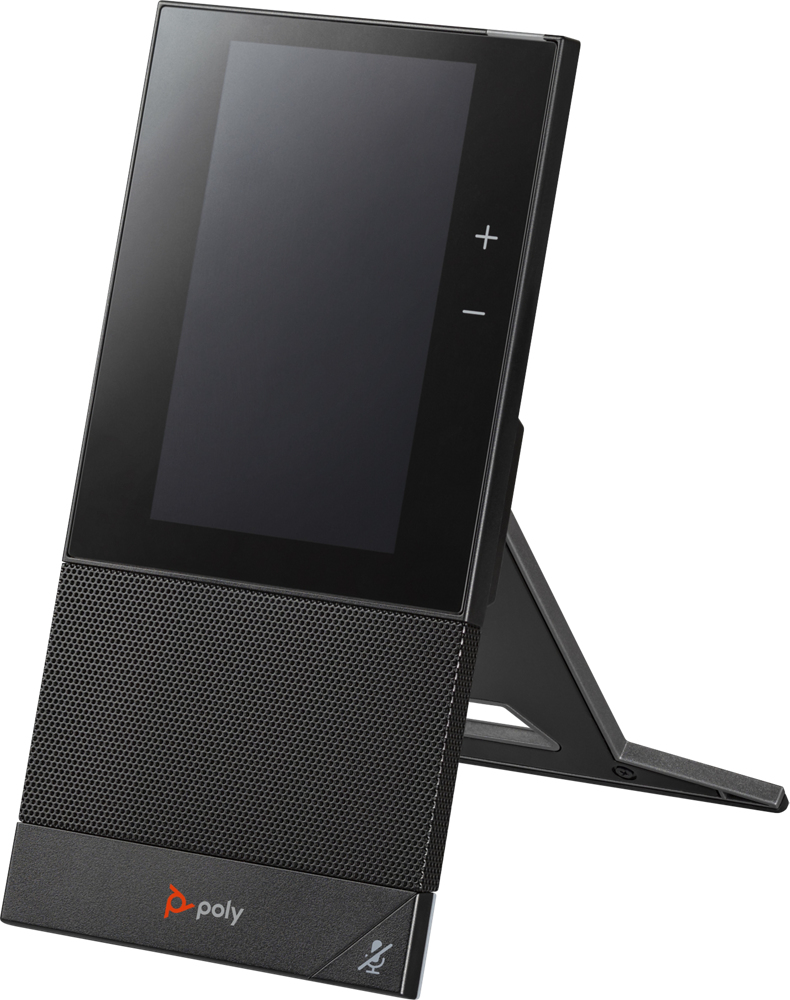

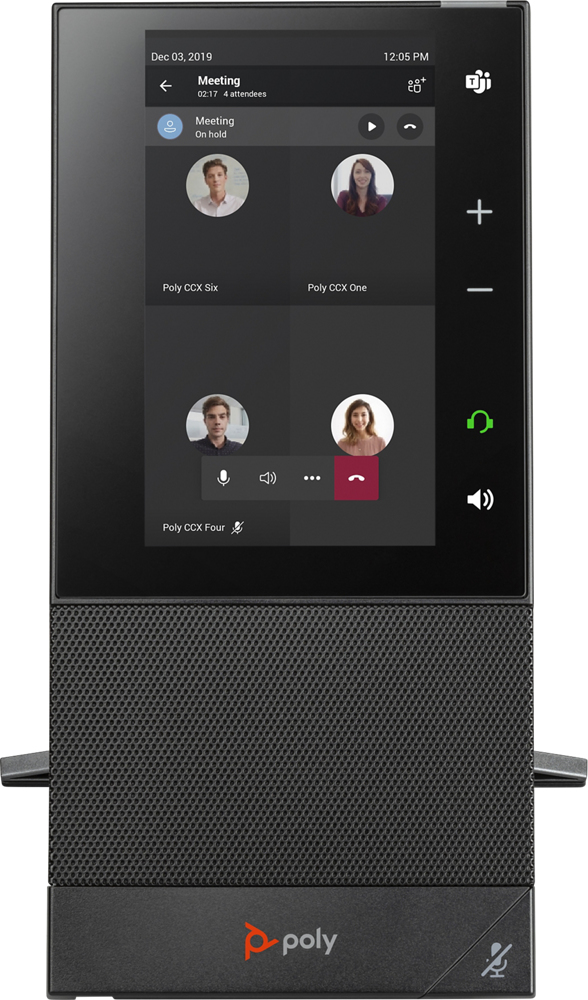

CCX 500 is destined to be the “office standard” in the next-generation CCX family of phones. With a 5-inch color touchscreen, Bluetooth, and Android 9-powered performance, this phone takes audio quality even further. And you can choose a phone with a handset or install it with your favorite headset with the new, modern “no handset” model.
Design | |
Product type | IP Phone |
Handset type | Wired handset |
Product colour | Black |
Performance | |
Operating system installed | Android |
Operating system version | 9 |
Password protection type | User |
Hearing aid compatibility | Yes |
Phone features | |
Caller ID | Yes |
SIP registrar server | Yes |
Management features | |
Integrated voicemail | Yes |
Display | |
Display | LCD |
Display diagonal | 12.7 cm (5") |
Display resolution | 720 x 1280 pixels |
Aspect ratio | 9:16 |
Touchscreen | Yes |
Audio | |
Speakerphone | Yes |
Voice codecs | G.711, G.722, G.722.1, G.729A, G.729B |
Voice activity detection | Yes |
Adaptive jitter buffers | Yes |
Comfort noise generation (CNG) | Yes |
Packet loss concealment (PLC) | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Wi-Fi | No |
Bluetooth | Yes |
Bluetooth version | 4.2 |
DHCP client | Yes |
Event logging | Yes |
Security algorithms | HTTPS, TLS |
Syslog | Yes |
Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |

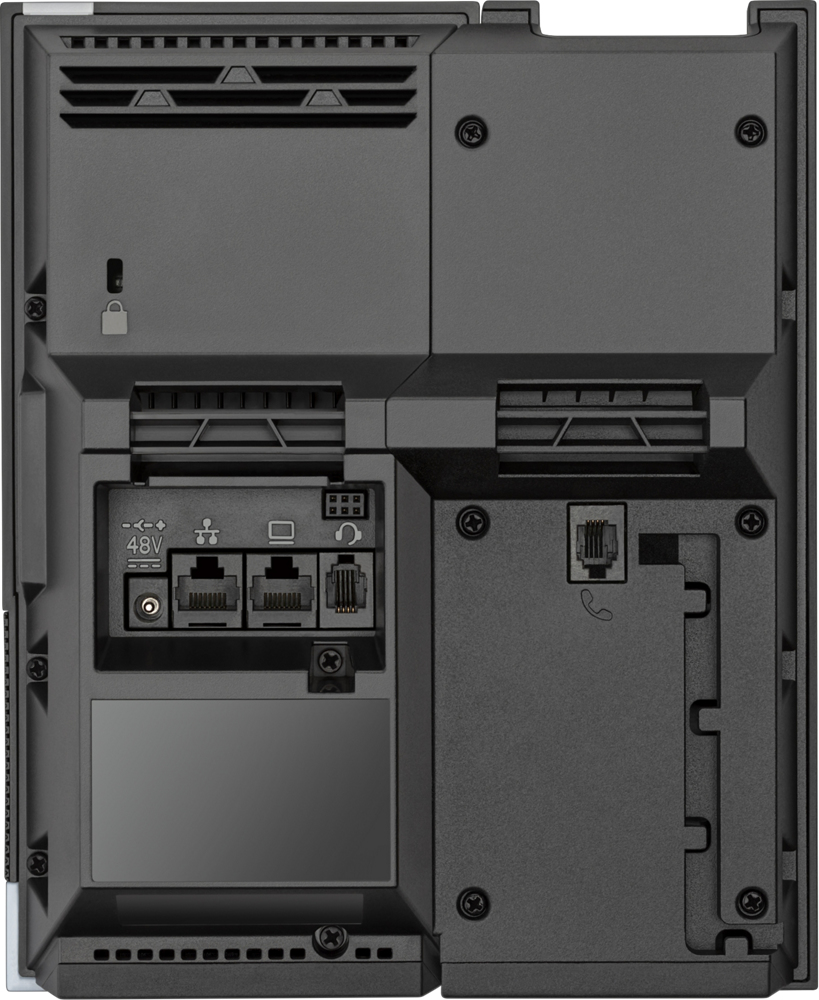

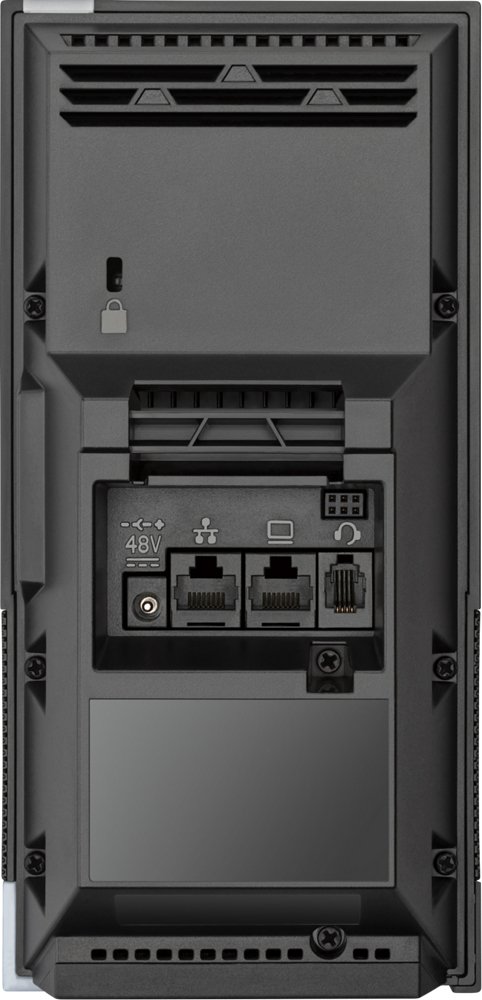

Ports & interfaces | |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 2 |
RJ-9 ports quantity | 1 |
Certificates | |
Safety | UL 62368-1, CAN/CSA C22.2 No. 62368-1-14, EN 62368-1, IEC 60950-1 & IEC 62368-1, AS/NZS 62368-1 |
Certification | Argentina ENACOM Australia RCM Brazil ANATEL Canada ICES & NRTLC China CCC & SRRC EEA CE Mark Eurasian Customs Union EAC India WPC Indonesia SDPPI Israel MOC Japan MIC & VCCI Malaysia SIRIM Mexico IFETEL & NYCE NZ Telepermit Saudi Arabia CITC Singapore IMDA South Africa ICASA South Korea KC Taiwan NCC UAE TRA USA FCC & NRTL |
Warranty | |
Base Warranty | Non Non |
Power | |
Power over Ethernet (PoE) | Yes |
Weight & dimensions | |
Width | 178 mm |
Depth | 52 mm |
Height | 216 mm |
Weight | 1.28 kg |
Packaging content | |
Base station | Yes |
Number of handles included | 1 pc(s) |
Manual | Yes |
Logistics data | |
Harmonized System (HS) code | 85171800 |
