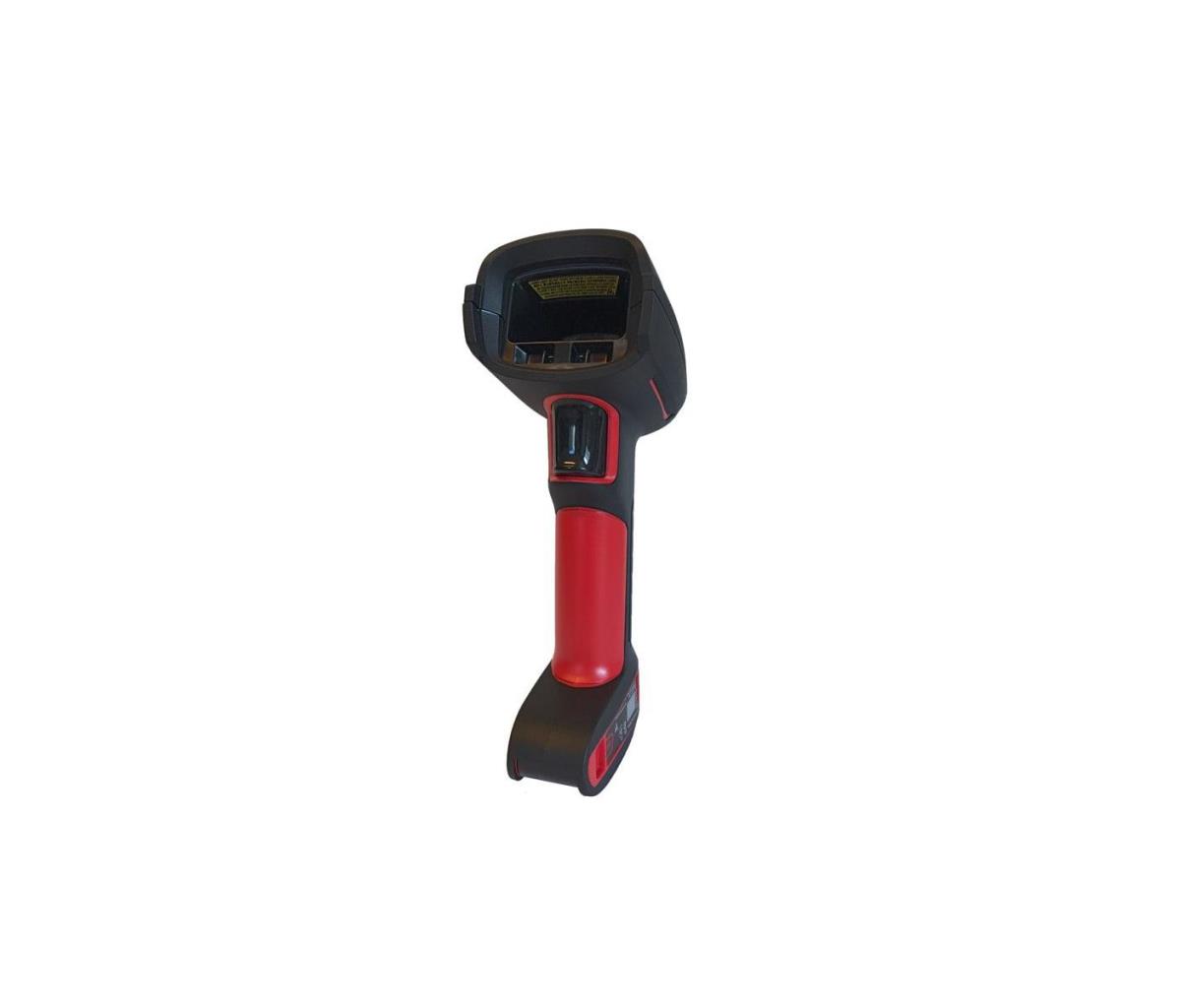

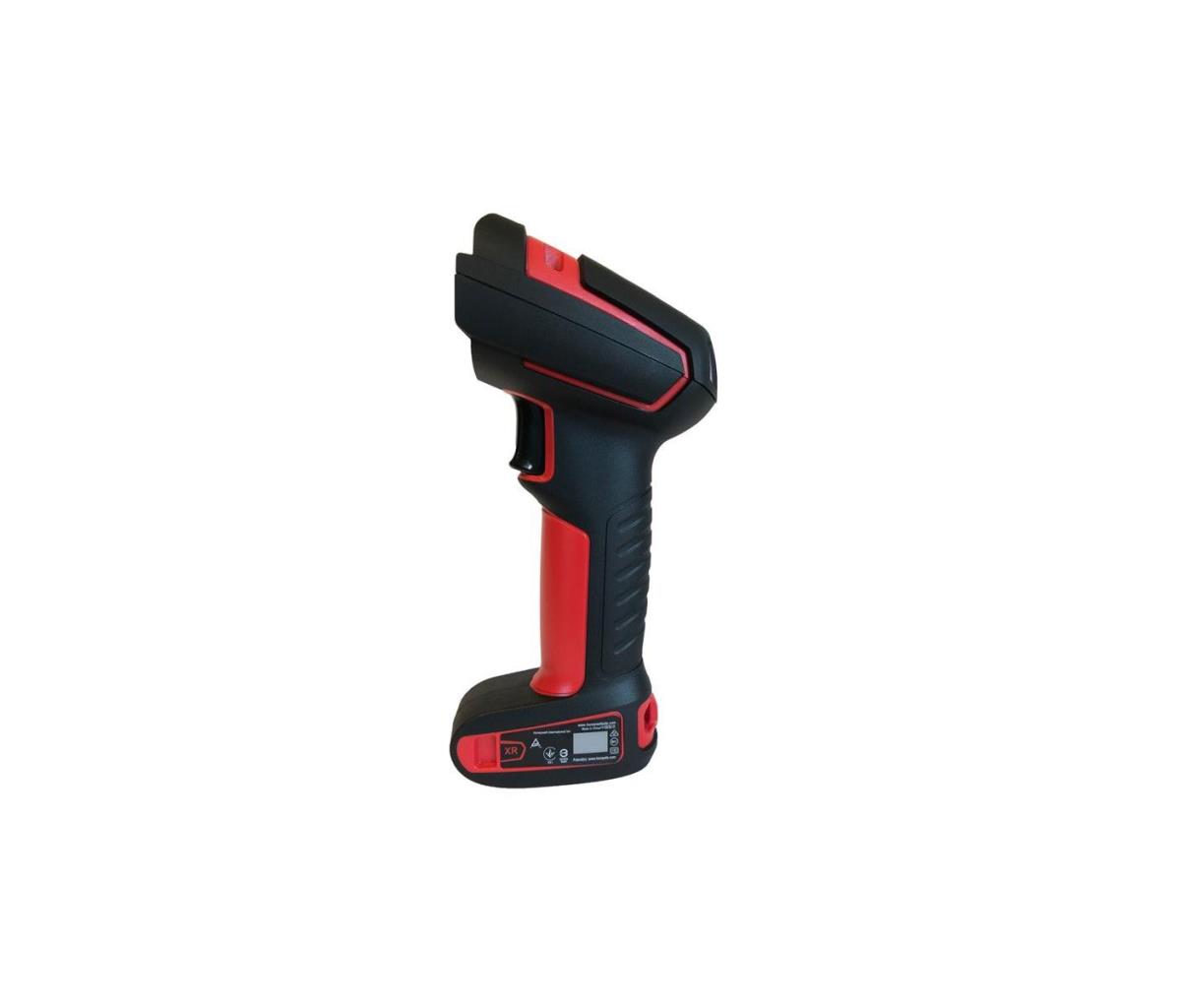

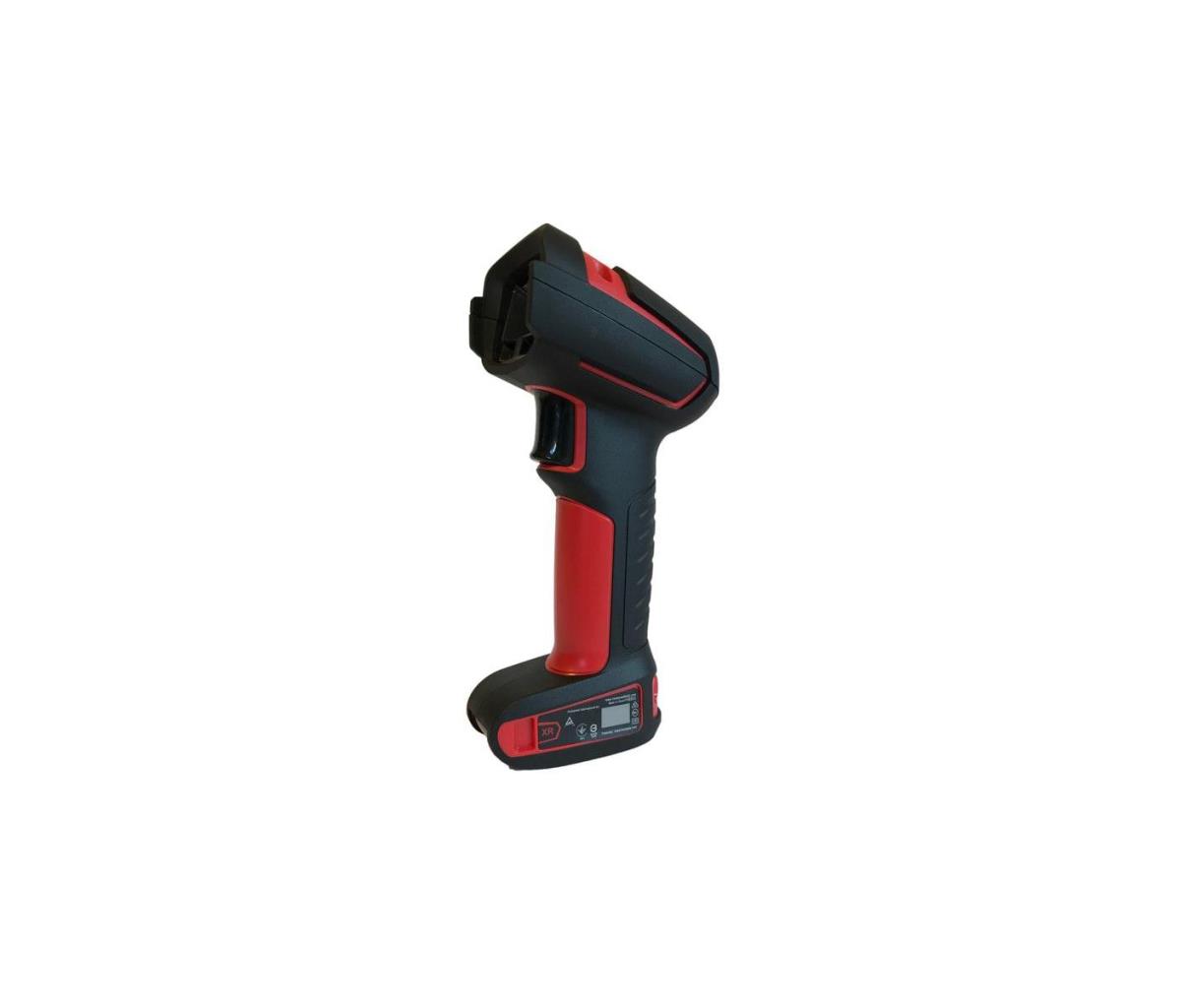

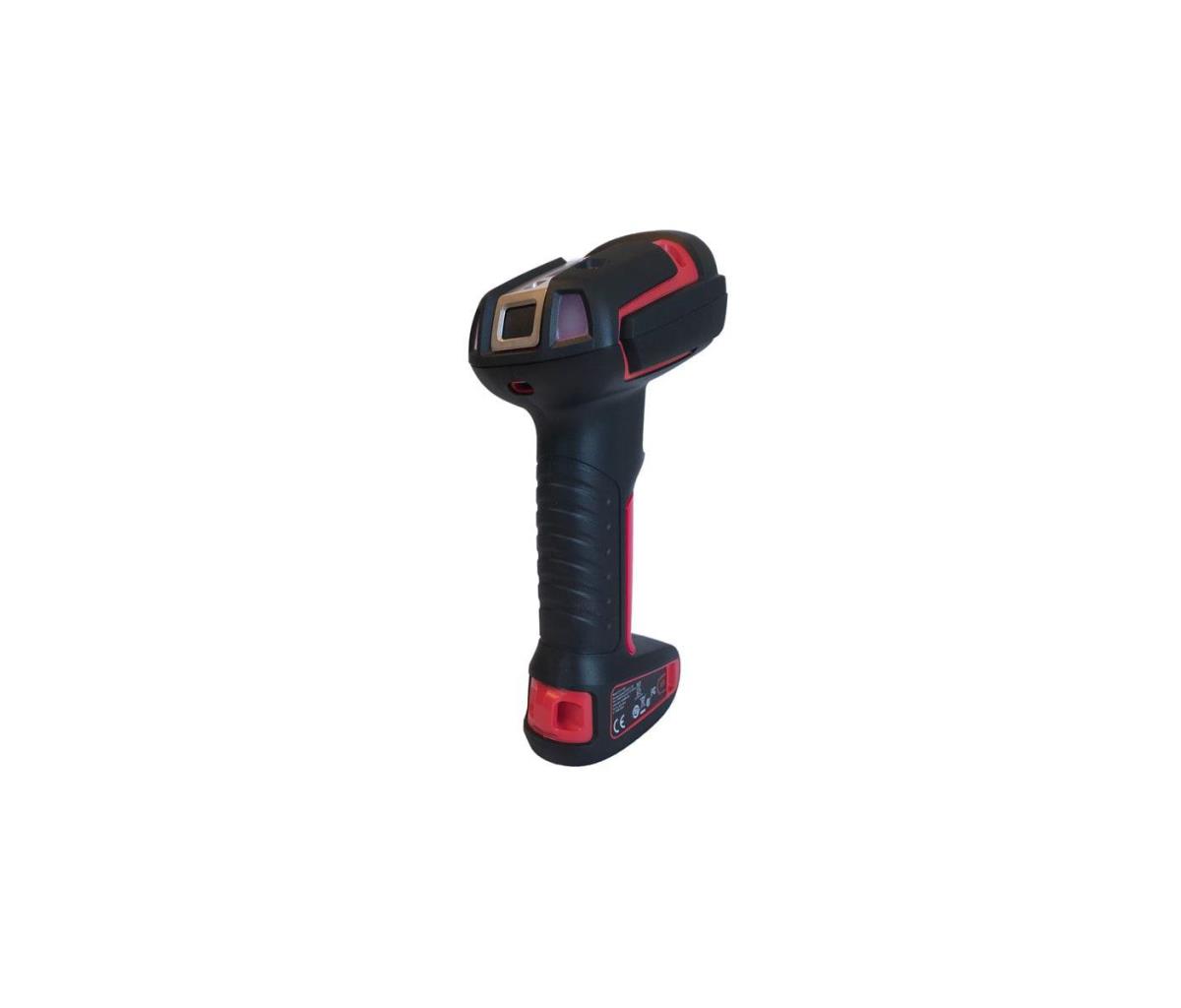

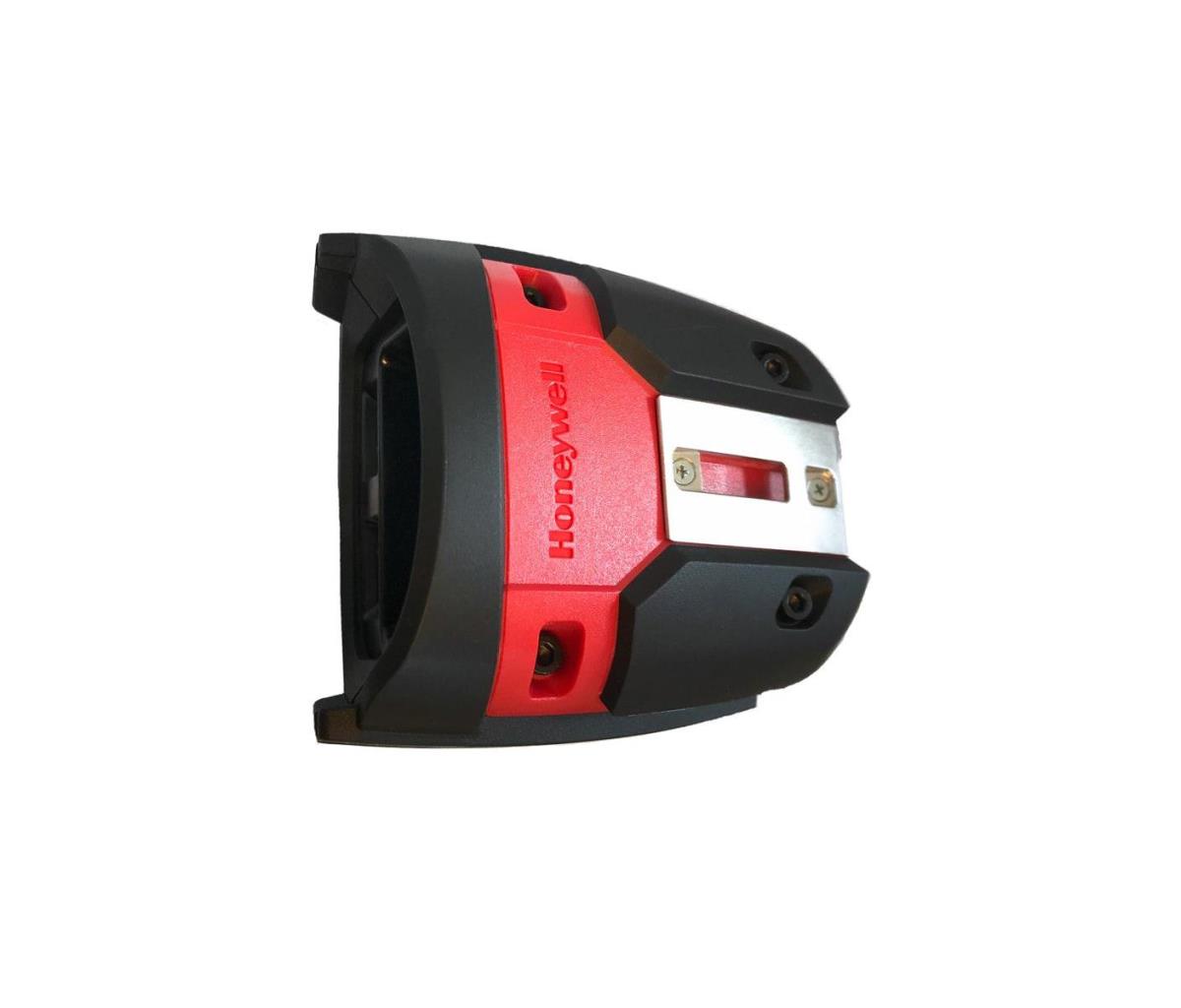

Barcode Scanner Granit Xp 1990isr - Wired - 2 D Imager Sr Focus - Red - Scanner Only

ITCurry #: M8814733 | Article #: 1990ISR-3-R
Price:
384.52 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

Following a legacy of successful deployments, the next generation Granit™ XP scanners expand capabilities and redefine ultra-rugged scanning. With a best-in-class 10’ drop spec, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 meter (3.3 foot) tumble test indicates long term durability with daily knocks and drops from workstation or waist height. A best-in-class 7,000 tumble specification ensures Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment.
Barcodes make data entry faster and more accurate, maximizing productivity in your operations. However, damaged and low quality barcodes can make transactions slow and painful. Bad labels commonly occur in the warehouse/DC and industrial space due to low quality printing or damage during handling. Granit XP, built on Honeywell’s next-generation imaging platform, ensures that otherwise challenging labels do not create a bottleneck in your process. The Granit™ XP 1990iSR model offers high-durability, extreme performance scanning for standard range operations. Created for applications where high speed scanning is needed to maximize productivity, and where durability is non-negotiable for low total cost of ownership, the Granit™ XP 1990iSR scanner offers the optimal solution.
Find out more about what you can accomplish with Granit XP

Scanning
Type Handheld bar code reader
Scanner type 1D/2D
Sensor type LED
Linear (1D) barcodes supported PDF417, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Code 39, Data Matrix, PDF417, QR Code
Optical sensor resolution (W x H) 1280 x 800 pixels
Light levels (direct sunlight) 0 - 100 lx
Pitch reading angle -45 - 45ø
Yaw reading angle -65 - 65ø
Ports & interfaces
Connectivity technology Wired
Standard interfaces Keyboard wedge, RS-232, USB
Performance
International Protection (IP) code IP67
Product colour Black, Red
Power
Power source type DC
Power consumption (typical) 2.35 W
Power consumption (standby) 0.5 W
Input voltage 4 - 5.5 V
Weight & dimensions
Width 76 mm
Depth 192 mm
Height 100 mm
Weight 320 g
Operational conditions
Operating temperature (T-T) -30 - 50 øC
Storage temperature (T-T) -40 - 70 øC
Operating relative humidity (H-H) 0 - 95%
Logistics data
Harmonized System (HS) code 84716070
Warranty
Base Warranty Non Non
