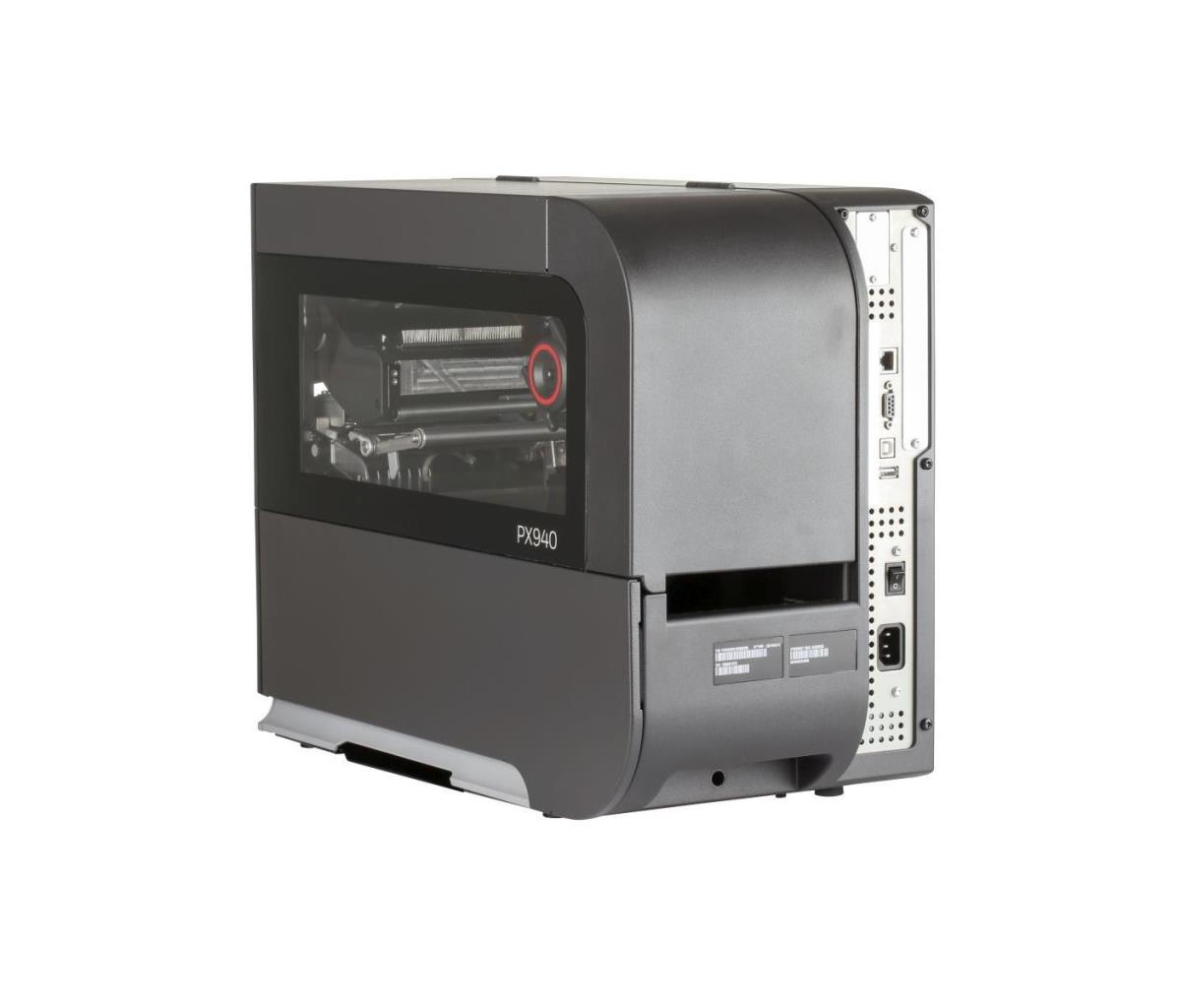

Barcode Label Printer Px940 - 300dpi - 3in Core - Full Touch Display - Dt & Tt - No Verifier - No Power Cord
ITCurry #: M8814840 | Article #: PX940A00100060300-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The PX940 series takes industrial printing to a new level of accuracy and simplicity by providing customers with error-free precision printing, increasing production efficiency and reducing operational costs.
The PX940 family of high-performance industrial printers with integrated label verification technology provides error-free printing. Developed for companies that are subjected to fines levied for non-compliance to regulatory standards, and returned shipments due to unreadable barcodes, the PX940 series prints barcodes that are defect-free and 100% accurate every time. The fully integrated verifier allows for quick setting up even when printing and verifying different labels. With pass/fail and ANSI grades from 1 to 4, bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with little error tolerance. The PX940 printers are suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth®: and smart printing capability, in which users can configure and fine-tune settings without the need for a host computer. With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, and easy printhead and tool-free platen roller replacement, help minimize downtime and maintenance needs. The PX940 printer can support a wide range of media –: including ink-in and ink-out ribbons with one-inch core size –: enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
| Printing | |
| Print technology | Direct thermal / Thermal transfer |
| Colour | No |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Minimum print length | 2.2 m |
| Paper handling | |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Maximum roll diameter | 8 cm |
| Core diameter | 2.5 cm |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| Performance | |
| Page description languages | DP, DPL, XML, ZPL II, IPL |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Design | |
| Product colour | Black |
| Display | LCD |
| Display diagonal | 8.89 cm (3.5") |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 5 - 40 øC |
| Weight & dimensions | |
| Width | 261 mm |
| Depth | 506 mm |
| Height | 398.7 mm |
| Weight | 23 kg |
| Packaging content | |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Warranty | |
| Base Warranty | Non Non |
