Product Information

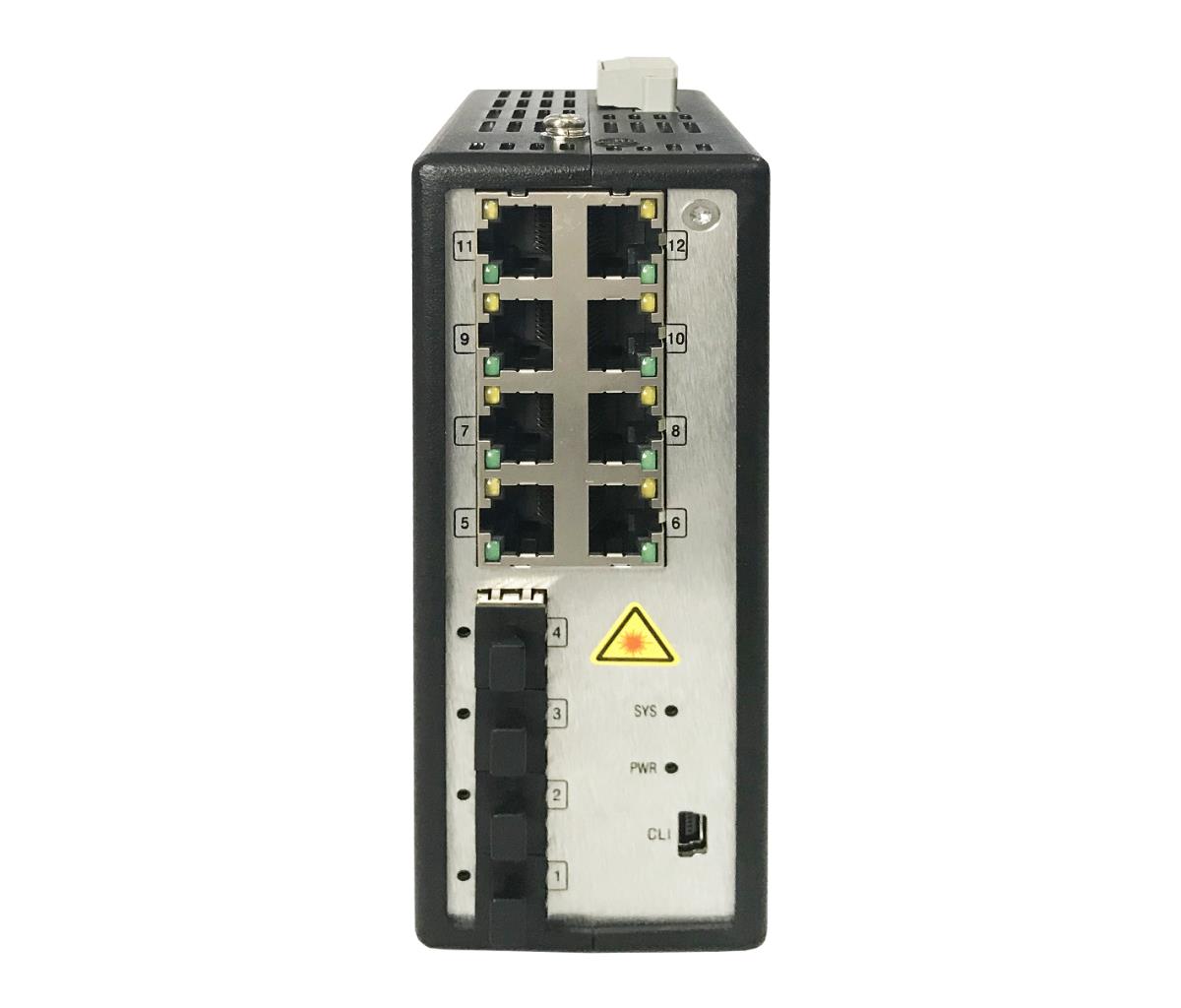

Ultra Series
The Ultra Series switch works as the core device of the whole network and provides powerful routing functions.
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Fiber optic connector | SFP |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 18 Mpps |
| MAC address table | 8000 entries |
| Security | |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication |
| Authentication type | AAA, IEEE 802.1x, RADIUS, TACACS+ |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF |
| IPv4 & IPv6 features | IPv6 Telnet |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Aluminium |
| Performance | |
| Fanless | Yes |
| Power | |
| Power supply included | No |
| DC input voltage | 48 - 57 V |
| Power consumption (max) | 250 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 110 mm |
| Height | 52 mm |
| Weight | 670 g |
| Packaging data | |
| Package weight | 750 g |
| Certificates | |
| Certification | FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 28). UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2038). CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2027). |
| Warranty | |
| Base Warranty | Non Non |
