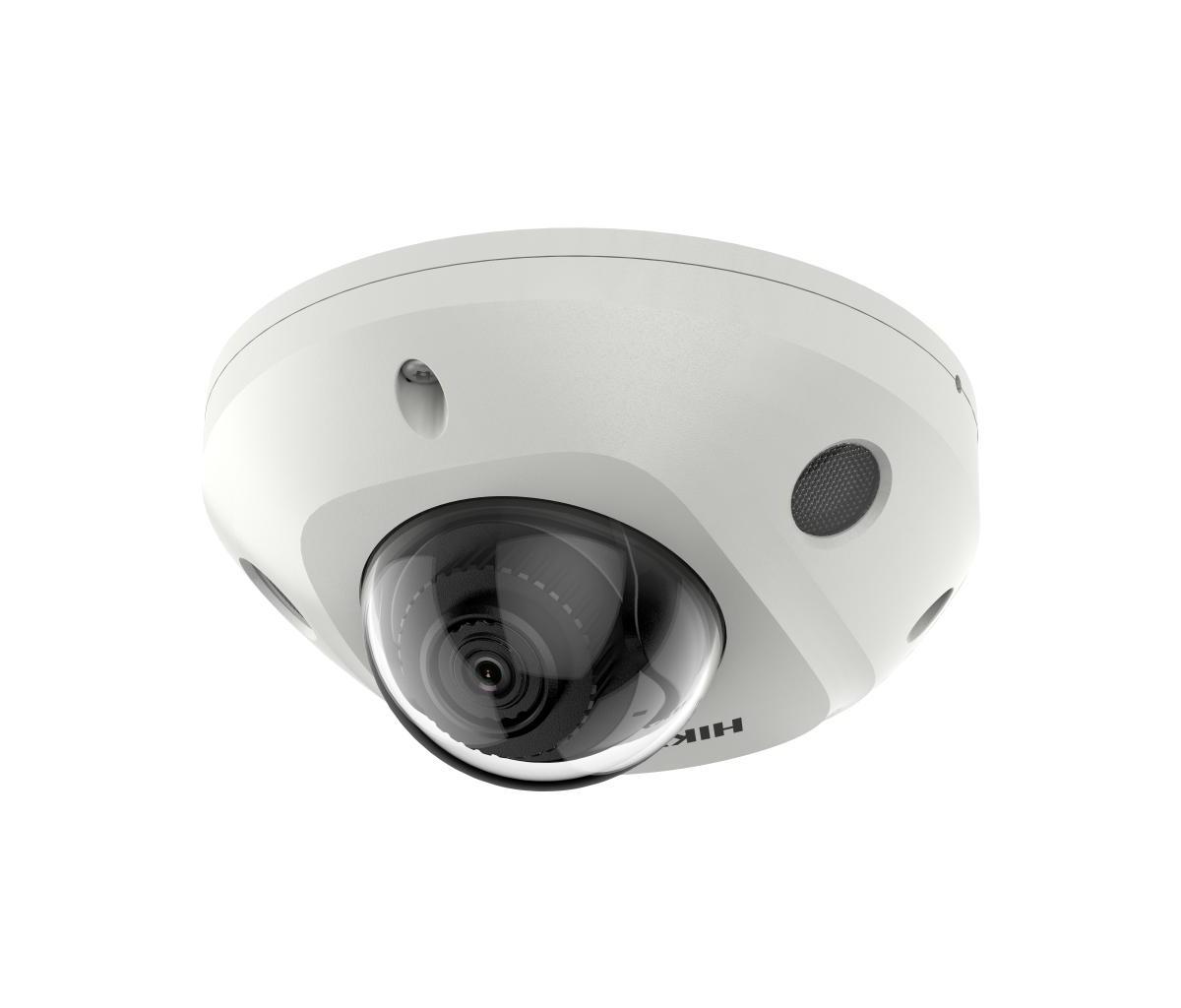

Ipc Ds-2cd2543g2-is(4mm) Easy Ip 2.0+ (h.265+) 4mpix Dome Fixed Lens

ITCurry #: T4498062 | Article #: 2543G2-IS4MM
Flash Sale
Price:
137.86 Inc VAT Ex VAT
Shipping:
Out of Stock. Contact Us!
Email us for assistance
Key Specifications
  • Screen
    Memory
    Weight
    Processor
    Hard Disk
    SSD
    Screen
    Resolution
    Connectivity
    Memory
    Case
    OS
    Screen
    Type
    Speed Black
    Speed Colour
    Model
    Processor Speed
    Form Factor
    Internal / External
    Port Count
    Uplink / media
    Mounting
  • View All Specs

Bundles

Inc VAT Ex VAT
Out of Stock. Contact Us!
Inc VAT Ex VAT
Out of Stock. Contact Us!

Inc VAT Ex VAT
Out of Stock. Contact Us!

Inc VAT Ex VAT
Out of Stock. Contact Us!

Related products

Product Information

Performance
Type IP security camera
Placement supported Indoor & outdoor
Connectivity technology Wired
Wide Dynamic Range (WDR) Yes
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Alarm input/output Yes
Number of languages 33
Languages support Multi
Dynamic range 120 dB
Certification WEEE, Reach, CE-RoHS
Design
Form factor Dome
Mounting type Ceiling/wall
Product colour White
Housing material Aluminium, Plastic
Protection features Water resistant
International Protection (IP) code IP67
IK code IK08
Camera
Minimum illumination 0 lx
Angle of rotation 360ø
Lens viewing angle, horizontal 83.7ø
Lens viewing angle, vertical 43ø
Lens viewing angle, diagonal 100.3ø
Tilt angle range 0 - 75ø
Pan range -30 - 30ø
Camera shutter speed 1/3 - 1/100000 s
Image sensor
Number of sensors 1
Optical sensor size 25.4 / 3 mm (1 / 3")
Progressive scan Yes
Sensor type CMOS
Lens system
Number of lenses 1
Detect distance 85 m
Observe distance 34 m
Recognize distance 17 m
Maximum aperture number 1.6
Identify distance 9 m
Fixed focal length 4 mm
Night vision
Night vision Yes
Night vision distance 30 m
LED type IR/White
Infra-red wavelength 850 nm
Video
Maximum resolution 2688 x 1520 pixels
Total megapixels 4 MP
Video compression formats H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Frame rate 30 fps
Video streaming Yes
Noise reduction Yes
Noise reduction technology 3D noise reduction
Gain control type Auto
Image quality adjustment Brightness, Contrast, Saturation, Sharpness
Privacy masking Yes
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate 32 Kbps - 8 Mbps
Back Light Compensation (BLC) Yes
Highlight Compensation (HLC) Yes
Region of Interest (ROI) encoding Yes
Audio
Audio input channels 1.0 channels
Audio output channels 1.0 channels
Audio formats supported AAC, MP3
Signal-to-Noise Ratio (SNR) 52 dB
Built-in microphone Yes
Voice codecs G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Bit rate range 8 - 320 Kbit/s
Sample rates 8 - 48 kHz
Network
Ethernet LAN Yes
Ethernet interface type Fast Ethernet
Supported network protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Wi-Fi No
Bluetooth No
Number of users 32 user(s)
User access level Administrator, Operator, User
Quality of Service (QoS) support Yes
Client interoperability iVMS-4200, Hik-Connect, Hik-Central
Live view Yes
Number of simultaneous live view channels 6 channels
Storage
Built-in HDD No
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size 512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Terminal block port Yes
Security
Alarm input channels 1
Alarm output channels 1
Password protection Yes
Video motion detection Yes
Active tampering alarm Yes
IP address filtering Yes
HTTPS encryption Yes
Privacy protection Yes
Intelligent Video Surveillance (IVS) system features Face detection
Anti-flicker Yes
Heartbeat Yes
Password reset via email Yes
Pixel counter Yes
Audit log Yes
Automatic Network Replenishment (ANR) Yes
Digest authentication Yes
Network access storage (NAS) Yes
Management features
Web-based management Yes
Reset button Yes
Behavior analysis Intrusion detection, Line crossing detection
Power
Power source type DC, PoE
Power consumption (max) 5.5 W
Power consumption (Power over Ethernet (PoE)) 6.5 W
DC output voltage 12
DC output current 0.45 A
Operational conditions
Operating temperature (T-T) -30 - 60 øC
Storage temperature (T-T) -30 - 60 øC
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Weight & dimensions
Height 57.4 mm
Diameter 11 cm
Weight 380 g
Packaging data
Package width 134 mm
Package depth 134 mm
Package height 108 mm
Package weight 615 g
Sustainability
Sustainability compliance Yes
Compliance certificates CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UL, WEEE
Packaging content
Number of cameras 1
Technical details
Iris Yes
Lens mount interface M12
Output impedance 100 O
