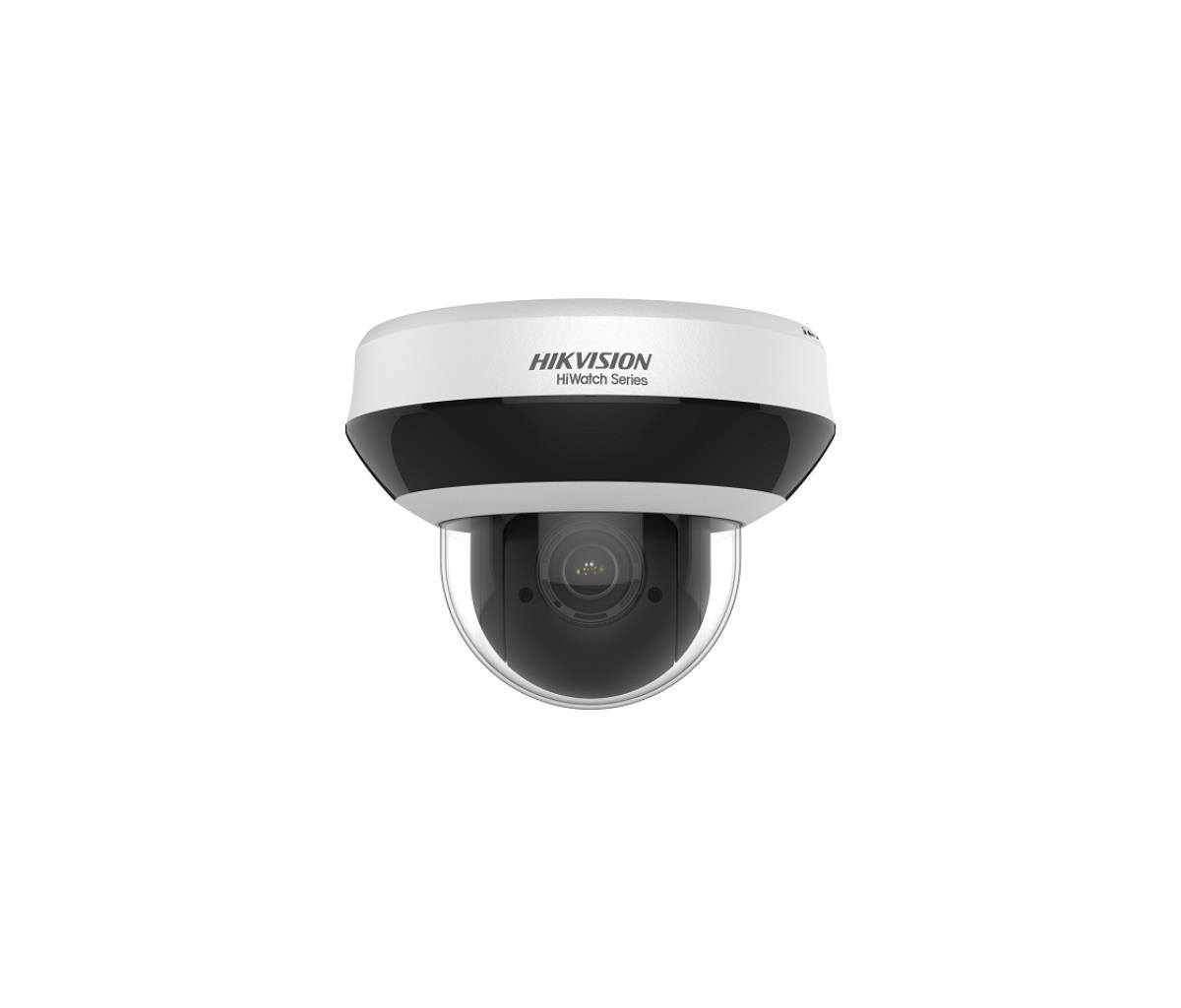

Hwp-n2404ih-de3(o-std)(f) Network Pt Series 4mpix Powered By Darkfighter
ITCurry #: T4498014 | Article #: 327000408-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Why Hikvision PTZ cameras?
Hikvision pan-tilt-zoom (PTZ) cameras help users get wide-area coverage and zoom in for further detail in case of security events with a single camera. They enable users to view from any angle, for any detail, at any moment.
View from any angle
Hikvision PTZ cameras cover expansive areas and detect events in a flash.
- Panning & tilting – Left and right, up and down for up to 360°
- Auto tracking – To autonomously track preset types of objects
- Panoramic views – Via image stitching of TandemVu PTZs
Get every detail in sight
Hikvision PTZ cameras guarantee the capture of every single detail in view.
- Close-up views – By zooming in from extended distances
- AI analytics – To extract object features accurately
- Smart linkage – Between various lenses of TandemVu PTZs to track objects and details
At disposal at any moment
Hikvision PTZ cameras stay vigilant and promise great performance 24/7.
- Low-light imaging – For vivid views with rich color even in poor light
- Weather resistance – To operate in any weather or environment
- Live Guard – To ward off trespassers with sound and light, around the clock
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Remote viewing | Yes |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
| Camera | |
| Minimum illumination | 0.01 lx |
| Angle of rotation | 330ø |
| Lens viewing angle, horizontal | 100 33ø |
| Lens viewing angle, vertical | 53 - 18ø |
| Lens viewing angle, diagonal | 119 - 37.5ø |
| Tilt angle range | 0 - 90ø |
| Tilt speed | 100 ø/sec |
| Tilt preset speed | 100 ø/sec |
| Pan range | 0 - 330ø |
| Pan speed | 100 ø/sec |
| Pan preset speed | 100 ø/sec |
| White balance | ATW, Auto, Indoor, Manual, Outdoor |
| Camera shutter speed | 1/1 - 1/30000 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 16x |
| Digital zoom | 4x |
| Number of lenses | 1 |
| Focal length range | 2.8 - 12 mm |
| Auto focus | Yes |
| Focus | Motorized/Manual |
| Maximum aperture number | 2.7 |
| Minimum aperture number | 1.6 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Video | |
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Privacy masking | Yes |
| Bit rate | 32 Kbps - 16384 Kbps |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Audio | |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio codecs | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Network | |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Wi-Fi | Yes |
| Bluetooth | No |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Quality of Service (QoS) support | Yes |
| Live view | Yes |
| Number of simultaneous live view channels | 20 channels |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Password protection type | User |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Security algorithms | SNMP |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| Management features | |
| Web browser | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 12 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Height | 101.7 mm |
| Diameter | 13.1 cm |
| Weight | 530 g |
| Packaging content | |
| Number of cameras | 1 |
| Warranty | |
| Base Warranty | Non Non |
