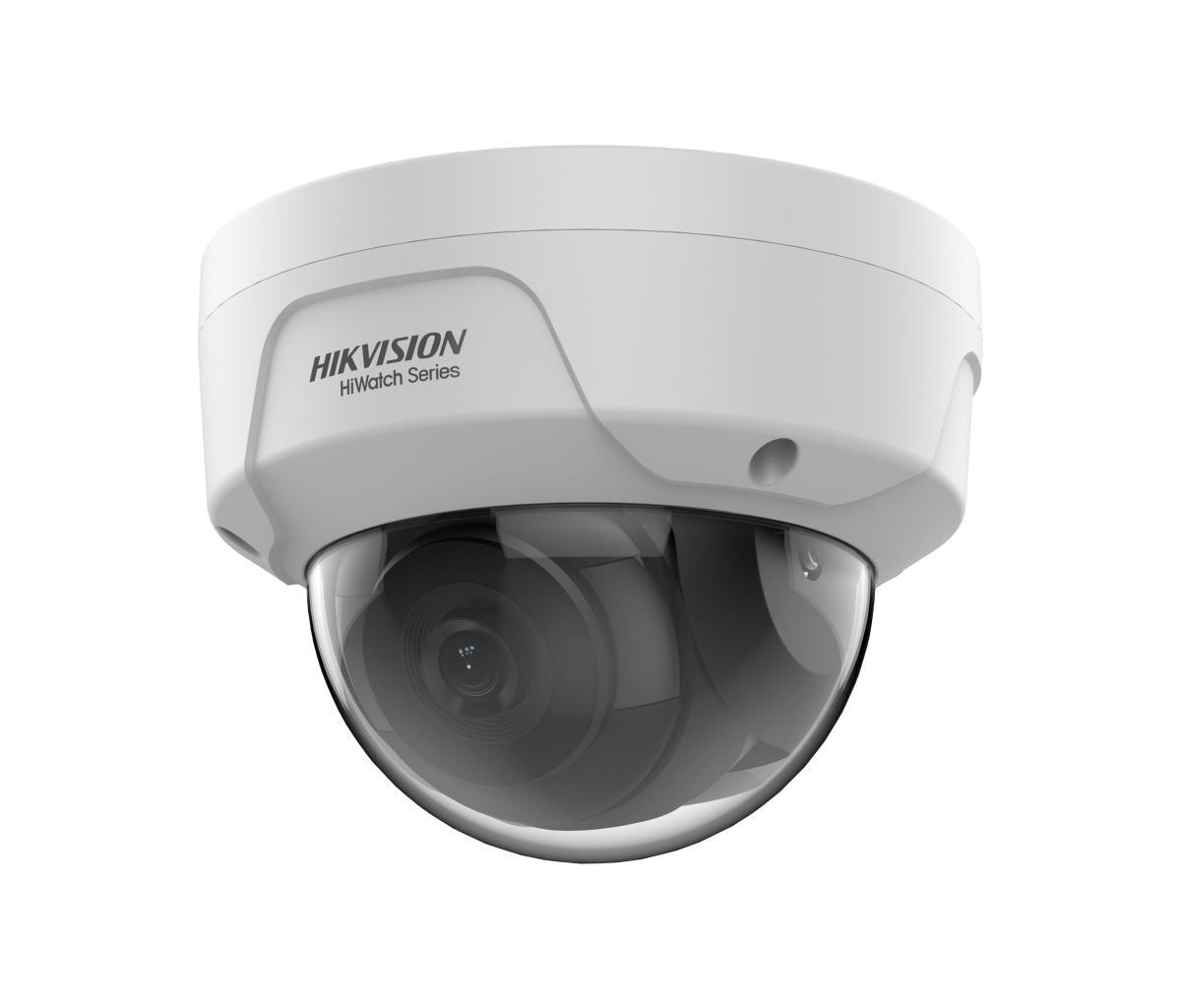

Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond.
By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.
Performance | |
Type | IP security camera |
Placement supported | Indoor & outdoor |
Connectivity technology | Wired |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Infrared (IR) cut-off filter | Yes |
Number of languages | 2 |
Languages support | English, Ukrainian |
Dynamic range | 120 dB |
Design | |
Form factor | Dome |
Mounting type | Ceiling |
Product colour | White |
Housing material | Plastic, Metal |
International Protection (IP) code | IP67 |
IK code | IK10 |
Camera | |
Minimum illumination | 0 lx |
Lens viewing angle, horizontal | 108ø |
Lens viewing angle, vertical | 60ø |
Lens viewing angle, diagonal | 127ø |
Tilt angle range | 0 - 75ø |
Pan range | 0 - 355ø |
Camera shutter speed | 1/3 - 1/100000 s |
Number of Privacy masking areas | 4 |
Image sensor | |
Number of sensors | 1 |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Progressive scan | Yes |
Sensor type | CMOS |
Lens system | |
Number of lenses | 1 |
Detect distance | 81 m |
Observe distance | 32 m |
Recognize distance | 16 m |
Fixed focus | Yes |
Maximum aperture number | 2 |
Identify distance | 8 m |
Fixed focal length | 2.8 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
LED type | IR |
Infra-red wavelength | 850 nm |
Video | |
Maximum resolution | 3840 x 2160 pixels |
Total megapixels | 8 MP |
Video formats supported | H.264, H.264+, H.265, H.265+ |
Video compression formats | H.264, H.264+, H.265, H.265+ |
Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
Supported video modes | 360p, 480p, 720p, 1080p, 1440p, 2160p |
Video recording | Yes |
Frame rate | 15 fps |
Video streaming | Yes |
Noise reduction | Yes |
Noise reduction technology | 3D noise reduction |
Image quality adjustment | Brightness, Contrast, Sharpness |
Privacy masking | Yes |
Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
Bit rate | 32 Kbps - 16 Mbps |
Back Light Compensation (BLC) | Yes |
Highlight Compensation (HLC) | Yes |
Region of Interest (ROI) encoding | Yes |
Smart IR | Yes |
Audio | |
Signal-to-Noise Ratio (SNR) | 52 dB |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3af |
Supported network protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP |
Number of users | 32 user(s) |
User access level | Administrator, Operator, User |
Quality of Service (QoS) support | Yes |
Live view | Yes |
Number of simultaneous live view channels | 6 channels |
Storage | |
Built-in HDD | No |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Security | |
Password protection | Yes |
Video motion detection | Yes |
Privacy protection | Yes |
Anti-flicker | Yes |
Heartbeat | Yes |
Mirror | Yes |
Digital watermark | Yes |
Password reset via email | Yes |
Human and vehicle targets classification | Yes |
Digest authentication | Yes |
Management features | |
Web-based management | Yes |
Web browser | Yes |
Management software | iVMS-4200, Hik-Connect |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 5 W |
Power consumption (Power over Ethernet (PoE)) | 6.5 W |
DC output voltage | 12 |
DC output current | 0.4 A |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 øC |
Storage temperature (T-T) | -30 - 60 øC |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
Height | 84.7 mm |
Diameter | 11.1 cm |
Weight | 520 g |
Packaging data | |
Package width | 134 mm |
Package depth | 108 mm |
Package height | 134 mm |
Package weight | 720 g |
Packaging content | |
Number of cameras | 1 |
Manual | Yes |
Warranty | |
Base Warranty | Non Non |
