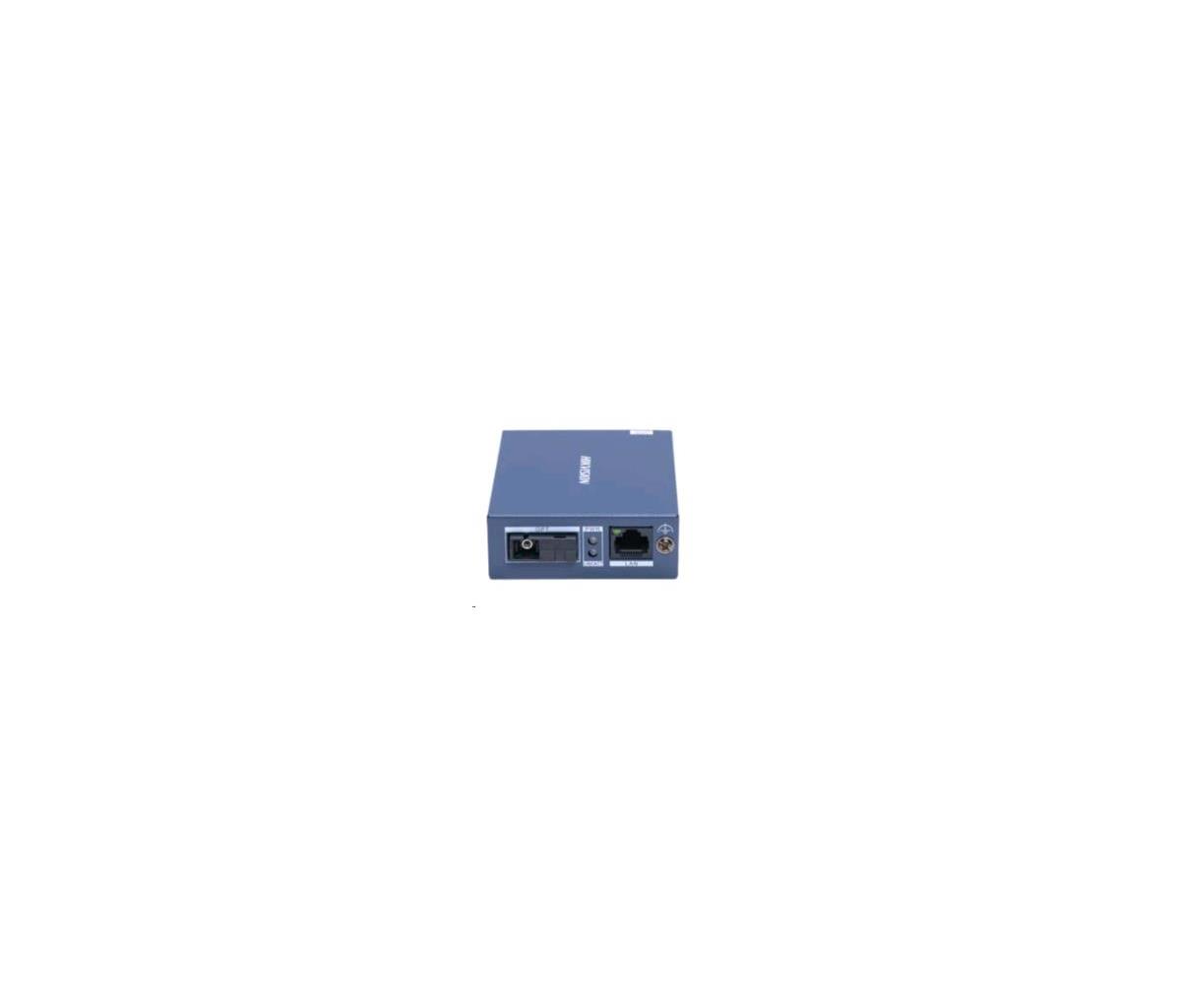

Ds-3d501r-3

• Plug-and-play and fast forwarding, achieving high-speed, lossless, and up to 3 km transmission of data signals with no configuration required
• 4 kV lightning protection design with high reliability
• Quasi-industrial-grade design with an operating temperature range of -20 °C to 60 °C
• Wavelength division multiplexing and single-fiber data forwarding, saving cabling costs
• Solid and high-strength industrial-grade metal shell with stronger heat dissipation capability
• 1 x 10/100/1000 Mbps RJ45 port and 1 x 1000 Mbps SC fiber optical port

General

• Shell : Metal
• Net Weight : 0.13 kg (0.28 lb)
• Gross Weight : 0.23 kg (0.51 lb)
• Dimensions (W × H × D) : 71.6 mm × 26.1 mm × 94.1 mm (2.81'' × 1.03'' × 3.70'')
• Operating Temperature : -20 °C to 60 °C (-4 °F to 140 °F) Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
•  Operating Humidity : 5% to 95% (no condensation)
• Relative Humidity : 5% to 95% (no condensation)
• Power Supply : 5VDC, 0.6A
• Max. Power Consumption  : 3 W
• Power Consumption in Idle : 2 W
• Installation Mode : Desk-Mounted
• Surge Protection : 4 kV

 Network Parameters

• Ports : 1 x 10/100/1000 Mbps RJ45 port and 1 x 1000 Mbps SC fiber optical port
• Switching Capacity : 4 Gbps
• Packet Forwarding Rate : 2.98 Mpps

Optical Module Parameters

• Optical Interface :SC
• Fiber Type :Single-mode bidirectional fiber
• Transmission Distance : 3 km
• Wavelength :Tx1550 nm/Rx1310 nm
• Transmit Power : -12 ~ -4 dBm
• Receiver Sensitivity : ≤ -22 dB

Approval

• EMC : CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• Safety : CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition))
• Chemistry : Reach (Regulation (EC) No.1907/2006)
