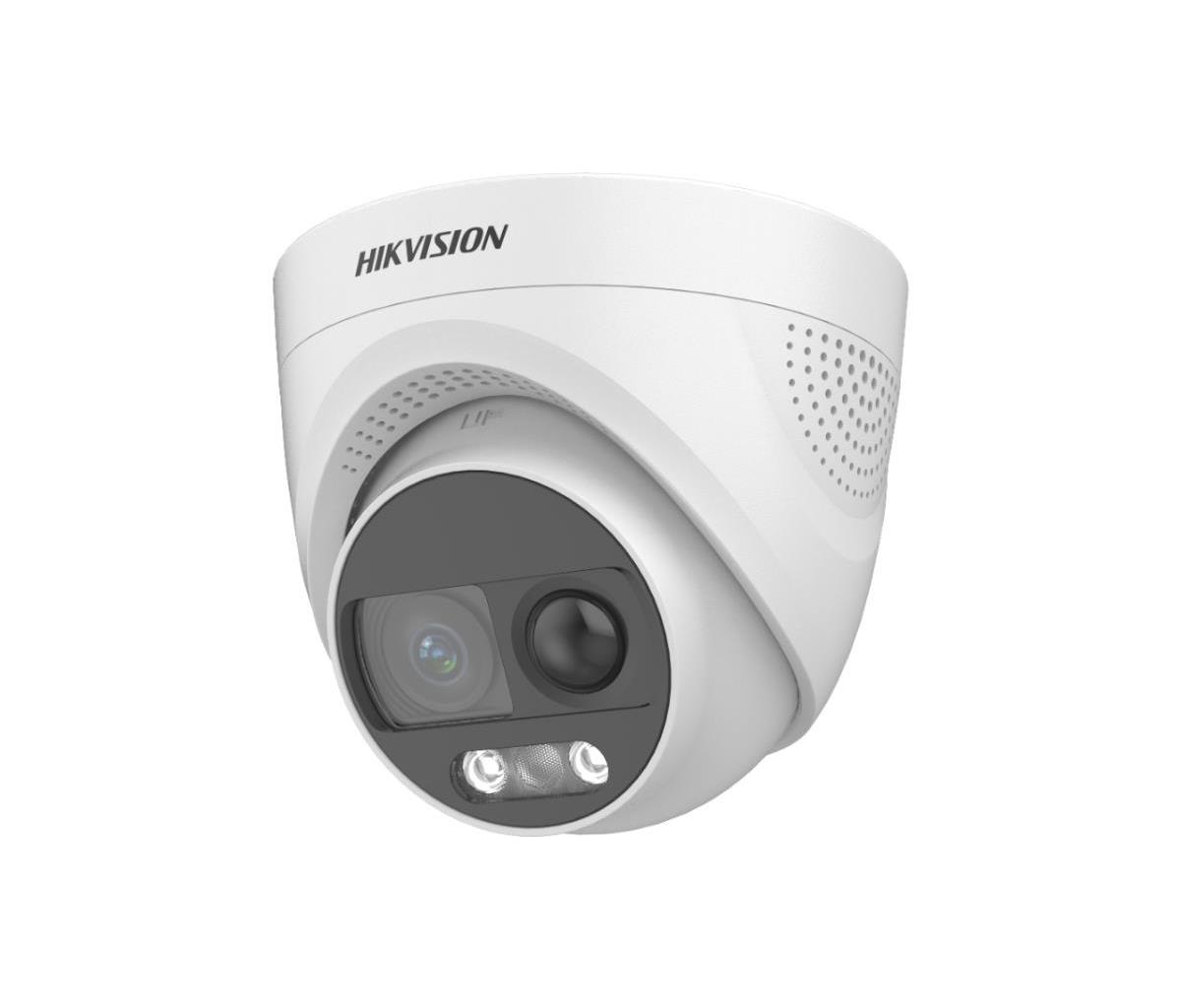

Ds-2ce72kf3t-pirxo(3.6mm)
ITCurry #: T4497762 | Article #: 300615396-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Unlike conventional cameras that can only serve the monitoring purpose, a PIR camera, by virtue of the built-in PIR sensor, detects passive infrared radiation emitted from heat sources. This function then further supports deterrence measures enabled by whether connecting to external alarm devices or built-in components, for example a siren or light.
Hikvision offers a wide selection of PIR cameras ranging from 2 MP to 5 MP, available in both bullet and dome forms. These cameras not only detect, but also help deter would-be intruders by triggering visual or audio alarms. With up to a 11-meter detection distance, the PIR camera covers sufficient areas no matter you need it for an open space, for example a warehouse, or a confined area like the entrance of a store.
Together with the DVR’s Motion Detection feature, the PIR solution helps to provide timely intrusion detection, immediate response, clear evidence, as well as accurate alarms for security system. Hikvision’s PIR cameras are your ideal choice for application scenarios such as home, office, warehouse, small business, and more.
| Performance | |
| Type | CCTV security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Built-in light | Yes |
| Number of languages | 1 |
| Languages support | English |
| Dynamic range | 130 dB |
| Design | |
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | White |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP67 |
| Camera | |
| Minimum illumination | 0 lx |
| Angle of rotation | 360ø |
| Lens viewing angle, horizontal | 92ø |
| Lens viewing angle, vertical | 45ø |
| Lens viewing angle, diagonal | 111ø |
| Tilt angle range | 0 - 75ø |
| Pan range | 0 - 360ø |
| White balance | Auto, Manual |
| Camera shutter speed | 1/25 - 1/50000, 1/30 - 1/50000 s |
| Number of Privacy masking areas | 4 |
| Image sensor | |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Fixed focal length | 3.6 mm |
| Night vision | |
| Night vision | Yes |
| B/W night vision distance | 20 m |
| Video | |
| Maximum resolution | 2960 x 1665 pixels |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Sharpness |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
| Storage | |
| Built-in HDD | No |
| Ports & interfaces | |
| BNC output ports | 1 |
| Security | |
| Alarm input channels | 1 |
| Video motion detection | Yes |
| Privacy protection | Yes |
| Power | |
| Power source type | DC |
| Power consumption (max) | 7.7 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Height | 91.6 mm |
| Diameter | 11 cm |
| Weight | 416 g |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Integrated PIR sensor | Yes |
| Lens mount interface | M16 |
| Warranty | |
| Base Warranty | Non Non |
