Product Information

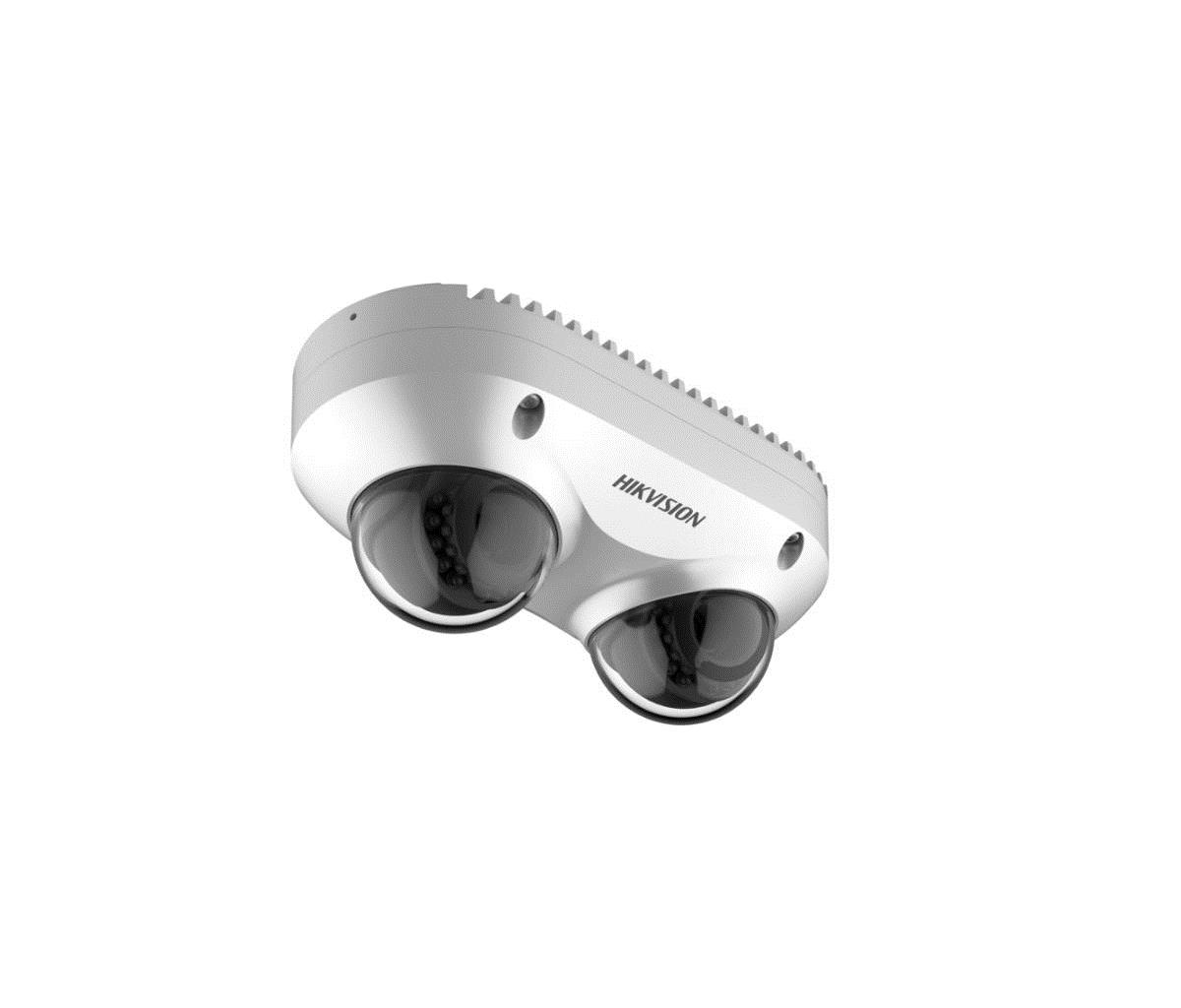

Panoramic security with a single camera
Deploying video-security systems for expansive indoor and outdoor areas such as lobbies, plazas, and business parks, has been a complex task. It usually requires multiple cameras for complete monitoring of the entire area. A panoramic IP camera utilizes advanced optics and technology to offer a very wide view in various directions, while traditional cameras feature a limited field of view. The panoramic view can be achieved using a single sensor or an array of sensors (and lenses).
Hikvision panoramic cameras offer an ideal solution for diverse environments, delivering expansive coverage with just one camera. With a diverse selection of camera models available, users can choose the perfect fit for their needs. Some models offer 180-degree or 360-degree stitched panoramas, while a few other models provide multidirectional views from separate video channels. Additionally, there are certain models that have an integrated PTZ lens, allowing users to zoom in on details. Check out our lineup of panoramic security cameras with unique lens and sensor options, including 360-degree and 180-degree panoramic cameras, and start exploring comprehensive security with us today!
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Remote viewing | Yes |
| Number of languages | 33 |
| Languages support | Multi |
| Dynamic range | 120 dB |
| Certification | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Design | |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Camera | |
| Minimum illumination | 0 lx |
| Angle of rotation | 355ø |
| Lens viewing angle, horizontal | 98.2ø |
| Lens viewing angle, vertical | 54.2ø |
| Lens viewing angle, diagonal | 114.6ø |
| Tilt angle range | 0 - 60ø |
| Pan range | -90 - 90ø |
| Camera shutter speed | 1 - 1/100000 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 2 |
| Detect distance | 61.1 m |
| Observe distance | 24.2 m |
| Recognize distance | 12.2 m |
| Maximum aperture number | 1.6 |
| Identify distance | 6.1 m |
| Minimum aperture number | 1.2 |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520 |
| Supported video modes | 480p, 576p, 720p, 1080p, 1440p, 1520p |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Audio | |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio codecs | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Built-in microphone | Yes |
| Bit rate range | 16 - 64 Kbit/s |
| Sample rates | 8 - 48 kHz |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Live view | Yes |
| Number of simultaneous live view channels | 20 channels |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Security | |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | 802.1x RADIUS, EAP-LEAP, EAP-MD5, EAP-TLS |
| HTTPS encryption | Yes |
| Heartbeat | Yes |
| Mirror | Yes |
| Digital watermark | Yes |
| Password reset via email | Yes |
| Flash log | Yes |
| Digest authentication | Yes |
| Management features | |
| Web browser | Yes |
| Reset button | Yes |
| Behavior analysis | Audio exception detection, Scene change detection |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 7 W |
| Power consumption (Power over Ethernet (PoE)) | 9 W |
| DC output voltage | 12 |
| DC output current | 0.58 A |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 øC |
| Storage temperature (T-T) | -40 - 60 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 164.3 mm |
| Depth | 84.6 mm |
| Height | 67.4 mm |
| Weight | 770 g |
| Packaging data | |
| Package width | 227 mm |
| Package depth | 172 mm |
| Package height | 125 mm |
| Package weight | 1.05 kg |
| Packaging content | |
| Number of cameras | 1 |
| Warranty | |
| Base Warranty | Non Non |
