Product Information

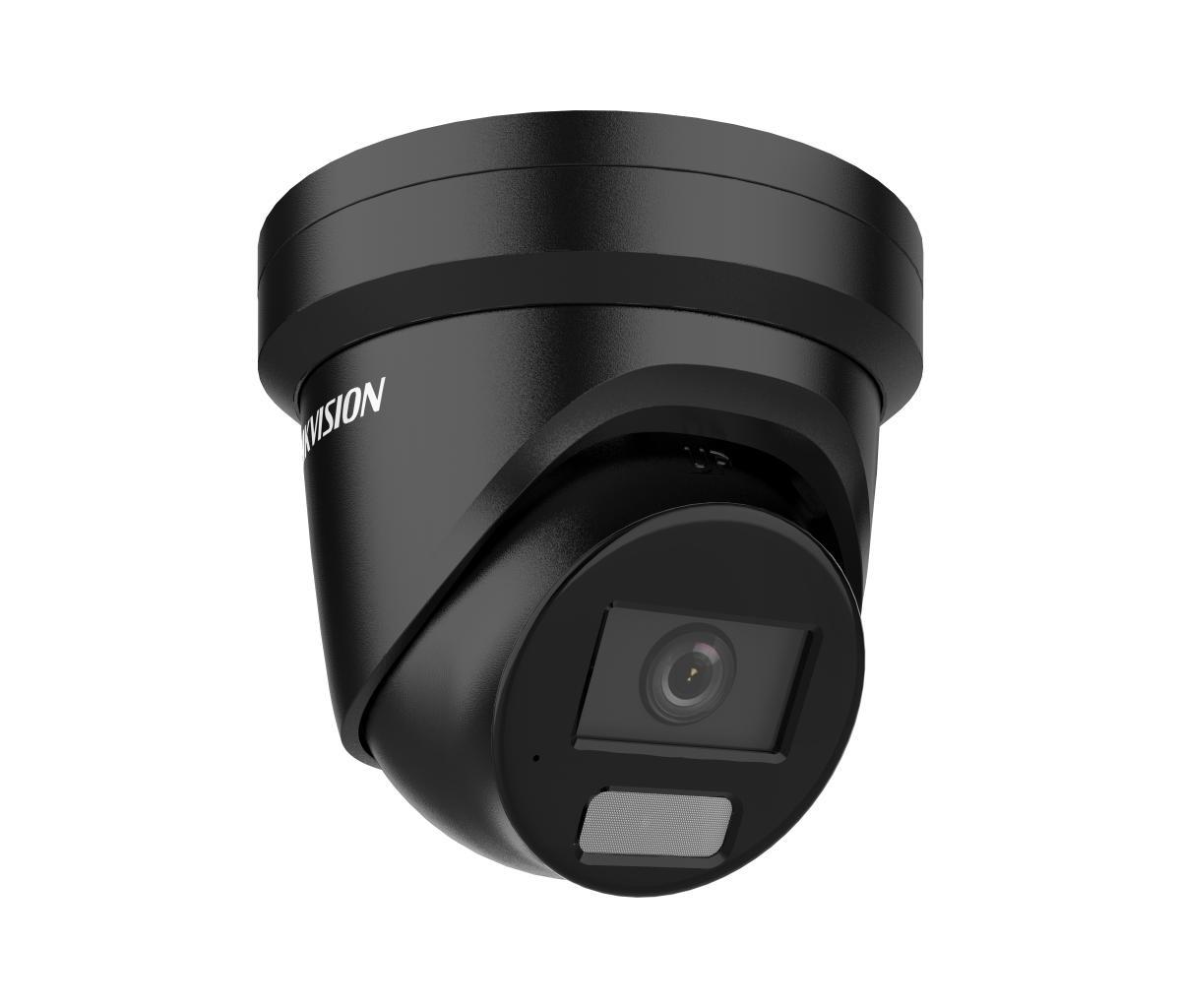

4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond.
By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Built-in light | Yes |
| Number of languages | 33 |
| Languages support | Multi |
| Dynamic range | 130 dB |
| Design | |
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | Black |
| Housing material | Metal |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP67 |
| Camera | |
| Minimum illumination | 0 lx |
| Angle of rotation | 360ø |
| Lens viewing angle, horizontal | 111.1ø |
| Lens viewing angle, vertical | 57.6ø |
| Lens viewing angle, diagonal | 138.5ø |
| Tilt angle range | 0 - 75ø |
| Pan range | 0 - 360ø |
| Camera shutter speed | 1/3 - 1/100000 s |
| Number of Privacy masking areas | 4 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Detect distance | 61 m |
| Observe distance | 24 m |
| Recognize distance | 12 m |
| Fixed focus | Yes |
| Maximum aperture number | 1 |
| Identify distance | 6 m |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR/White |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Audio | |
| Audio formats supported | AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Built-in microphone | Yes |
| Bit rate range | 8 - 320 Kbit/s |
| Sample rates | 8 - 48 kHz |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Wi-Fi | No |
| Bluetooth | No |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Quality of Service (QoS) support | Yes |
| Client interoperability | iVMS-4200, Hik-Connect, Hik-Central |
| Live view | Yes |
| Number of simultaneous live view channels | 6 channels |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | EAP-LEAP, EAP-MD5, EAP-TLS |
| HTTPS encryption | Yes |
| Privacy protection | Yes |
| Heartbeat | Yes |
| Mirror | Yes |
| Digital watermark | Yes |
| Password reset via email | Yes |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Audit log | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 5 W |
| Power consumption (Power over Ethernet (PoE)) | 6 W |
| DC output voltage | 12 |
| DC output current | 0.41 A |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 øC |
| Storage temperature (T-T) | -30 - 60 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 115.4 mm |
| Diameter | 13.8 cm |
| Weight | 770 g |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 170 mm |
| Package height | 160 mm |
| Package weight | 1.04 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | CB, CE, KC, RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Iris | Yes |
| Lens mount interface | M16 |
| Warranty | |
| Base Warranty | Non Non |
