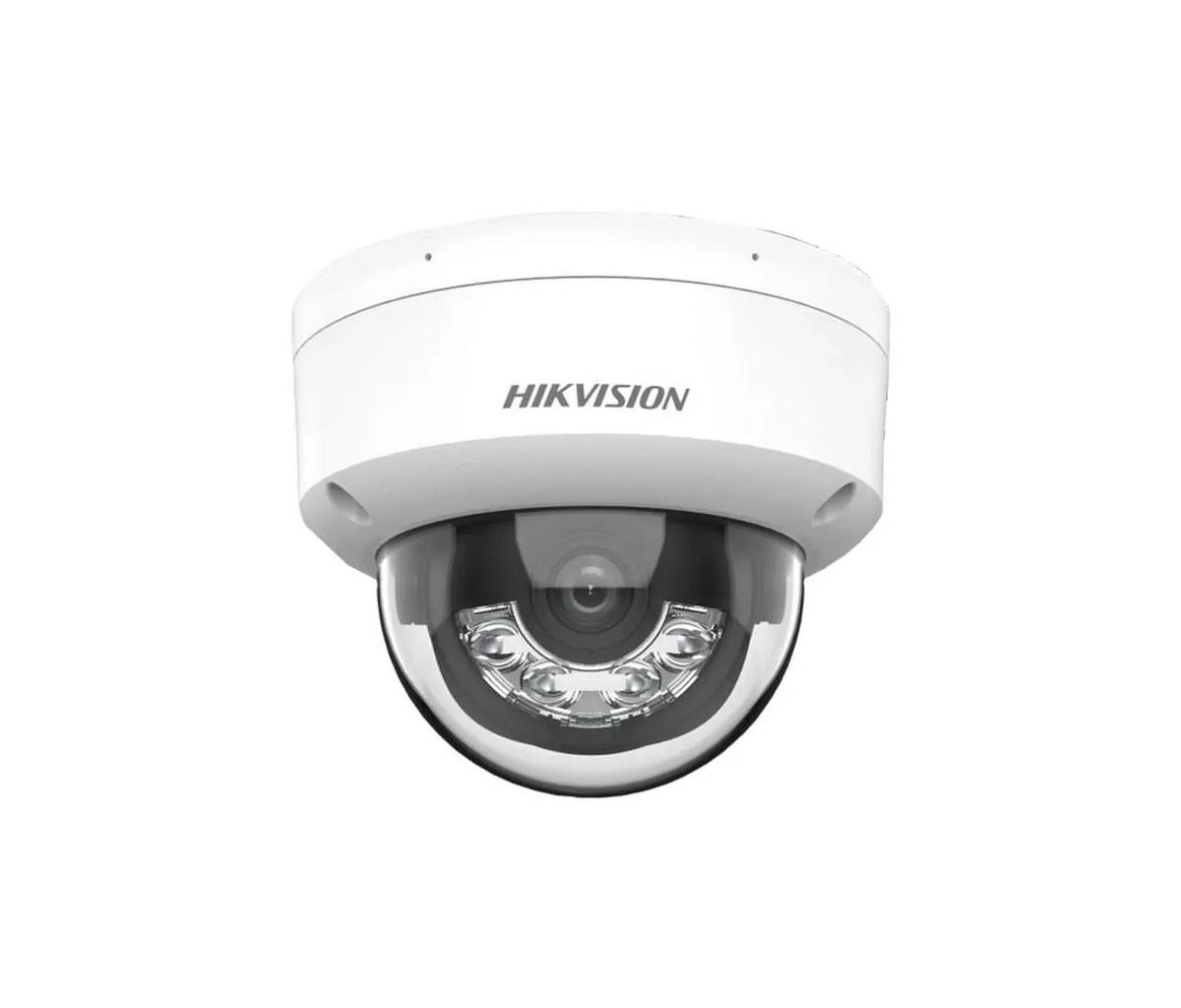

Ds-2cd2143g2-lis2u(2.8mm)
ITCurry #: T4498996 | Article #: 311325969Flash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
157.77
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information
Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond.
By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.
Pro Series (All)
Get the smart features and imaging performance you need at a great value
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Number of languages | 33 |
| Languages support | Multi |
| Dynamic range | 120 dB |
| Certification | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| Protection features | Dust resistant, Vandal proof, Water resistant |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Camera | |
| Minimum illumination | 0 lx |
| Angle of rotation | 355ø |
| Lens viewing angle, horizontal | 104ø |
| Lens viewing angle, vertical | 57ø |
| Lens viewing angle, diagonal | 112ø |
| Tilt angle range | 0 - 75ø |
| Pan range | 0 - 355ø |
| Camera shutter speed | 1/3 - 1/100000 s |
| Number of Privacy masking areas | 8 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Detect distance | 63 m |
| Observe distance | 25 m |
| Recognize distance | 12 m |
| Maximum aperture number | 1.6 |
| Identify distance | 6 m |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR/White |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Audio | |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio codecs | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Built-in microphone | Yes |
| Bit rate range | 32 - 320 Kbit/s |
| Sample rates | 8 - 48 kHz |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Wi-Fi | No |
| Bluetooth | No |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Live view | Yes |
| Number of simultaneous live view channels | 6 channels |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | TLS |
| HTTPS encryption | Yes |
| Heartbeat | Yes |
| Mirror | Yes |
| Password reset via email | Yes |
| Pixel counter | Yes |
| Audit log | Yes |
| Digest authentication | Yes |
| Management features | |
| Web browser | Yes |
| Reset button | Yes |
| Behavior analysis | Line crossing detection |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 7.2 W |
| Power consumption (Power over Ethernet (PoE)) | 8.5 W |
| DC output voltage | 12 |
| DC output current | 0.6 A |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 øC |
| Storage temperature (T-T) | -30 - 60 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 97.6 mm |
| Diameter | 12.2 cm |
| Weight | 600 g |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 141 mm |
| Package weight | 830 g |
| Packaging content | |
| Number of cameras | 1 |
| Warranty | |
| Base Warranty | Non Non |
