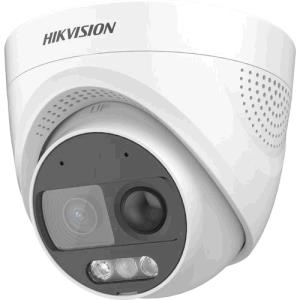

Analog 4 In 1 2mpix 40m Ir Ip67 2.8mm
ITCurry #: T4495482 | Article #: 300512834-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
From Responsive to Active
WHAT WE OFFER
First introduced to the market in 2013, Hikvision’s Turbo HD revolutionized analog surveillance by integrating the High Definition Transport Interface (HDTVI) open standard. Based on the original analog transmission media, the HDTVI standard allows HD video to be transmitted over a coax-based system at an extended distance with higher reliability.
In addition to high resolution, the signature ColorVu analog cameras make it possible to capture full-color HD pictures night and day, and the PIR cameras offer a combined solution with video and non-video technology. With Turbo HD, Hikvision sets a higher bar for HD-over-coaxial solutions by bringing superior picture quality and more smart features to the analog world.
Hikvision’s Turbo HD cameras are divided into 5 major series offering various features and capabilities: Ultra, Pro, Value, IoT, and Special. Whether you’re upgrading a legacy analog security system or installing a brand new one, you’ll find a perfect match that suits your specific needs.
Value Series
Value Series Cameras offer a cost-effective, high quality video surveillance solution. Users will enjoy high definition video, plug-and-play through coaxial cable, high quality components, and great durability.
| Performance | |
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Design | |
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
| Camera | |
| Minimum illumination | 0.01 lx |
| Angle of rotation | 360ø |
| Lens viewing angle, horizontal | 106.4ø |
| Lens viewing angle, vertical | 57.9ø |
| Lens viewing angle, diagonal | 124.6ø |
| Tilt angle range | 0 - 180ø |
| Pan range | 0 - 360ø |
| White balance | Auto, Manual |
| Camera shutter speed | PAL: 1/25 - 1/50000; NTSC: 1/30 - 1/50000 |
| Image sensor | |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Analog signal format system | NTSC, PAL |
| Noise reduction technology | 2D noise reduction |
| Image quality adjustment | Brightness, Sharpness |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Smart IR | Yes |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
| Storage | |
| Built-in HDD | No |
| Power | |
| Power source type | DC |
| Power consumption (max) | 3.9 W |
| DC output voltage | 12 |
| Weight & dimensions | |
| Width | 78.9 mm |
| Depth | 138.5 mm |
| Height | 75.4 mm |
| Length | 216.6 mm |
| Weight | 320 g |
| Packaging content | |
| Number of cameras | 1 |
| Warranty | |
| Base Warranty | Non Non |
