2td2628-7/qa 256x192 7 Thermal Bullet
ITCurry #: T4496642 | Article #: 305401574Flash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
484.57
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

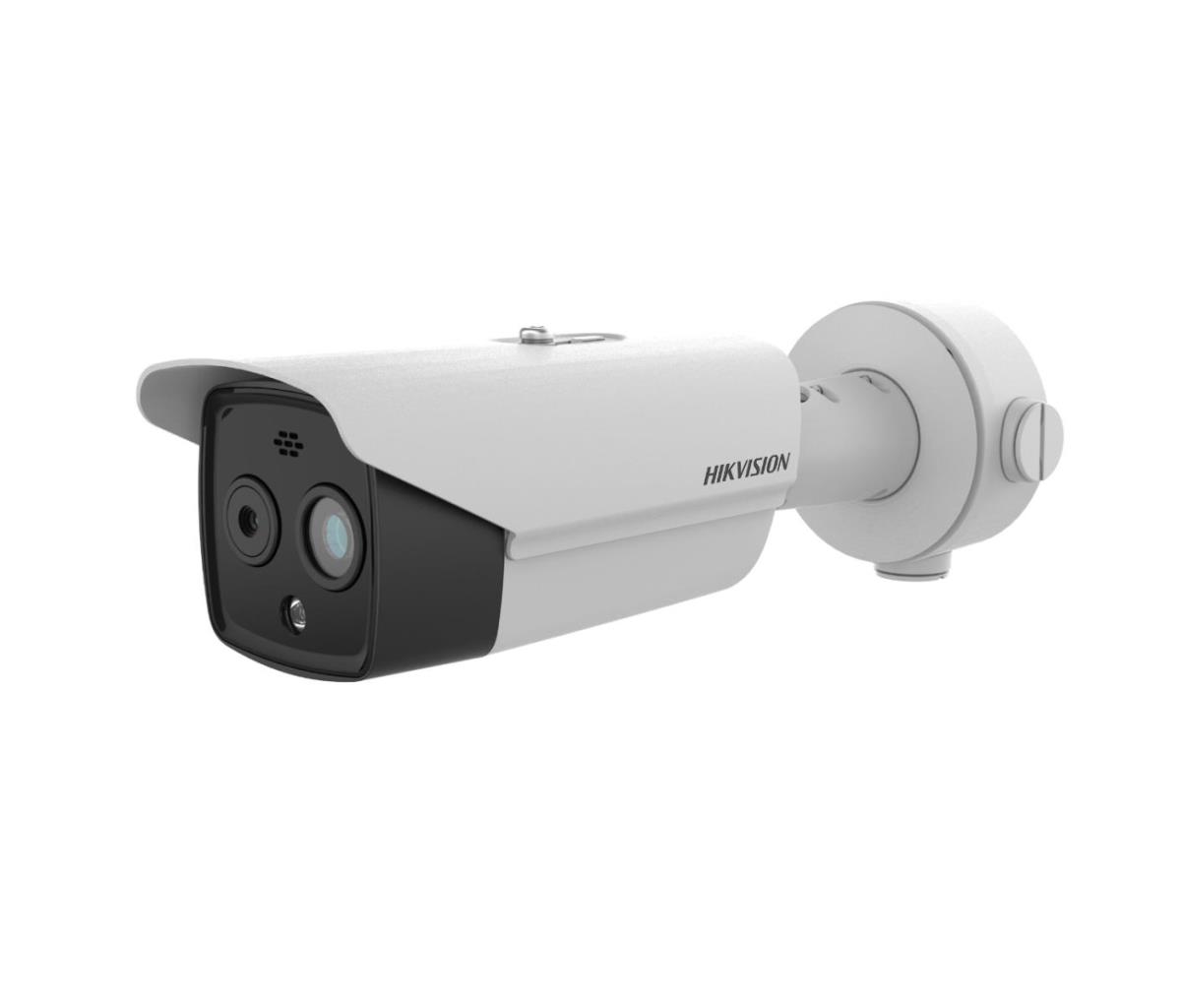

Hikvision DS-2TD2628-XX/QA Thermal & Optical Bi-spectrum Network Bullet Camera supports video analysis for perimeter protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Number of languages | 32 |
| Thermal sensitivity (NETD) | 40 mK |
| IFOV (spatial resolution) | 1.74 mRad |
| Design | |
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Camera | |
| Minimum illumination | 0.0035 lx |
| Field of view (FOV) angle (thermal module) | 24.9 x 18.7ø |
| Lens viewing angle, horizontal | 53ø |
| Lens viewing angle, vertical | 28ø |
| Camera shutter speed | 1 - 1/100000 s |
| Image sensor | |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type (thermal module) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Effective sensor resolution (thermal module) | 256 x 192 pixels |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Digital zoom | 4x |
| Maximum aperture number | 1.6 |
| Fixed focal length | 6.4 mm |
| Detect distance (wide) | 881 m |
| Recognize distance (wide) | 220 m |
| Identify distance (wide) | 110 m |
| Closest focusing distance | 1.3 m |
| Fixed focal length (thermal module) | 6.9 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Supported graphics resolutions | 352 x 288, 384 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Audio | |
| Voice codecs | G.711a, G.711u, G.722.1, G.726, MP2L2, PCM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Supported network protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,R TP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP |
| Wi-Fi | No |
| Bluetooth | No |
| Number of users | 32 user(s) |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| BNC output ports | 1 |
| Microphone in | Yes |
| Security | |
| Temperature sensor | Yes |
| IP address filtering | Yes |
| Security algorithms | EAP-MD5, EAP-TLS |
| HTTPS encryption | Yes |
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 6 W |
| Power consumption (Power over Ethernet (PoE)) | 6.5 W |
| DC output voltage | 12 |
| DC output current | 0.5 A |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 321.3 mm |
| Depth | 106.1 mm |
| Height | 107 mm |
| Weight | 1.55 kg |
| Packaging content | |
| Number of cameras | 1 |
| Warranty | |
| Base Warranty | Non Non |
