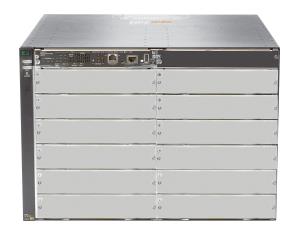

Switch 5412R 92GT PoE+ and 4-port SFP+ (No PSU) v3 zl2
ITCurry #: 1171H582 | Article #: JL001A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HP 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high-speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to converged campus networks.
Robust virtualization with HP AllianceOne solutions, hitless failover, QoS, and security with full L3 features and flexible connectivity including 40 Gigabit Ethernet ports and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.
Features
Power and Innovation To Converge Your Mobile Campus
- The HP 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high-speed connectivity for next wave 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to converged campus networks.
- Based on the 6th generation HP Networking ASIC, the 5400R zl2 Switch Series has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1µ latency, unprecedented programmability, and leading edge SDN applications.
- Flexible connectivity options with 6- or 12- slot compact chassis, support for line rate of 40 GbE, up to 96 line rate 10GbE ports (SFP+ and 10GBASE-T), 1GbE and up to 288 ports of PoE+ with internal power supplies.
- SDN ready with OpenFlow 1.3 supporting future enhancements for your network.
- License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, OSPF, and robust QoS.
Resiliency and High Availability at the Edge
- The HP 5400R zl2 Switch Series using the sixth generation HP Networking ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.
- Nonstop switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
- Redundant management and power systems enhance system availability and continuity of operations.
- Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
- Powerful virtualization with versatile HP AllianceOne service modules.
Robust Security and Dynamic Quality of Service (QoS)
- The HP 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.
- The 5400R zl2 Switch Series supports flexible authentication options include 802.1X, MAC and Web delivering greater policy-driven application security. Industry standard MACSec provides link-level encryption security between two points using copper or fiber links (available on select modules only).
- Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, manage end-to-end application priorities.
- Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access.
- Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.
Single View of the Network and Industry-Leading Warranty
- The HP 5400R zl2 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- Limited Lifetime Warranty 2.0 includes 3 years 24x7 phone support.
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 92 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Compatible memory cards | SD |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u |
| 10G support | Y |
| Full duplex | Y |
| IP routing | Y |
| Routing entries | 10000 |
| Auto MDI/MDI-X | Y |
| Auto-sensing | Y |
| VLAN support | Y |
| Data transmission | |
| Switching capacity | 1920 Gbit/s |
| Throughput | 1142.8 Mpps |
| MAC address table | 64000 entries |
| Latency (1 Gbps) | 2.8 æs |
| Latency (10 Gbps) | 1.8 æs |
| Jumbo frames support | Y |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| Design | |
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 7U |
| Product colour | Grey |
| Performance | |
| Built-in processor | Y |
| Processor model | QorIQ P2020 |
| Processor frequency | 1200 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Noise level | 49 dB |
| Power | |
| Power supply included | N |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 450.9 mm |
| Height | 307.3 mm |
| Weight | 20.5 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
