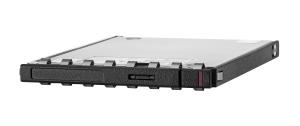

SSD 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030
ITCurry #: 1171AQR8 | Article #: P77262-B21-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Do you need to accelerate the performance of your mixed use applications? HPE NVMe Mainstream Performance Mixed Use (MU) Enterprise and Datacenter Standard Form Factor (EDSFF) E3.S Solid State Drives are well suited for high I/O applications that require a balanced performance between reads and writes to deliver high performance and endurance for data intensive applications. NVMe SSDs communicate directly to applications via the PCIe bus to boost I/O bandwidth and reduce latency. HPE NVMe Mainstream Performance MU EDSFF E3.S SSDs are advanced data center drives customized for greater performance and endurance in a cost-effective design. It is designed to utilize the high bandwidth of PCIe Gen 5 in select servers for mixed use workloads requiring outstanding IOPS per watt and cost per IOPS as an upgrade from SATA SSDs.
What is new supporting point:
Offer 1.6 TB, 3.2 TB, and 6.4 TB storage capacities for next gen NVMe Mainstream Performance Mixed Use EDSFF E3.S.
| Features | |
| SSD capacity | 1.6 TB |
| SSD form factor | E3.S |
| NVMe | Yes |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Target workload | Mixed Use (MU) |
| Random read (4KB) | 262149 IOPS |
| Random write (4KB) | 383174 IOPS |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 4.06 |
| Power | |
| Power consumption (max) | 14.23 W |
| Power consumption (average) | 14.23 W |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 254 mm |
| Height | 116 mm |
| Weight | 540 g |
| Other features | |
| Compatible products | HPE Compute Mainstream Platforms, see QuickSpecs for more information |
| Warranty | |
| Base Warranty | Non Non |
