Product Information

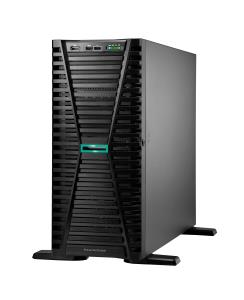

Are you searching for an affordable tower server with enterprise-class reliability and performance to meet the requirements of your growing business? The HPE ProLiant ML110 Gen11 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the 4th and 5th Gen Intel Xeon Scalable processor, HPE DDR5 SmartMemory with a maximum capacity of 1536 GB, 4 x16 PCIe Gen5 slots, 1 x16 OCP3 slot, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 5.5U of rack space. The HPE ProLiant ML110 Gen11 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses, and remote and branch offices.
What is new supporting point:
Powered by 4th and 5th Gen Intel Xeon Scalable Processors that support up to 32 cores, 185W TDP.
Increased memory bandwidth to 5600 MT/s[1] , performance and lower power requirements with up to 1.5 TB DDR5 memory capacity with 16 DIMM slots.
Advanced data transfer rates from the PCIe Gen5 serial expansion bus, support up to 4 standard PCIe Gen5 x16 slots and 1 OCP 3.0 x16 slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
Supports hot-pluggable, high-availability, RAID1 protected M.2 NVMe boot option.
Support NVIDIA RTX 4000 Ada Graphics Accelerator and L4 24GB PCIe Accelerator
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Bronze |
| Processor model | 3508U |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.2 GHz |
| Processor cores | 8 |
| Processor cache | 22.5 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 16x DIMM |
| ECC | Yes |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 1.5 TB |
| Storage | |
| Maximum storage capacity | 192 TB |
| Total storage capacity | 4 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| SSD interface | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Supported RAID controllers | Embedded Intel VROC SATA/NVMe |
| Optical drive type | No |
| Network | |
| LAN controller | Broadcom BCM5720 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | Default with 2 x16 PCIe 5.0 Slots and 1 x16 OCP3 slot. |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express x16 slots | 2 |
| Design | |
| Chassis type | Tower (4.5U) |
| Product colour | Black |
| Performance | |
| Management platform | Included: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional: HPE iLO Advanced, HPE OneView Advanced (require licenses) and HPE Compute Ops Management. Refer to the iLO 6 User Guide |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Power | |
| Power supply type | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 øC |
| Storage temperature (T-T) | -30 - 60 øC |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Non-operating altitude | 0 - 9144 m |
| Weight & dimensions | |
| Width | 195 mm |
| Depth | 587 mm |
| Height | 462 mm |
| Weight | 20.4 kg |
| Other features | |
| Standard fans | 2x Standard Fans |
| Storage drive type | 2x HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD |
| Security features | UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. TPM (Trusted Platform Module) 2.0 support. Front bezel key-lock feature, Intrusion cable (Included), Padlock slot and Kensington Lock slot support. |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
