ProLiant DL380 Gen11 - 1p 4514Y - 32GB-R - MR416i-p NC 12LFF - 1000W PS
ITCurry #: 1171AHJ4 | Article #: P70458-421-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

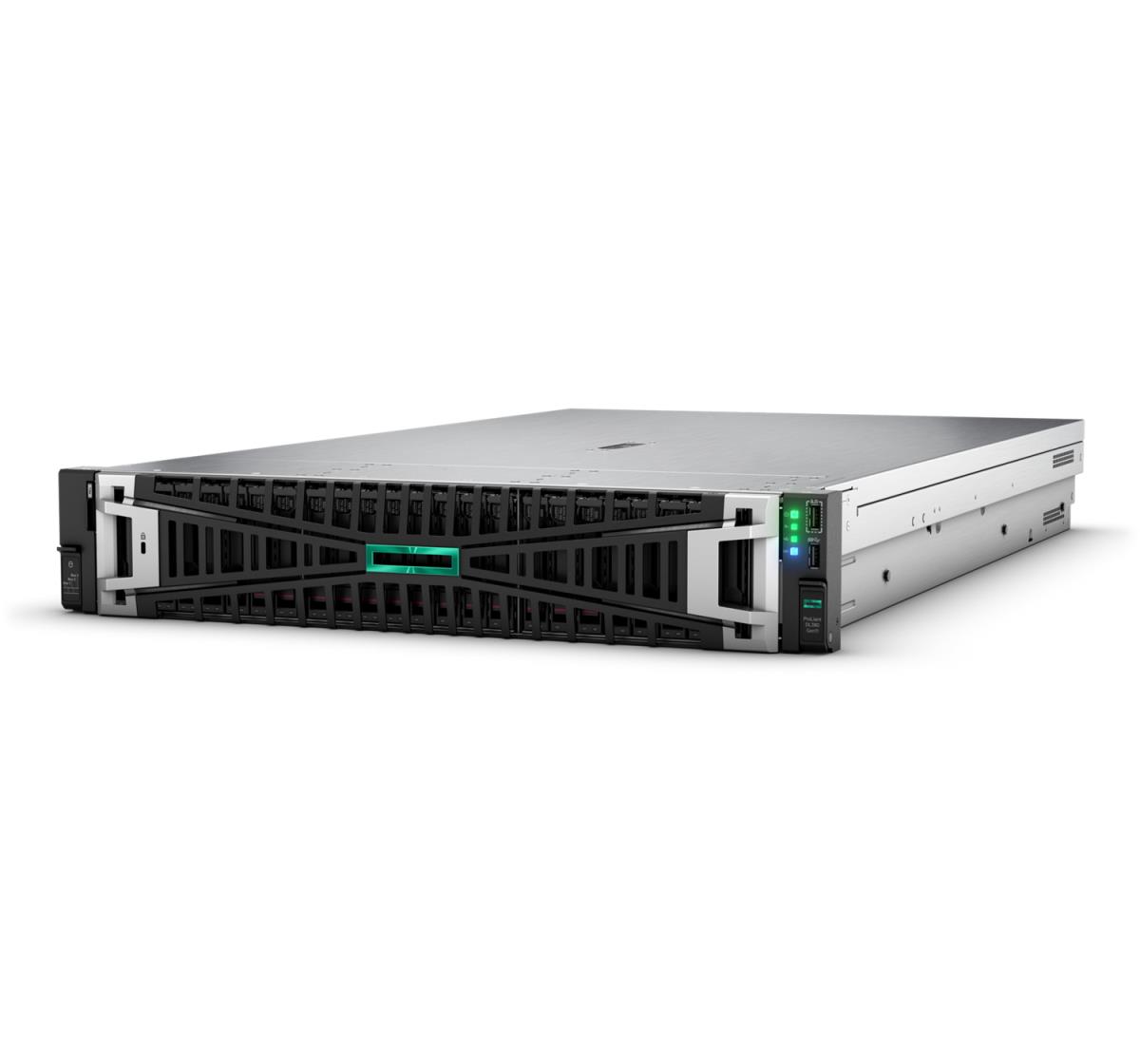

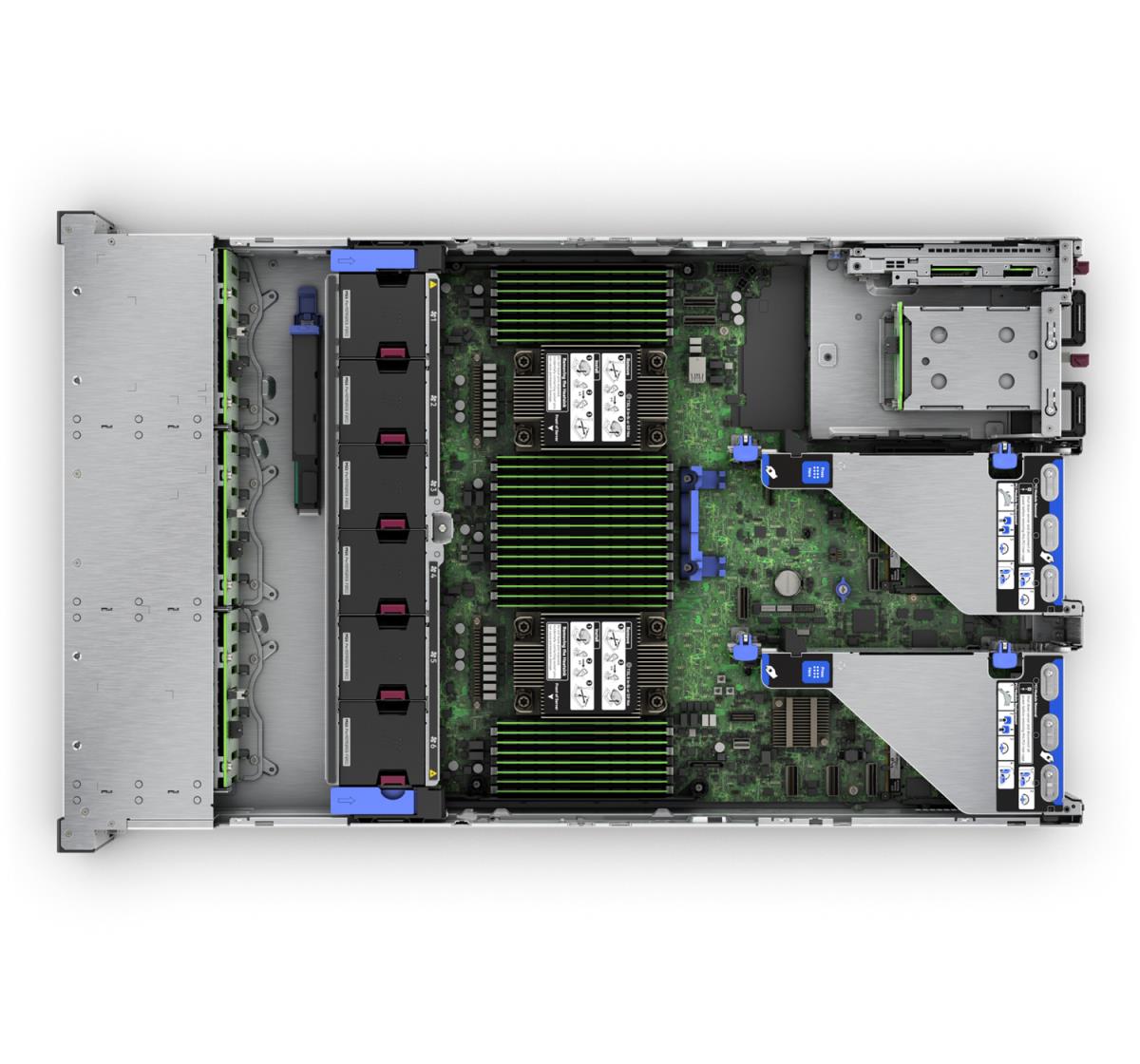

Are you looking for a dual-socket scalable server solution to power data analytics or hybrid cloud workloads? The HPE ProLiant DL380 Gen11 server is a scalable 2U 2P solution that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drive as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL380 Gen11 server is a perfect solution for software-defined storage, video transcoding, and virtualized apps. The HPE ProLiant DL380 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What is new supporting point:
Powered by the 4th and 5th Gen Intel Xeon Scalable Processors with next-generation technology that support up to 64 cores at 350W and 16 DIMMs for DDR5 memory at speeds up to 5600 MHz.
Support for up to 8 TB total DDR5 memory with 16 DIMM channels per processor delivers increased performance, lower power requirements, and High Bandwidth Memory (HBM) support.
Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable, high-availability RAID M.2 boot options.
Supports up to eight single-wide (SW) or three double-wide (DW) GPUs to accelerate graphic intense workloads.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4514Y |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 16 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Maximum number of SMP processors | 2 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 32x DIMM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 8 TB |
| Storage | |
| Maximum storage capacity | 360 TB |
| Total storage capacity | 0 GB |
| HDD interface | SATA, Serial Attached SCSI (SAS) |
| Number of HDDs supported | 12 |
| Supported HDD sizes | 3.5" |
| SSD interface | PCI Express 4.0 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
| Network | |
| LAN controller | Broadcom BCM57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |

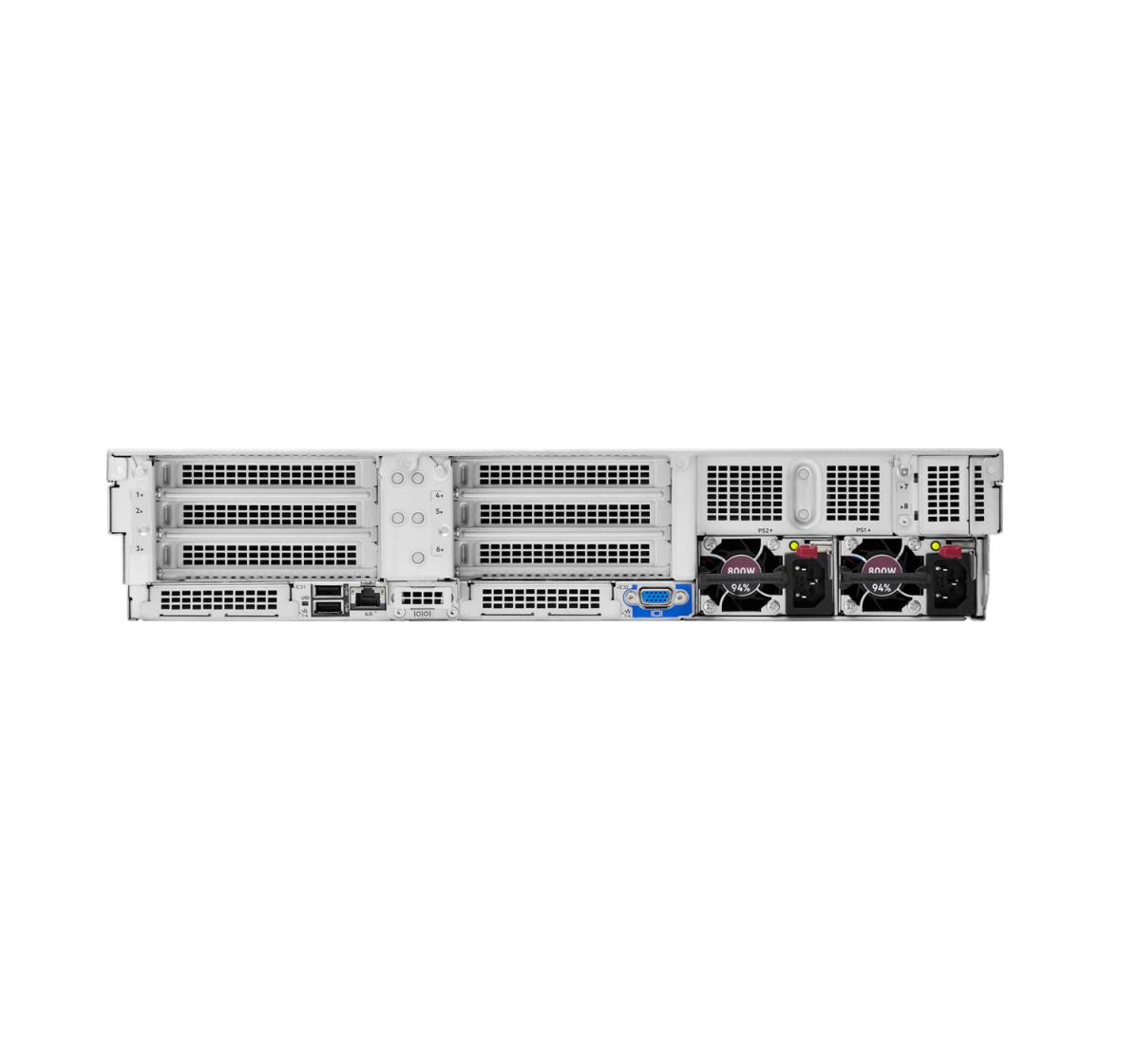

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
| Chassis type | Rack (2U) |
| Rack mounting | Yes |
| Performance | |
| Remote administration | iLO 6 ASIC |
| Management platform | HPE iLO Standard with intelligent provisioning (embedded), and HPE Compute Ops Management |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Power | |
| Power supply type | 1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of main power supplies | 1 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 998 mm |
| Height | 273 mm |
| Weight | 47.8 kg |
| Other features | |
| Standard fans | 4x Standard Fans |
| Dimensions (W x D x H) (imperial) | 599.9 x 998 x 273.1 mm (23.6 x 39.3 x 10.8") |
| Storage drive type | None ship standard, 12 LFF supported |
| Security features | HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit. For full security features refer to the QuickSpecs. |
| Weight (imperial) | 47.8 kg (105.4 lbs) |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
