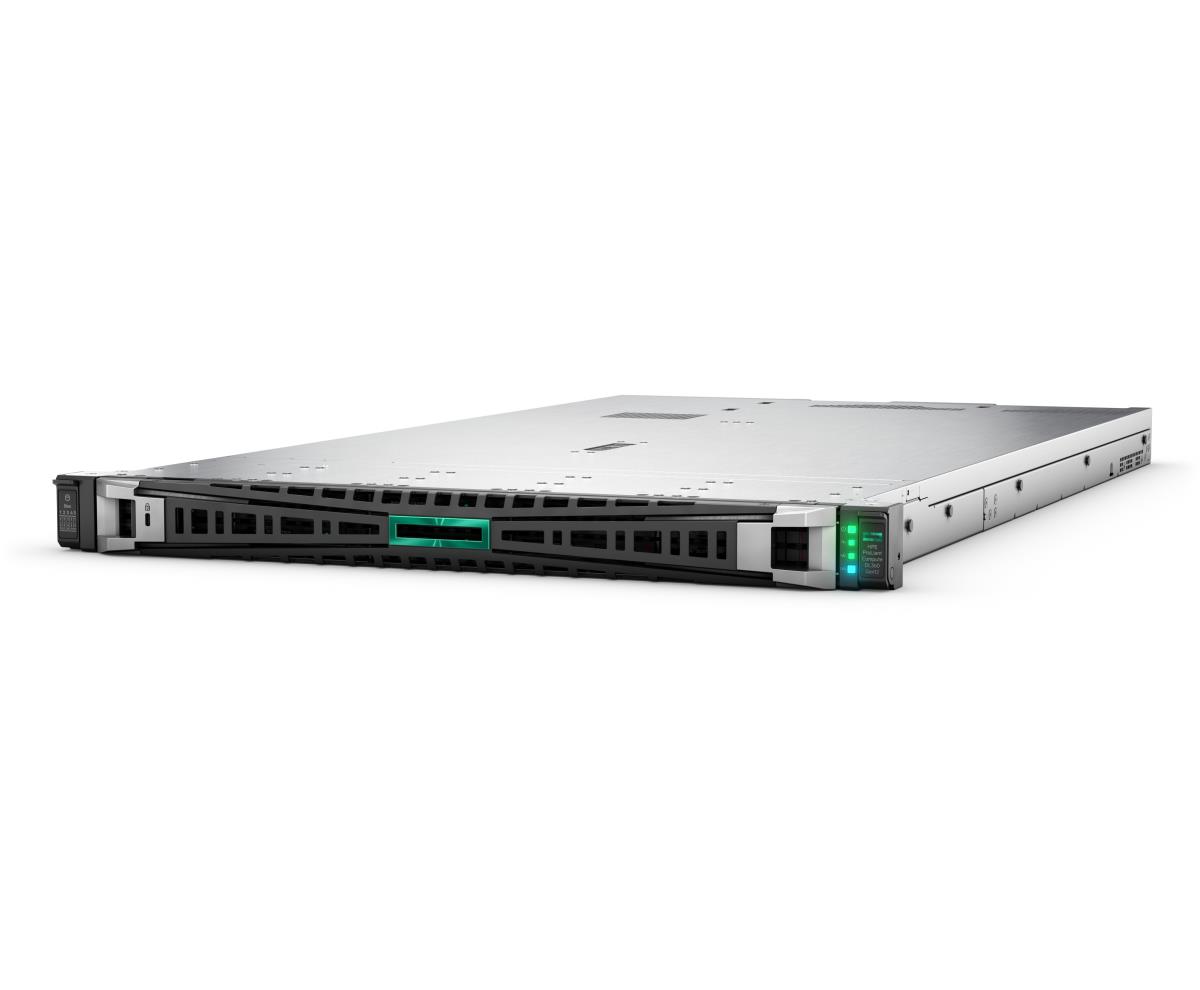

ProLiant Compute DL360 Gen12 - 1p 6507P - 2x32GB-R - 8SFF MR408i-o 2x480GB SSD - 2x1000W PS - EU
ITCurry #: 1171AUF1 | Article #: P90003-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking for a compact, rack-optimized two-socket server that supports hybrid cloud workloads? The HPE ProLiant Compute DL360 Gen12 is a compact 1U 2P server that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by Intel Xeon 6 processors with up to 144 cores and up to 8 TB of memory as well as 20 EDSFF E3.S NVMe drives, the HPE ProLiant Compute DL360 Gen12 is an ideal hybrid cloud platform for enterprise applications and workloads. This server also provides extreme scalability through a hybrid front storage cage that supports not only SFF and E3.S drives, but also an OS Boot device and two front OCP NICs as optional. The HPE ProLiant Compute DL360 Gen12 is engineered for your future, with next-level security, optimized performance and efficiencies, and automated, AI-driven productivity.
What is new supporting point:
Intel Xeon 6 processors that support up to 144 cores, up to 8 TB of DDR5 memory at speeds up to 6400 MT/s, and up to 2x average higher performance for general compute versus previous generations.
Optional front accessible boot device for quicker access and redesigned intake on front of chassis for optimal airflow and enhanced thermal efficiency.
Three cooling options — air-cooling (including air baffle), closed-loop liquid cooling, and direct liquid cooling for performance/energy efficiency to support sustainability initiatives.
Ability to use up to 10 SFF or 20 EDSFF E3.S drives as well an OS Boot device and OCP NICs in the front cage.
Up to three single-wide (SW) GPUs.
HPE Integrated Lights-Out 7 (iLO 7) server management software with streamlined manageability through a redesigned GUI, Redfish API, and increased security via patented secure enclave technology.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© |
| Processor frequency | 3.5 GHz |
| Processor cache | 48 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 6400 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Storage | |
| Total storage capacity | 960 GB |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Supported RAID controllers | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Optical drive type | No |
| Network | |
| LAN controller | Broadcom BCM57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | Maximum 3 PCIe Gen5 slots (x16 lanes/each) & Maximum 2 OCP3.0 slots (x16 lanes/each) |
| Design | |
| Chassis type | Rack (1U) |
| Performance | |
| Management platform | Included - HPE iLO7 Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO7 Advanced, and HPE OneView Advanced. HPE Compute Ops Management (Optional subscription available) Refer to the iLO 7 User Guide |
| Power | |
| Power supply type | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Power supply | 1000 W |
| Number of main power supplies | 2 |
| Other features | |
| Standard fans | 5x Standard Fans |
| Storage drive type | 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Security features | UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, Chassis Intrusion detection and Bezel Locking kits. For full security features refer to the QuickSpecs. |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
