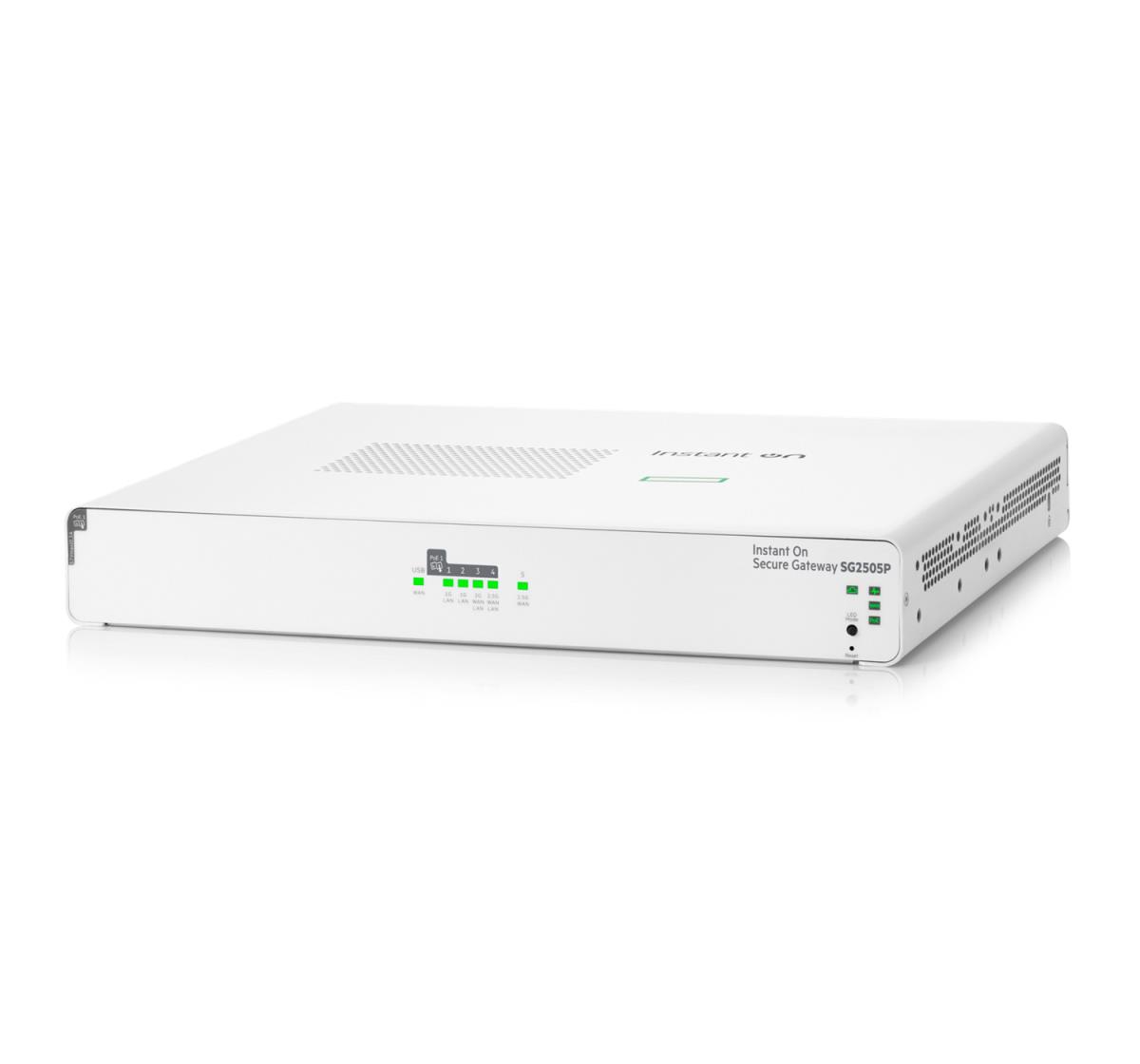

Networking Instant On Secure Gateway 5-port SmartRate 2.5G PoE+ 64W SG2505P
ITCurry #: 1171APX5 | Article #: S0G34A#ABB-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Networking Instant On Secure Gateway is a powerful, cloud-managed security solution designed for small and growing businesses. It delivers enterprise-grade security—firewall, IDS/IPS, VPN, PoE, and WAN resiliency—without hidden fees or licenses. Managed through a single platform, it offers domain blocking, deep packet inspection, and 24x7 network monitoring to protect against cyberthreats. Designed with ease of use in mind, it enables minimum-touch deployment and automated configuration, making network setup and management accessible even for non-technical users. Ideal for securing customer data, transactions, and multi-site connectivity, this gateway provides easy, reliable control tailored to SMB needs, combining simplicity with top-tier protection.
Active Threat Monitoring with Intrusion Detection and Prevention (IDS/IPS)
- IDS and IPS monitor network traffic for suspicious activities. IDS detects and alerts administrators about potential security breaches, while IPS actively blocks or prevents threats in real-time.
- Together, IDS and IPS enhance network security by identifying and responding to potential intrusions.
Keep the Network Safe with a Stateful Firewall
- This monitors and controls network traffic based on policies, creating a barrier between trusted internal networks and untrusted external networks to prevent unauthorized access and cyber threats.
- Default settings block external traffic from accessing the LAN. policies can allow or block traffic, enable port-forwarding, and client access.
Keep the Business Online with WAN Resiliency
- This feature enables continuous connectivity during network disruptions using multiple ISP connections.
- The secure gateway detects issues (link degradation or failure) and reroutes traffic to the best available ISP uplink, reducing downtime and service interruptions.
Multi-Gigabit and PoE Ports (SG2505P)
- Great for small and medium businesses with ISP throughputs faster than a gigabit, utilizes the 2.5 G ports on the SG2505P for maximum throughput.
- A PoE budget of 60W makes the SG2505P a smart choice for deploying a compact and easy-to-manage network by powering Instant On access points without an additional switch.
Design | |
Product colour | White |
Rack capacity | 1U |
Mounting type | Rack/Desktop/Wall |
Performance | |
Built-in processor | Yes |
Processor frequency | 2000 MHz |
Internal memory | 4096 MB |
Flash memory | 4096 MB |
Network | |
Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Firewall throughput | 2400 Mbit/s |
Ports & interfaces | |
USB 2.0 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 5 |
WAN connection | Ethernet (RJ-45) |
Power | |
Power consumption (max) | 79.5 W |
Power consumption (idle) | 5.6 W |
Input voltage | 100 - 240 V |
Input frequency | 50/60 Hz |
Power over Ethernet (PoE) type supported | PoE+ |
Power over Ethernet (PoE) | Yes |
Weight & dimensions | |
Width | 309.6 mm |
Depth | 234.2 mm |
Height | 43.9 mm |
Weight | 2.4 kg |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Operating relative humidity (H-H) | 15 - 95% |
Warranty | |
Base Warranty | Non Non |
