Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP21
ITCurry #: 1171AGC5 | Article #: S1T09A
Related products
Product Information

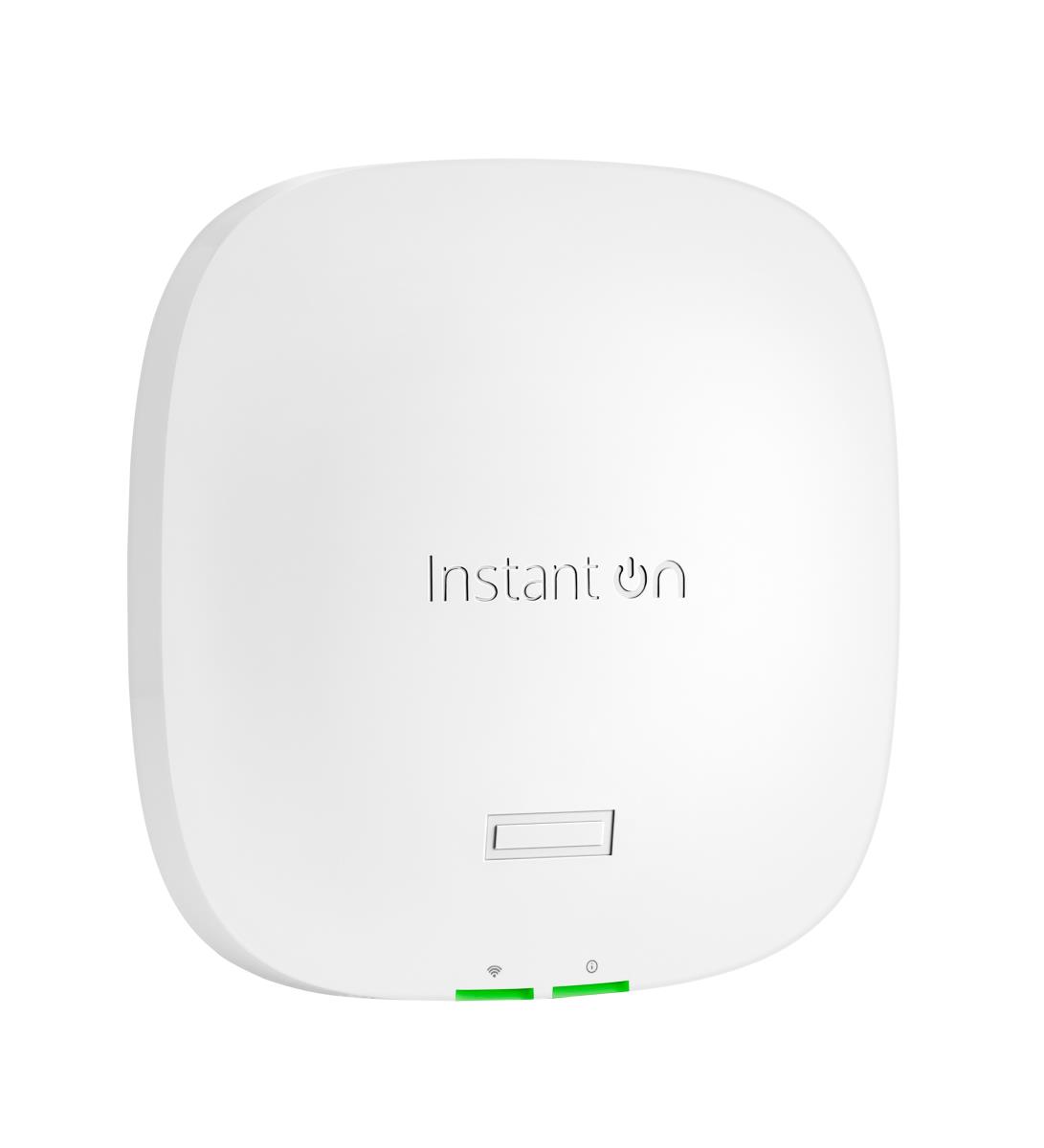

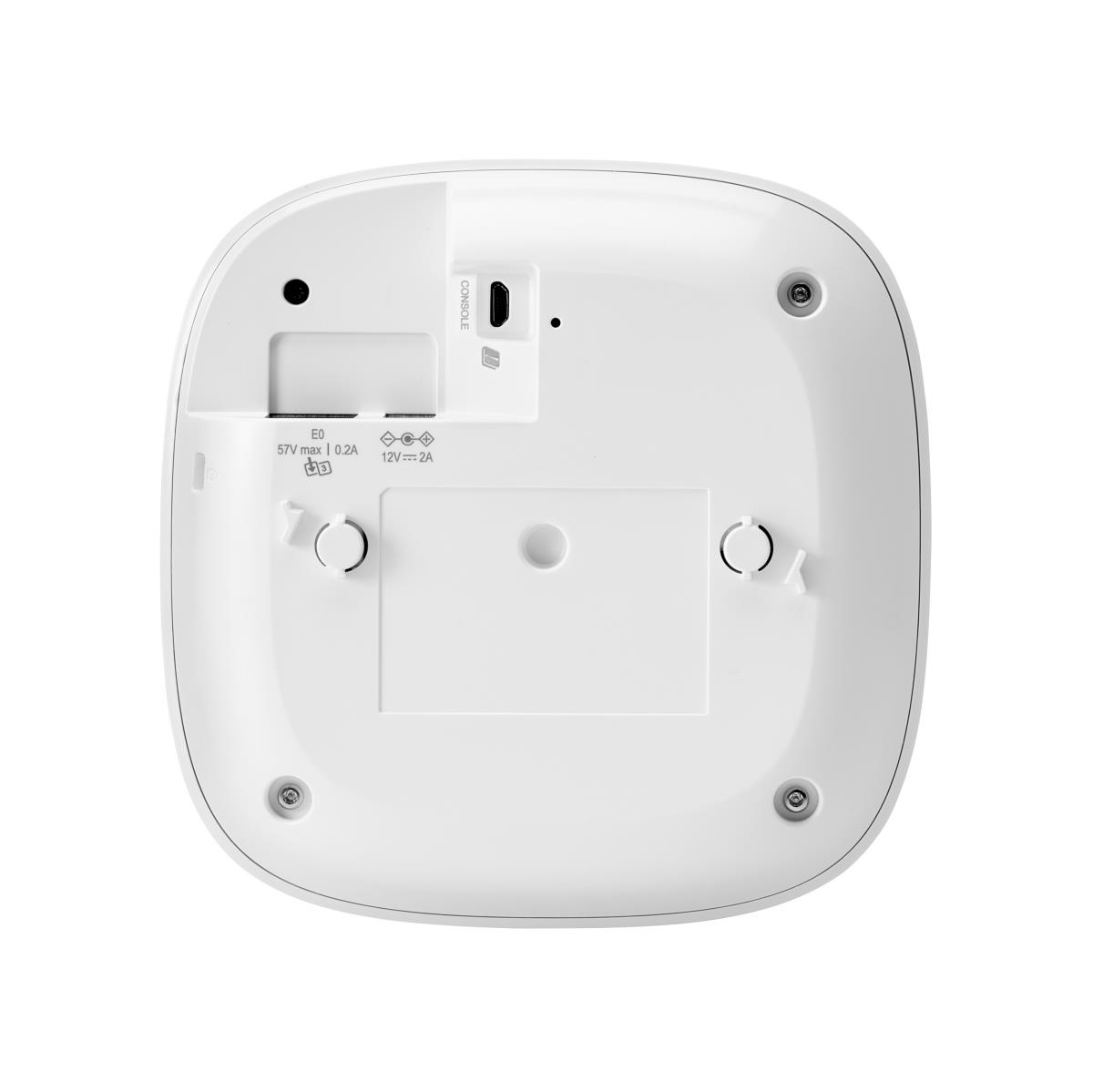

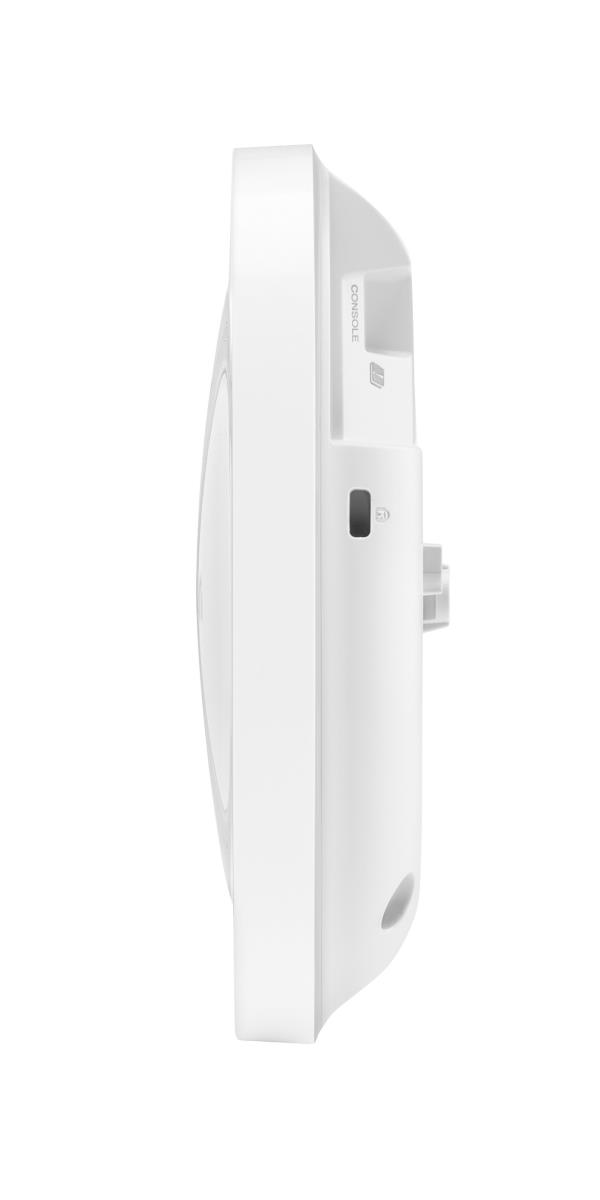

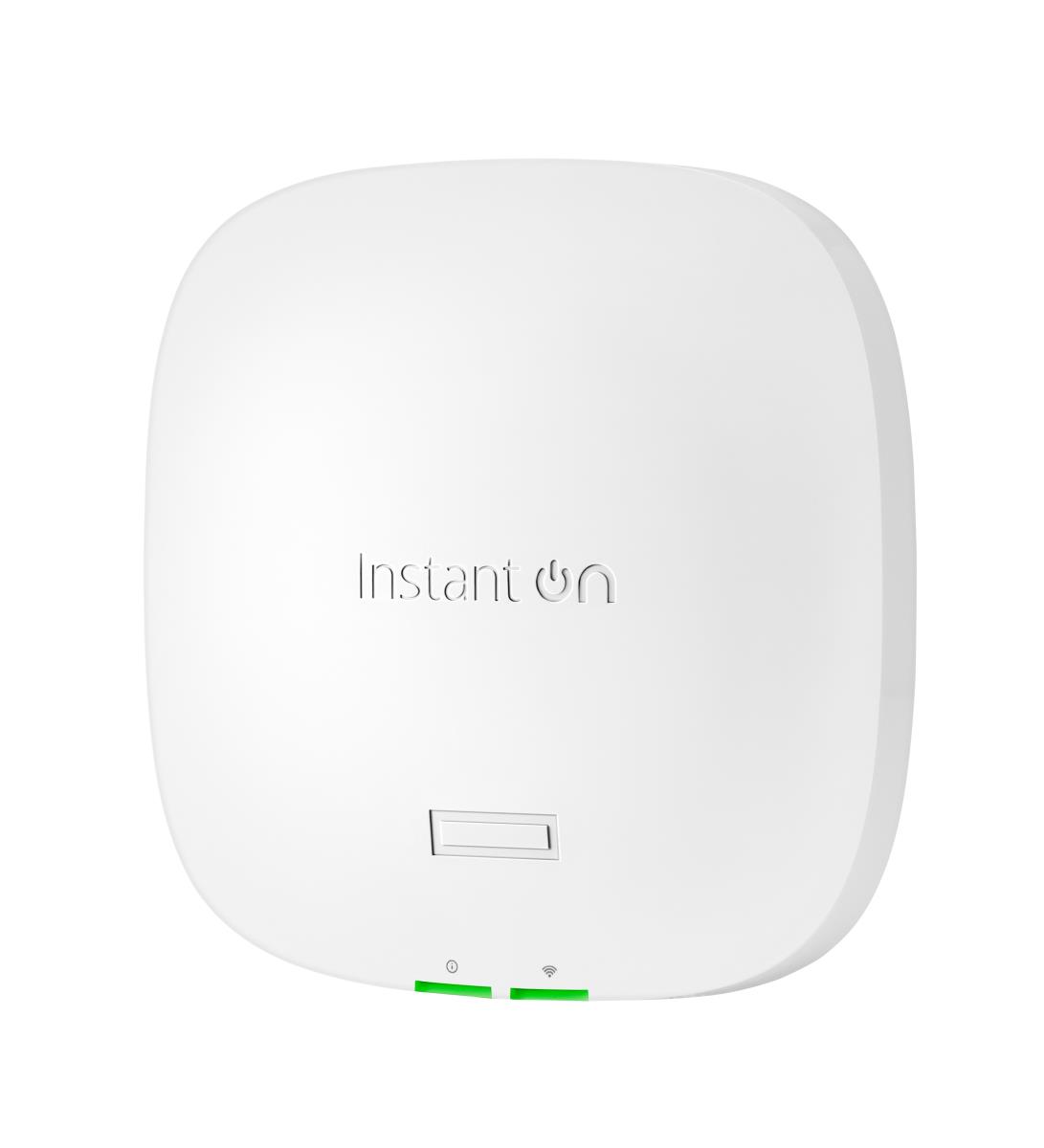

The HPE Networking Instant On Access Point AP21 is a dual radio indoor access point designed to bring connectivity to small spaces. This Wi-Fi CERTIFIED 6™ access point offers modern Wi-Fi standards in a small footprint to enhance the connectivity of your network for up to 50 devices. The dual-band radios offer suitable range for a 1500 square feet space at an affordable price with the same features as other more costly access points. The AP21 can also be used with Smart Mesh with any other Instant On access point to extend your network coverage without needing to run new cables; HPE Networking Instant On AP21 small yet mighty coverage for your growing wireless needs.
What is new supporting point:
Designed to provide better speed and coverage for smaller spaces.
PoE or DC powered to expand your network.
Use with any other Instant On access points to create a Smart Mesh to extend your network without additional ethernet cables.
Best when used in conference rooms, home offices, or low-density environments.
Wi-Fi CERTIFIED 6™ support for up to 50 user devices.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking standards | IEEE 802.11ax, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 50 user(s) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security | |
| Security algorithms | OWE, WPA2, WPA3 |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Power consumption (typical) | 10.9 W |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Reset, Status |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4.8 dBi |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 51 mm |
| Height | 145 mm |
| Weight | 255 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Warranty | |
| Base Warranty | Non Non |
