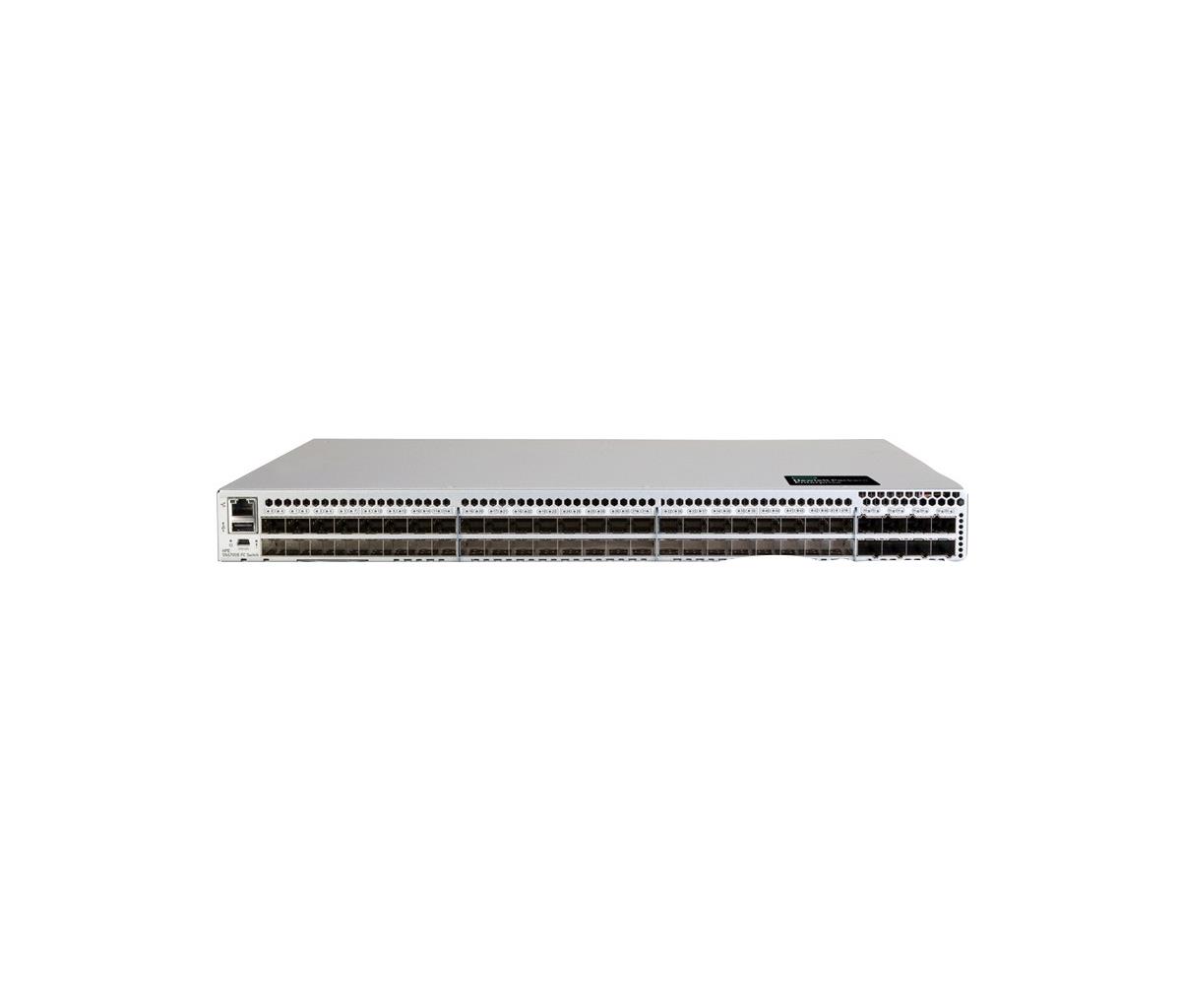

HPE SN6700B 64GB 56/24 24-port 64GB Short Wave SFP56 Fibre Channel Switch
ITCurry #: 1171ZV72 | Article #: R7M13A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you struggling to meet the I/O demands of hyper-scale virtualization, large cloud infrastructures, and growing, NVMe storage environments? The HPE Storage Fibre Channel Switch B-series SN6700B is a high-performance, ultra-dense, highly scalable, and easy-to-use enterprise-class storage networking switch delivering Gen7 64Gb Fibre Channel (FC) capabilities. It is designed to support data growth, demanding workloads, and data center consolidation in small to large scale enterprise infrastructures. Delivering 64Gb performance, customized high port density, and integrated network sensors, it accelerates data access, adapts to evolving requirements, and drives 24x7 businesses. It can scale from 24 to 64 ports, all in an efficient 1U package. In addition, a simplified deployment process and a point-and-click user interface make the HPE Storage Fibre Channel Switch B-series SN6700B easy to use.
What is new supporting point:
Increase scalability with a double-density (DD) Port-On-Demand (POD) Kit upgrade. Each transceiver within the kit provides 2x the bandwidth with dual SN connections.
Switch offerings as well as Port-on-Demand upgrade kits bundled with 64Gb optics.
HPE Storage B-series Gen7 64Gb FC switch technology combines analytics and advanced automation capabilities to accelerate data access, adapt to evolving requirements, and drive 24x7 operations.
HPE Storage B-series Gen7 64Gb FC switch technology enables organizations to realize a self-learning, self-optimizing, and self-healing autonomous SAN.
| Management features | |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| USB Type-A ports quantity | 1 |
| SFP28 ports quantity | 56 |
| Data transmission | |
| Switching capacity | 3500 Gbit/s |
| Protocols | |
| Supported protocols | Fibre Channel |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Performance | |
| Media types supported | Supports 64Gb, 32Gb SFP and 64Gb DD transceivers |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47/63 Hz |
| Other features | |
| Technical features | Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans |
| Weight (imperial) | 7.17 kg (15.8 lbs) |
| Optional software | SANnav, All offerings include HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP) |
| Port speed rating | 64Gb |
| Upgrade type | Activate additional ports using 8 port SFP and 16 port DD POD Kit upgrades |
| Dimensions (W x D x H) (imperial) | 185.9 x 43.9 x 355.6 mm (7.32 x 1.73 x 14") |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -25 - 70 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 12000 m |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 43.9 mm |
| Height | 355.6 mm |
| Weight | 7.17 kg |
| Warranty | |
| Base Warranty | Non Non |
