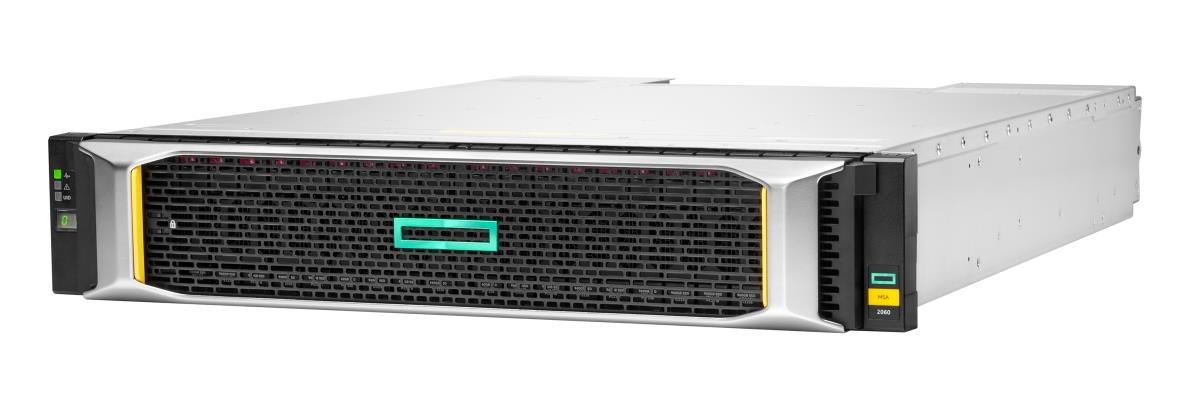

HPE MSA 2060 10GbE iSCSI SFF 46TB Flash Bundle
ITCurry #: 1171AFM5 | Article #: S2E42B-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Is your company looking for easy-to-use, affordable, and high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads. [1]
What is new supporting point:
MSA Gen6 HDD and SSD media options supporting an increase in MSA 2060 raw capacity of up to a maximum of 7.37 PB.
All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
Customer configurable HPE MSA 2060 storage array models and storage media options available through the HPE Smart Choice program.
HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.
| Storage | |
| Storage drives installed | Yes |
| Installed storage drive type | SSD |
| Number of storage drives installed | 12 |
| Total installed storage capacity | 46 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 1797.12 TB |
| Storage drive capacity | 3.84 TB |
| Supported storage drive interfaces | SAS |
| Storage drive type | Bundled with 12x 3.84 TB SAS RI SFF SSD drives; Add up to 12x additional SFF HDD and/or SSD drives per array model |
| Ports & interfaces | |
| Fibre Channel | Yes |
| Host ports | 8 |
| Design | |
| Chassis type | Rack (2U) |
| System requirements | |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2022, Windows Server 2016, Windows Server 2019, Yes |
| Weight & dimensions | |
| Width | 89 mm |
| Depth | 445 mm |
| Height | 508 mm |
| Weight | 5 kg |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Weight (imperial) | 4.99 kg (11 lbs) |
| Storage drive controller | 2 per array, 4-ports each (8-ports total) |
| Clustering support | Yes |
| Expansion description | 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9) |
| Insight manager support | No |
| SAN backup support | Yes |
| Storage mirroring | No |
| Compatible operating systems | Windows Server 2022 Windows Server 2019 Windows Server 2016 VMWare vSphere 6.7 Red Hat Linux 8 SuSE SLES 15 |
| Warranty | |
| Base Warranty | Non Non |
