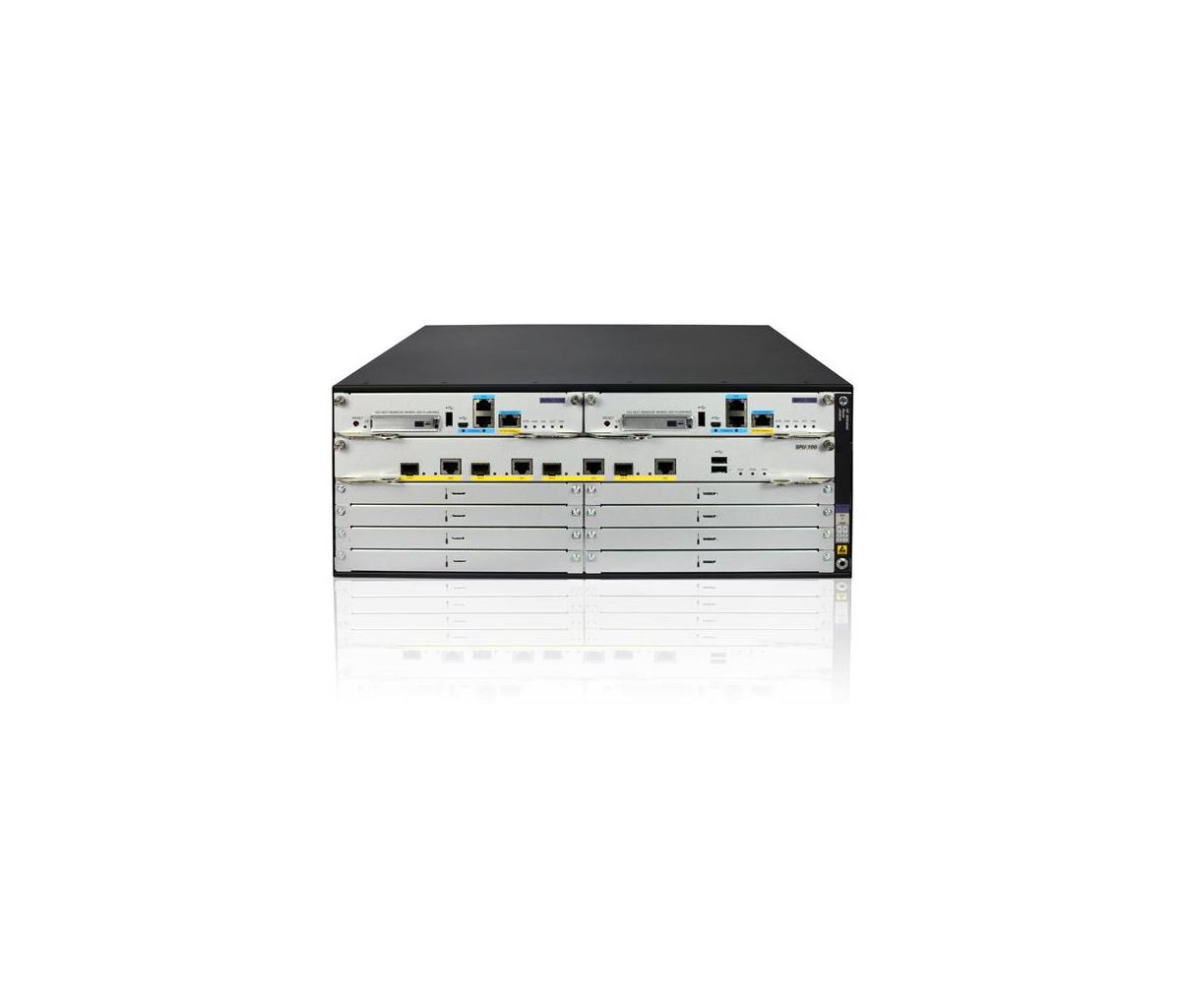

HP MSR4060 Router Chassis (JG403A)
ITCurry #: 1171G951 | Article #: JG403A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Networking Comware Router Series MSR4000 delivers high-performance large branch routing with up to 36 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, VPN, and SIP with no additional licensing, you can boost your service delivery while simplifying the management of your corporate WAN. The MSR4000 Series leverages separated data and control planes, dual main processing units (MPUs), and support for up to four power supplies. The routers provide a full-featured, resilient routing platform with the latest multicore CPUs, offer 10 Gigabit SFP+ integrated, provide an enhanced PCI bus, and ship with the latest version of HPE Comware software to help enable high performance with concurrent services. With the Open Application Platform module, the MSR4000 Series offers a wide range of virtualized applications. Its distributed, modular architecture and high reliability also strengthen the resiliency of large branches.
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Forwarding rate | 36 Mpps |
| VLAN support | Yes |
| Multicast support | Yes |
| Traffic control | Yes |
| Port forwarding | Yes |
| Auto MDI/MDI-X | Yes |
| Management features | |
| Web-based management | No |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 6 |
| Number of MPU slots | 2 |
| Protocols | |
| Routing protocols | RIP-1, RIP-2 |
| DHCP client | Yes |
| DHCP server | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Security | |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1 |
| Firewall | Yes |
| ARP attack prevention | Yes |
| ICMP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| Features | |
| Flash memory | 512 MB |
| Internal memory | 2000 MB |
| Internal memory type | DDR3 |
| Heat dissipation | 347 BTU/h |
| Design | |
| Product colour | Black, Silver |
| Rack mounting | Yes |
| Rack capacity | 4U |
| Power | |
| Power consumption (typical) | 300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 480 mm |
| Height | 175 mm |
| Weight | 20.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
