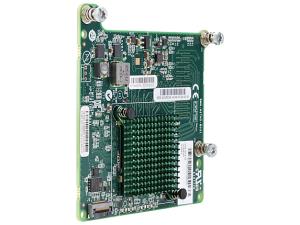

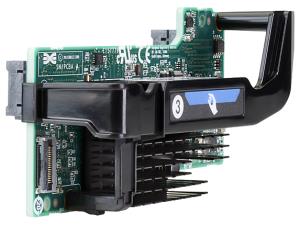

FlexFabric 10GB 2-port 533FLR-T Adapter
ITCurry #: 1171D656 | Article #: 700759-B21-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are your enterprise data centers growing and requiring increased network performance? Increased workload demands are putting pressure on server I/O. The HP FlexFabric 10Gb 2-port 533FLR-T Adapter increases throughput for the HP ProLiant Gen8 DL and SL Server series by using the innovative HP FlexibleLOM form factor to offer dual-ports in a 10GBASE-T adapter configuration.
This is an affordable choice for workload-intensive computing environments, providing a reliable, high performance 10 GbE connectivity solution.
Accelerates Server Performance
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter boosts network performance with full line-rate 10 GbE throughput across all ports.
- Provides increased server performance by delivering full hardware offload for storage traffic.
Robust Virtualization Capabilities
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter delivers Single Root I/O Virtualization (SR-IOV) support to allow multiple operating systems to share a physical interconnect.
- Supports Vmware NetQueue and Microsoft VMQ technologies.
- Enhances network management and efficiency with support for VLAN tagging.
Streamlines Deployment and Management
- Makes Broadcom Ethernet solutions available across a wide range of HP server platforms.
- Unifies NIC and storage management using HP ProActive Insight architecture.
- Provides backward compatibility with existing 1GbE networks and low-cost CAT 6a UTP cabling, supporting distances up to 100 meters.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate | 20000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Full duplex | Yes |
| Design | |
| Internal | Yes |
| Chipset | Broadcom BCM57810S |
| Power | |
| Power consumption (typical) | 15.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Flash memory | 256 MB |
| Warranty | |
| Base Warranty | Non Non |
