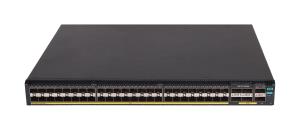

Aruba Networking CX 8100 48x10G SFP+ 4x40/100G QSFP28 BF Airflow 3Fan 2AC PSU Switch Bundle
ITCurry #: 1171AFT7 | Article #: R9W91A#ABB-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT. The CX 8100 switches are based on HPE Aruba Networking CX Switch Operating System (AOS-CX) that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are available in every switch. The series includes industry-leading line rate ports with 1/10 GbE (SFP/SFP+) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10 Gbps and 4x25 Gbps break out from 40/100 G. These switches are great for customers needing 1 GbE/10 GbE with mix of fiber and copper ports.
What is new supporting point:
Intelligent monitoring and visibility delivered by the HPE Aruba Networking Networks Analytics Engine (NAE)
Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.
High availability with industry-leading VSX redundancy and redundant power supplies and fans.
HPE Aruba Networking CX Switch Operating System (AOS-CX) automation and programmability using built-in REST APIs and Python scripts
High-performance 1.76 Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 48 |
| Console port | RJ-45/USB Type-C |
| QSFP28 ports quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 1760 Gbit/s |
| MAC address table | 147456 entries |
| Jumbo frames support | Yes |
| Packet buffer memory | 32 MB |
| Security | |
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Authentication type | RADIUS, TACACS+ |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | BGP, BGP4, OSPF, RIPng |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Airflow direction | Back-to-front airflow |
| Number of fans | 3 fan(s) |
| Performance | |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Processor frequency | 1800 MHz |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 450 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4600 m |
| Heat dissipation | 1535 BTU/h |
| Weight & dimensions | |
| Width | 442.5 mm |
| Depth | 406.4 mm |
| Height | 44 mm |
| Weight | 8.39 kg |
| Warranty | |
| Base Warranty | Non Non |
