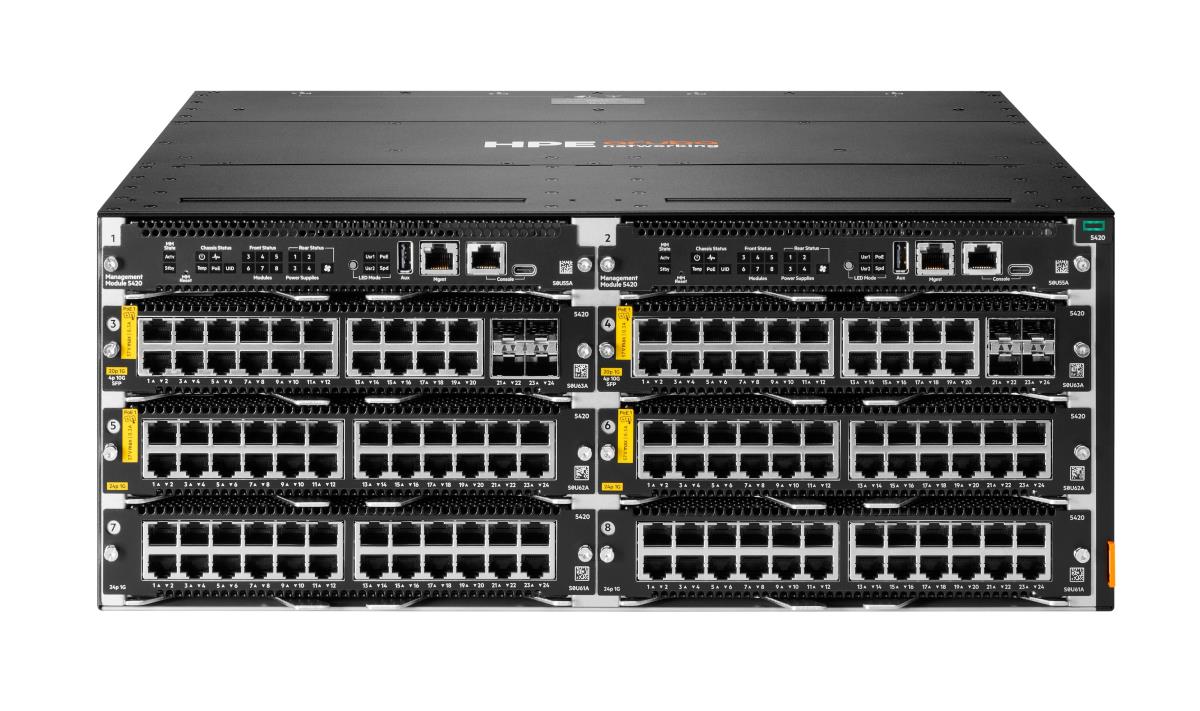

Aruba Networking CX 5420 20p 10M/100M/1G Class4 PoE 4p SFP+ 1G/10G LRM Module
ITCurry #: 1171AMK9 | Article #: S0U63A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Aruba Networking CX 5420 Switch Series is an intelligent, flexible and modular Layer 3 switch chassis created for today's enterprise small and medium campus, branch enterprise networks with built-in MACsec hardware capability, analytics and automation. CX 5420 switch chassis is part of the CX switching portfolio that provides an enterprise-class access layer solution that is easy-to-deploy, simple, secure and resilient. By combining a modern, fully programmable OS with HPE Aruba Networking Network Analytics Engine (NAE), the CX 5420 Series provides industry leading monitoring and troubleshooting capabilities across the network. A powerful Gen7 ASIC architecture delivers performance and extensive feature support with flexible programmability for the tomorrow applications. This advanced modular 4U chassis switch offers up to 960Gbps with low latency, 6 half-width line card slots, VSX Live Upgrade, and HPE Smart Rate 10GbE up to 90W Class-8 PoE with BGP/OSFP/PIM support.
What is new supporting point:
Powerful, modular, intelligent Layer 3 switch chassis with BGP, VSX, and OSPF with robust quality of service (QoS).
Flexibility with 6 half-width modules that allow growth when needed and support for port diversity in a condensed 4RU chassis with redundant MM and PSU.
High performance switching with up to 960 Gbps using 714 Mpps, built-in high availability with HPE Aruba Networking Virtual Switching Extension (VSX) Live Upgrade and Always-On PoE.
Simplified operations with the common HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio delivering a more consistent, more efficient operator experience.
Easy to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, with easy-to-use web GUI or industry-standard CLI.
Automated, unified role-based policies for users, Internet of Things (IoT) and devices with HPE Aruba Networking Dynamic Segmentation and intelligent monitoring, visibility, and remediation with NAE.
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.3bt |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 960 Gbit/s |
| Throughput | 714 Mpps |
| Forwarding rate | 160 Mpps |
| Packet buffer memory | 64 MB |
| Protocols | |
| Routing protocols | BGP, OSPF |
| Design | |
| Rack mounting | Yes |
| Form factor | 4U |
| Product colour | Black |
| Performance | |
| Memory type | DDR4-SDRAM |
| Internal memory | 16 MB |
| Flash memory | 32 MB |
| Power | |
| Power source | AC/PoE |
| Power supply included | No |
| Number of power supply units | 4 |
| AC input voltage | 100 - 127 V |
| Power consumption (typical) | 1000 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Weight & dimensions | |
| Width | 229 mm |
| Depth | 213 mm |
| Height | 43 mm |
| Weight | 850 g |
| Logistics data | |
| Dangerous goods class | Class 8 |
| Warranty | |
| Base Warranty | Non Non |
