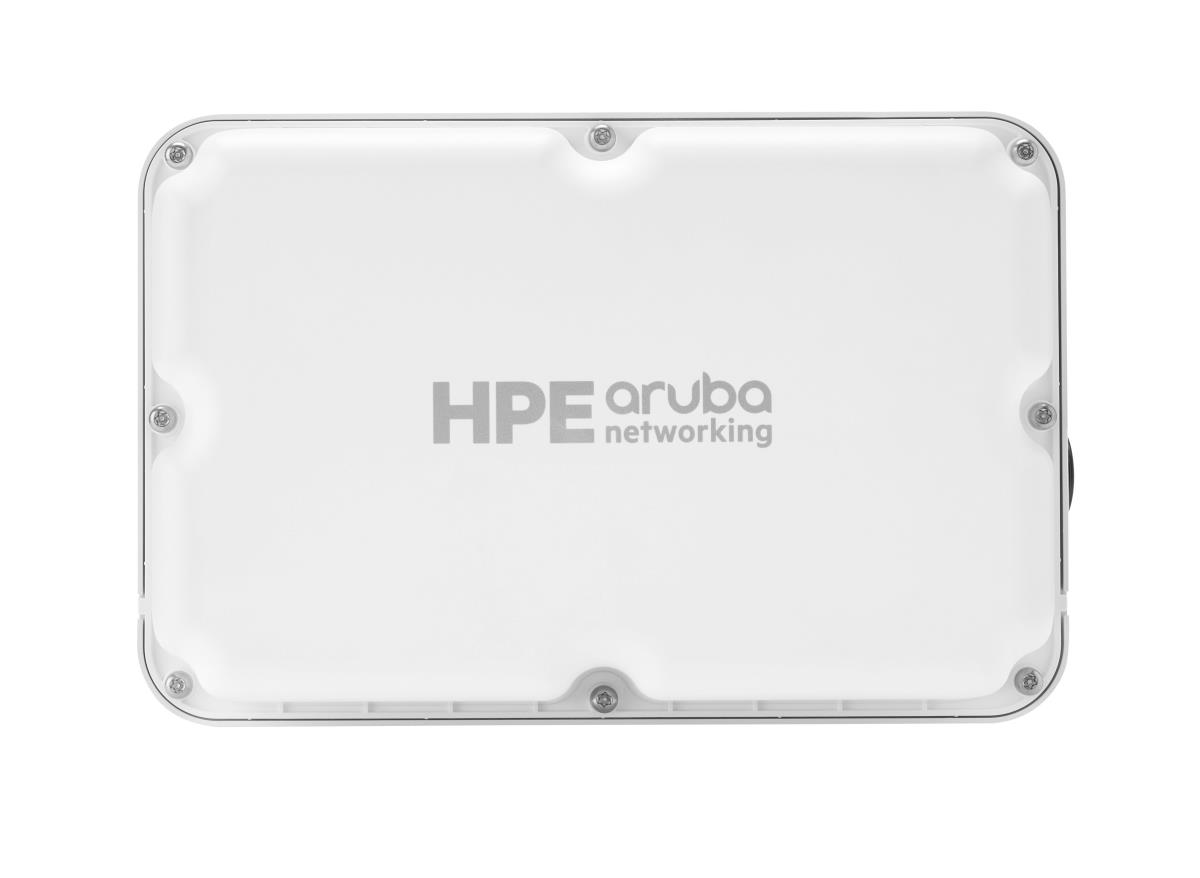

Aruba Networking AP-765 (RW) Flex Radio 2x2 Wi-Fi 7 Dynamic Omni-Directional Outdoor AP
ITCurry #: 1171ATR3 | Article #: S4K20A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Aruba Networking 760 Series Hardened Access Points bring high performance Wi-Fi 7 to challenging locations such as industrial sites, warehouses, and large public venues. These compact Wi-Fi 7 access points boost security, support Internet of Things (IoT) devices, and help provide accurate location services. HPE Aruba Networking Central helps drive efficient operations and provides AI-automation and machine learning (ML) insights for fine-tuned wireless connectivity. With integrated IoT radios, fast 5GbE wired connectivity, and a limited lifetime warranty, the 760 series is purpose-built to deliver high-performance Wi-Fi 7 across a range of environmental conditions: indoor industrial, outdoors, and hazardous environments, delivering up to 5.8 Gbps maximum aggregate data rates using 6 GHz (4x4). For extreme environments, the 760EX models are hazardous location compliant, ideal for environments such as oil rigs, industrial manufacturing, and transportation sites.
What is new supporting point:
Industrial IoT-ready platform with high-power integrated Bluetooth and 802.15.4/Zigbee radios
High performance hardened Wi-Fi 7 access points with purpose-built models for industrial indoors, outdoors, large public venues, and hazardous environments
AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless experiences and operational efficiency
It delivers up to 4.3 Gbps maximum 5 GHz + 6 GHz aggregate data rate, using dual 2x2 MIMO radios (5 GHz and 6 GHz 2x2), or up to 5.8 Gbps (in 6 GHz 4x4)
Low power indoor (LPI) power and standard power (SP) device operation, where available. Embedded GPS receiver for location and SP support
Dynamic power save mode helps reduce energy consumption
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate | 5800 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Ethernet LAN data rates | 5000,100,1000,2500 Mbit/s |
| Frequency band | 20/40/80/160 MHz channel bandwidths supported Aggregate peak data rate 5.8 Gbps using 6 GHz (4x4) with 160 MHz |
| Networking standards | IEEE 802.11be, IEEE 802.11mc, IEEE 802.15.4, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| MIMO | Yes |
| GPS (satellite) | Yes |
| MACsec support | Yes |
| Security | |
| Security algorithms | WPA2, WPA3-Enterprise, WPA3-Personal, OWE, WMM |
| Management features | |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| Recommended usage | Indoor/outdoor |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 7.4 dBi |
| Performance | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10 |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), ISED |
| Certification | Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (enterprise, personal), Enhanced Open (OWE) WMM, WMM PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (E0, PoE PD Device Class 6) |
| Other features | |
| I/O ports | 1 x 5GbE USB 2.0 Reset button Serial console |
| Warranty | |
| Base Warranty | Non Non |
