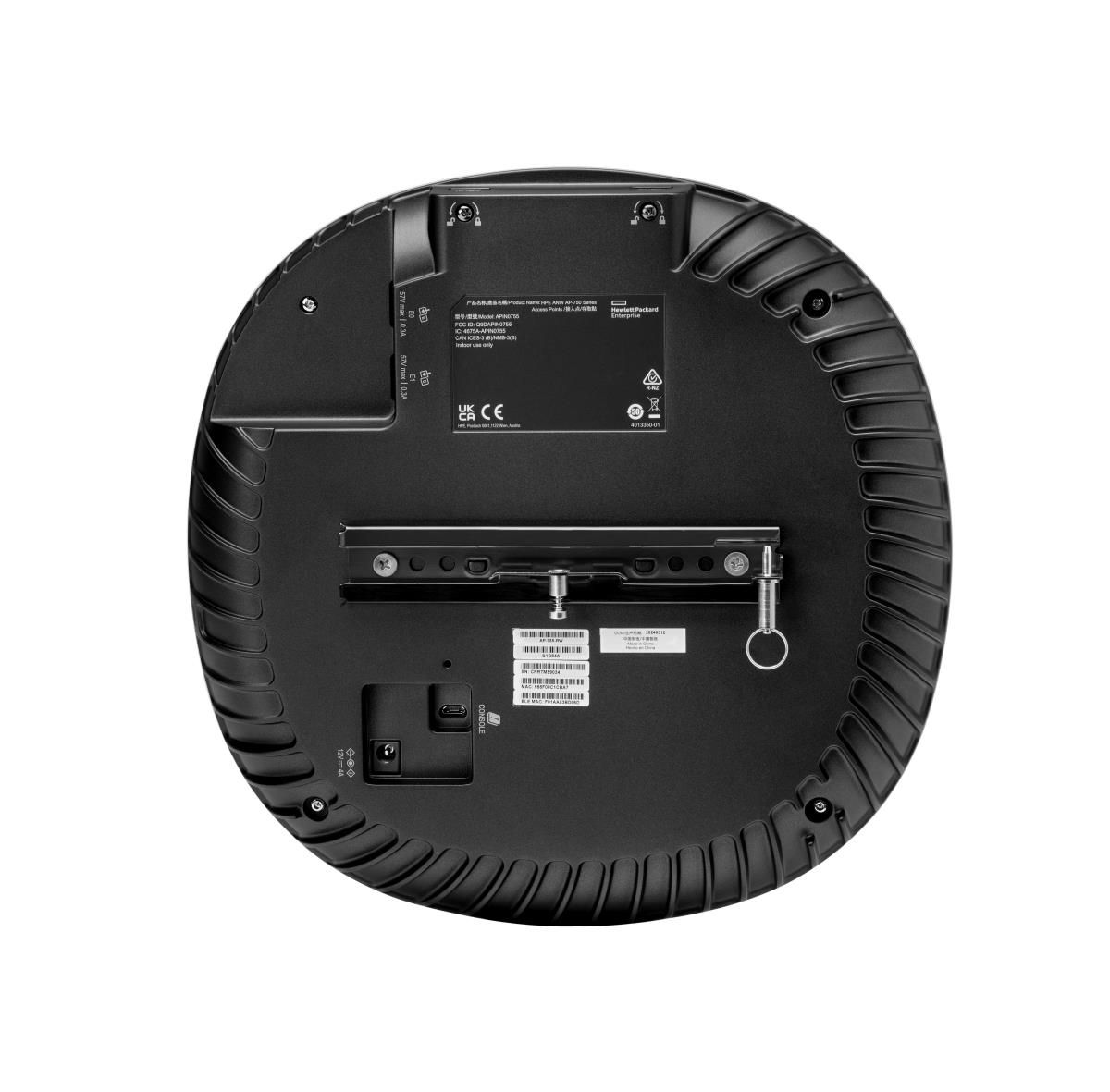

Aruba Networking AP-755 (RW) Tri Radio 4x4 Wi-Fi 7 Internal Antennas 5-pack Campus Access Point
ITCurry #: 1171AML7 | Article #: S0H10A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HPE Aruba Networking 750 Series Campus Access Points are our flagship Wi-Fi 7 access points that deliver impressive wireless performance, strengthen network security, provide precise location-based services, and offer an Internet of Things (IoT) platform with enterprise-grade security, enabling enterprises to fully realize the value of their wireless investment and unlock operational efficiencies. This high performance access point is designed with three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), dual 10 Gbps Ethernet ports, dual IoT radios, built-in GNSS receiver, and patented ultra tri-band (UTB) filtering for high capacity, fast, and resilient connectivity with enhanced security. HPE Aruba Networking Central provide intelligent automation, AI insights, and unified infrastructure management to help drive efficient IT operations. The 750 series includes a limited lifetime warranty.
What is new supporting point:
Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self locate and act as reference points for accurate indoor location measurements
High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions
High availability with dual 10 Gbps wired ports for redundant Ethernet and power, as well as the ability to combine power from both ports
Three 4x4 MIMO radios provide comprehensive tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps maximum aggregate data rate
Patented ultra tri-band (UTB) filtering enhances the use of 5 GHz and 6 GHz bands
AI-powered Wi-Fi 7 access points are ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2900 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Ethernet LAN data rates | 10000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Bluetooth Low Energy (BLE) | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Trusted Platform Module (TPM) | Yes |
| BeamForming | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 36 W |
| Design | |
| Placement | Pole, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Reset button | Yes |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Performance | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 or later |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Certification | UL2043 plenum rating Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 240 mm |
| Height | 56 mm |
| Weight | 1.44 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| I/O ports | E0, E1: Two Ethernet wired network ports (RJ-45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Warranty | |
| Base Warranty | Non Non |
