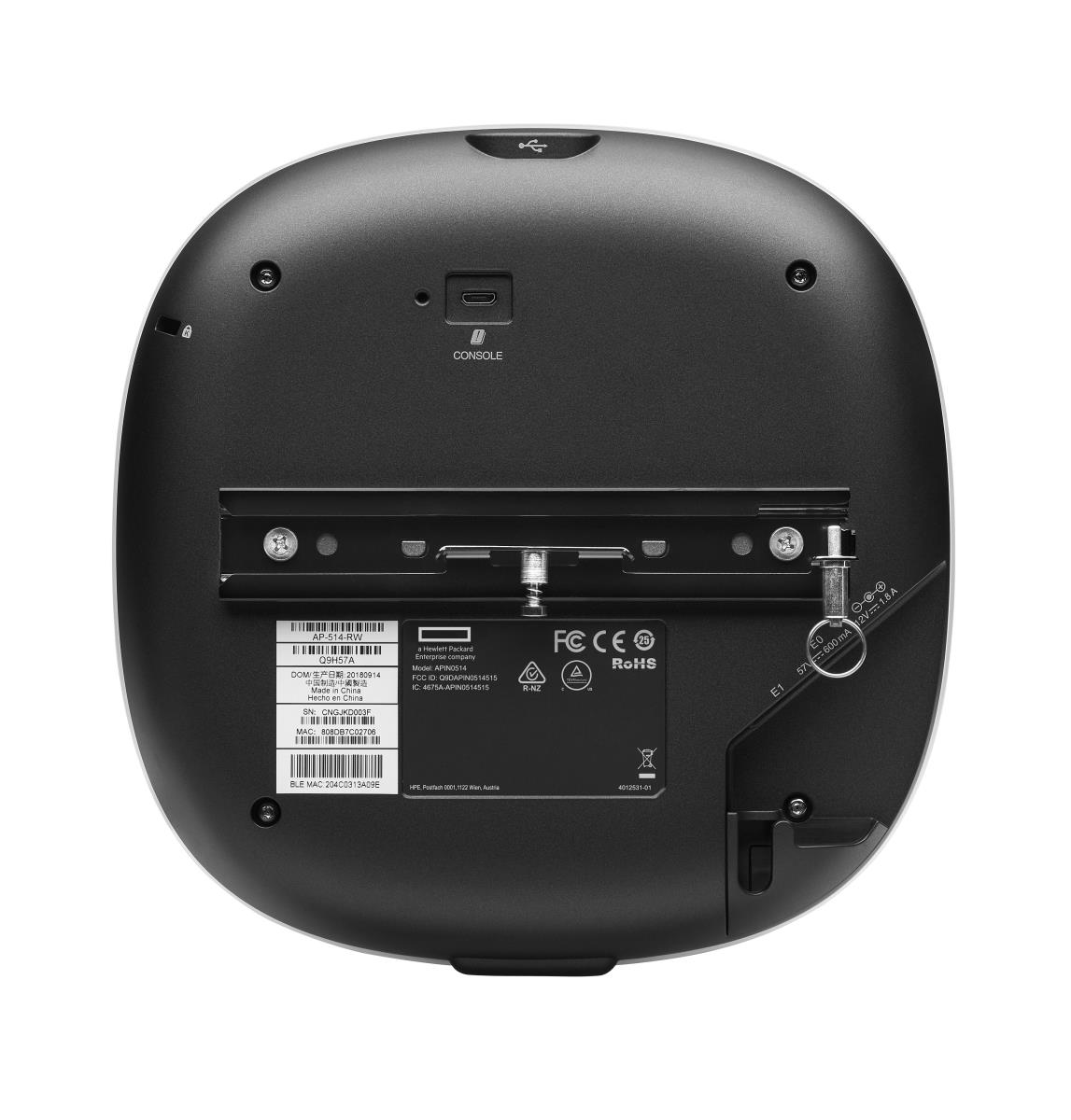

Aruba Networking AP-514 (RW) Dual Radio 4x4/2x2 802.11ax External Antennas Unified Campus AP
ITCurry #: 1171XA88 | Article #: Q9H57A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Aruba Networking 510 Series Campus Access Points deliver Wi-Fi 6 coverage ideal for office spaces, training and meeting facilities, and hospitals. With 2.69 Gbps maximum combined data rate, multi-gigabit Ethernet for fast wired connectivity, and built-in Internet of Things (IoT) radio, the 510 series delivers reliable, high-performance Wi-Fi CERTIFIED for medium density campus environments. The 510 series can be deployed using zero touch provisioning (ZTP) for ease of implementation at remote locations. It is Wi-Fi and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 510 series includes a limited lifetime warranty.
What is new supporting point:
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
It is offered in optional eco-friendly 10-packs
Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 5375 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| Spread spectrum method | DSSS, OFDM |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Security | |
| Security algorithms | WMM, WPA, WPA2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 16 W |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | External |
| Antenna connector type | RP-SMA |
| Number of connectors | 4 |
| Performance | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later. |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certification | UL2043 plenum rating Bluetooth SIG Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 200 mm |
| Height | 46 mm |
| Weight | 810 g |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 220 mm |
| Package height | 72 mm |
| Package weight | 1.01 kg |
| Other features | |
| I/O ports | E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 93% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
