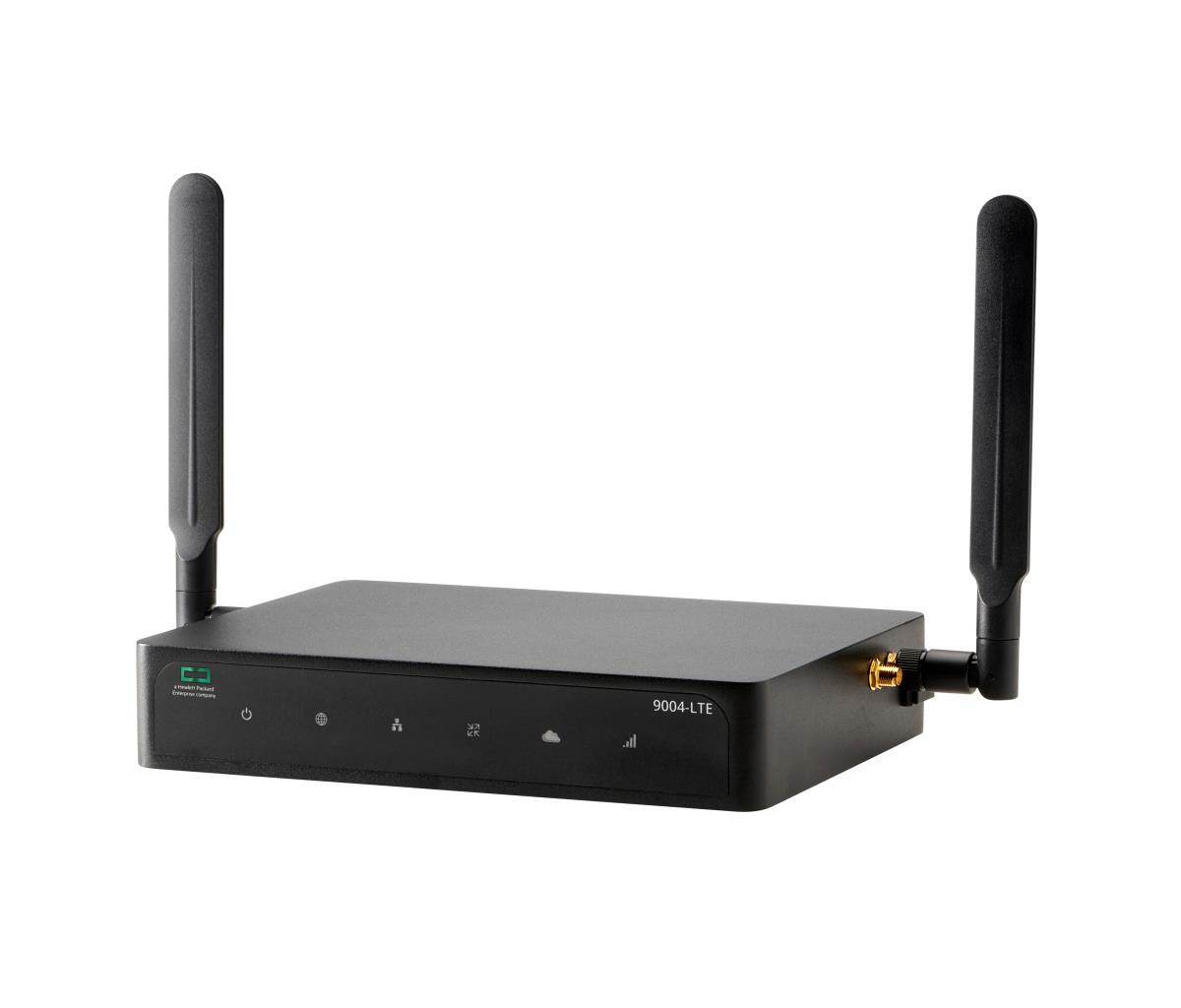

Aruba 9004 RW LTE Branch Gateway
ITCurry #: 1171YH59 | Article #: R3V90A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series can be used as a wireless gateway for enhanced Wi-Fi scalability and security or for SD-WAN capabilities in the branch. Deploying this series as part of the HPE Aruba Networking SD-Branch solution is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, role-based policy enforcement, and path optimization. Designed with enterprise-grade capabilities and compact form factors, including an integrated LTE option, the 9000 Gateway can be easily configured and managed using HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of all network infrastructure.
What is new supporting point:
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
| Design | |
| Product colour | Black |
| Mounting type | Desktop/Rack mounting |
| LED indicators | LAN, Status, System, WAN |
| Features | |
| Antenna type | External |
| Antenna connector type | SMA |
| Antennas quantity | 2 |
| GPS (satellite) | Yes |
| Performance | |
| Control display unit | No |
| Protocols | |
| DHCP client | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 4G LTE category | 12 |
| Mobile network generation | 4G |
| Data network | LTE |
| Downlink/uplink speed | 600/150 Mbit/s |
| Number of concurrent sessions (max) | 2048 |
| Firewall throughput | 4000 Mbit/s |
| 3DES/AES throughput | 4 Gbit/s |
| Security | |
| Access Control List (ACL) | Yes |
| VLAN support | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Console port | micro USB, RJ-45 |
| Number of console ports | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
| Power consumption (max) | 25 W |
| Input voltage | 12v DC, 2.5A AC-to-DC power adapter |
| Input frequency | 47 - 63 Hz |
| Output voltage | 12 V |
| Output current | 2.5 A |
| DC input voltage | 12 V |
| Weight & dimensions | |
| Width | 38.2 mm |
| Depth | 153.1 mm |
| Height | 38.2 mm |
| Weight | 1.14 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | None |
| Warranty | |
| Base Warranty | Non Non |
