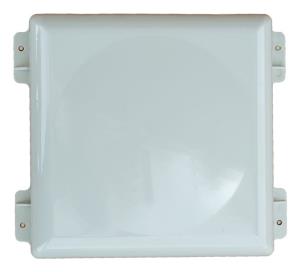

AP-ANT-45 Dual band 90 x 90 degree 5dBi 4 element MIMO 4x RPSMA pigtail antenna
ITCurry #: 1171YL73 | Article #: JW018A
slide 1 of 1
Related products
slide 7 to 11 of 14
Product Information
AP-ANT-45 is a multi-polarized antenna with nominal 90° H x 90° V beamwidths. This antenna is well suited for 2.4 and 5 GHz sector coverage for access.
| Performance | |
| Frequency band | 2.4-2.5/4.9-6.0 GHz |
| Antenna gain (2.4 GHz) | 4.5 dBi |
| Antenna gain (5 GHz) | 5.5 dBi |
| Impedance | 50 O |
| Horizontal beam width | 90ø |
| Vertical beam width | 90ø |
| Antenna gain level (max) | 5.5 dBi |
| Features | |
| Antenna type | Sector antenna |
| Antenna connector type | RP-SMA |
| Connector gender | Male |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Cable length | 0.3 m |
| Mounting | Wall |
| Purpose | Outdoor |
| Housing material | Aluminium, Plastic |
| Power | |
| Power consumption (max) | 6 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 65 øC |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 200 mm |
| Height | 40 mm |
| Weight | 590 g |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |
| Warranty | |
| Base Warranty | Non Non |
AP-ANT-45 Dual band 90 x 90 degree 5dBi 4 element MIMO 4x RPSMA pigtail antenna
348.78
