Ux10 G2-r-ex -10.1in - i5-10210u Fhd Cam W11p
ITCurry #: T6694884 | Article #: UMA154WIXDXE-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
RUGGED MOBILE POWER AT YOUR FINGERTIPS
The versatility to drive cross-sector performance
The UX10 has been designed to deliver portable performance across a range of industries, including Industrial Manufacturing, Public Safety and Utility Services, in even the most demanding environments.
The go-anywhere, ultimately secure rugged tablet
An optional hard handle makes the UX10 easy to grip and carry, allowing you to take the computing power you require to the place it is most needed.

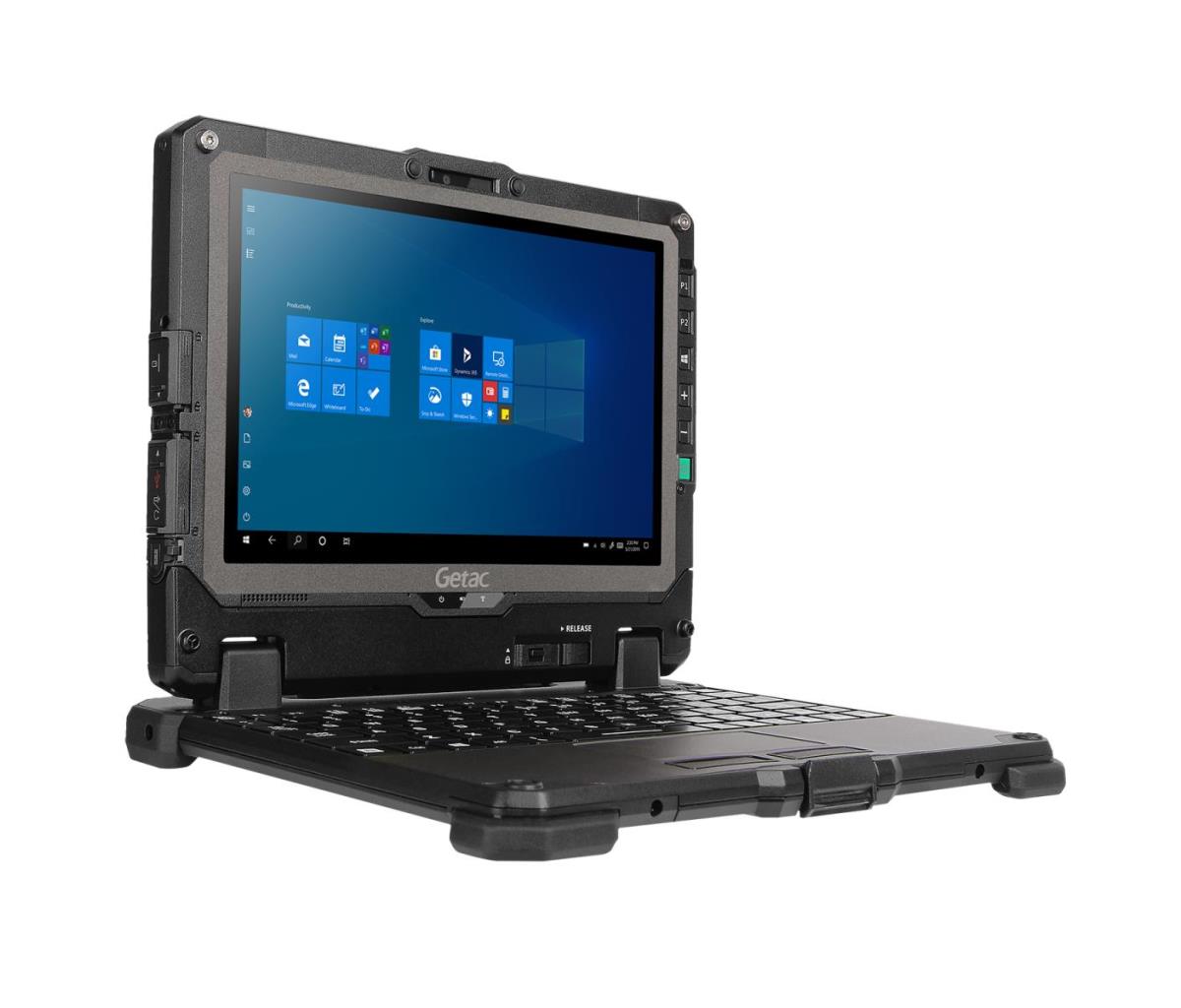

A detachable keyboard with retractable hard handle further optimises worker productivity. For total security in authenticating users, the UX10 has an optional integrated fingerprint reader, smart card reader, magnetic stripe reader, an RFID reader, and can also offer a Windows Hello face-authentication camera.
The connected tablet
The UX10 seamlessly supports digital transformation, offering digital connectivity through BT, WiFi, and optional 4G LTE. An optional RS232 port can support legacy equipment. An optional RFID reader allows information feed-back into the management system. All these functionalities ensure the UX10 stays connected no matter whether outdoors or indoors.
The ‘always-on’ tablet
In a world where devices need to work 24/7/365 power-up continuity is essential – in portable devices that means a focus on battery configuration. The UX10 offers a range of battery configurations and options, including an optional high capacity battery and an optional bridge battery that ensures a ‘hot swap’ capability. In effect you need never power-down the UX10, making it ideal if the device is pooled between workers or required across multiple work shifts.
The usable-in-all conditions tablet
Drop resistance and temperature tolerance aside, the LumiBond® screen ensures usability in all conditions. 1000 nits of brightness make the display readable even in sunlight, whilst rain and glove touch capability guarantee visibility and productivity in even the most extreme conditions.
For Infection Prevention
Designed with Infection prevention in mind, the UX10 is also available with sealed buttons allowing frequent cleaning to support infection prevention of medical healthcare professionals.
ATEX and IECEx Certified
Certified for hazardous locations, the UX10 fully rugged tablet offers optional ATEX and IECEx Zone 2/22 certification for use in potentially explosive atmospheres.
| Display | |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1200 pixels |
| Display technology | LCD |
| Panel type | IPS |
| Display brightness | 1000 cd/mý |
| Touchscreen type | Capacitive |
| HD type | WUXGA |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i5 |
| Processor generation | 10th gen Intel© CoreT i5 |
| Processor model | i5-10210U |
| Processor cores | 4 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 1.6 GHz |
| Configurable TDP-down frequency | 0.8 GHz |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Card reader integrated | No |
| Compatible memory cards | Not supported |
| Storage media | SSD |
| Graphics | |
| Graphics card family | Intel |
| Graphics card | UHD Graphics |
| Camera | |
| Rear camera type | Single camera |
| Rear camera resolution (numeric) | 8 MP |
| Auto focus | Yes |
| Front camera | Yes |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Design | |
| Device type | Tablet PC |
| Form factor | Slate |
| Product colour | Black |
| Protection features | Temperature proof, Vibration proof |
| International Protection (IP) code | IP65 |
| Performance | |
| Trusted Platform Module (TPM) | Yes |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Software | |
| Platform | Windows |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Battery | |
| Battery included | Yes |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 4200 mAh |
| Battery voltage | 11.1 V |
| Power | |
| AC adapter power | 65 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 276.8 mm |
| Depth | 194.5 mm |
| Height | 23.5 mm |
| Weight | 1.22 kg |
| Operational conditions | |
| Operating temperature (T-T) | -29 - 63 øC |
| Storage temperature (T-T) | -51 - 71 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Warranty | |
| Base Warranty | Non Non |
