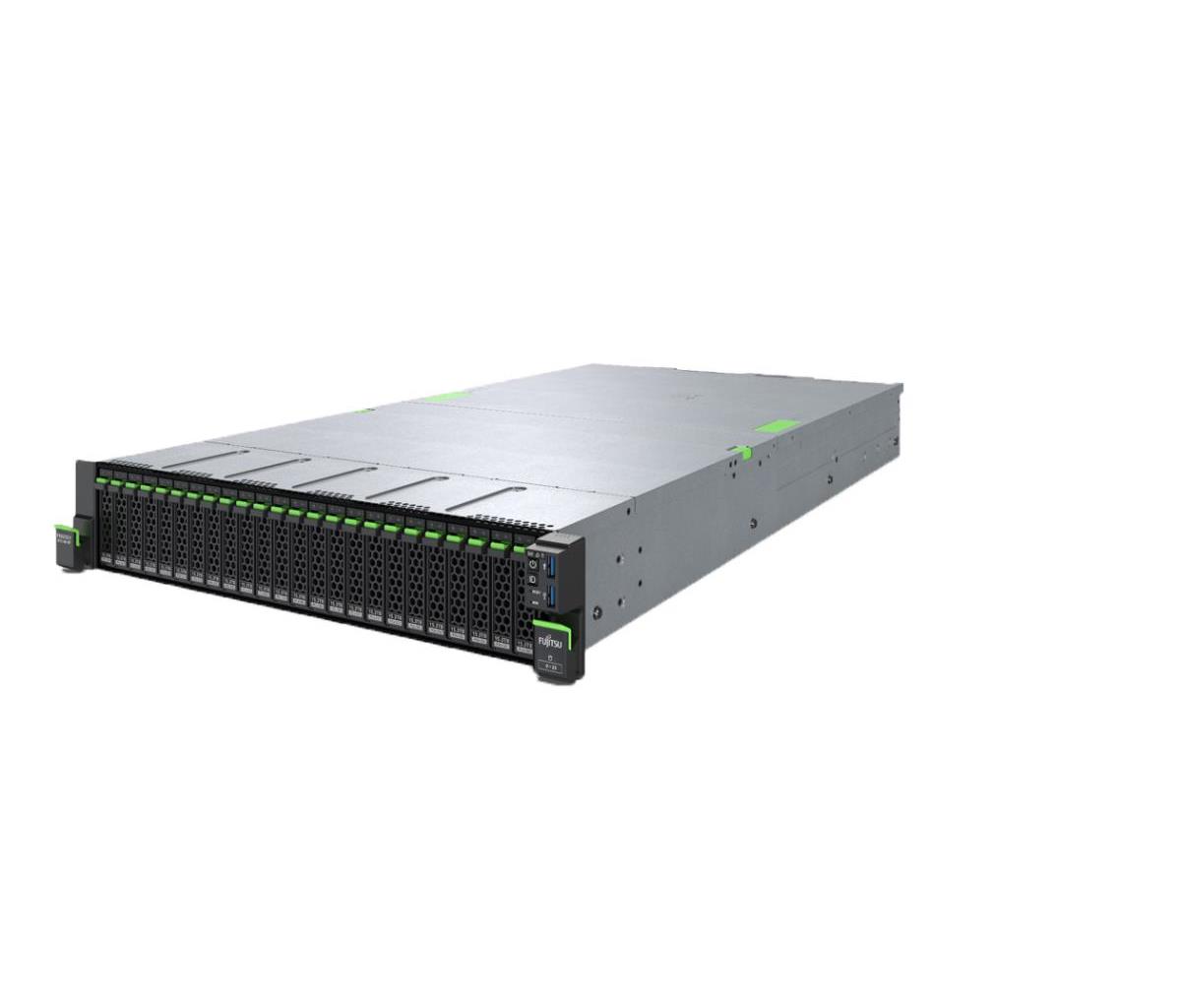

Primergy Rx2540 M7 Rack Server - 6434 8c Gold - 32GB - 16xsff - 3258i - 1800w
ITCurry #: 1855AC00 | Article #: VFY:R2547SC380IN
Related products
Product Information
Unmatched Scalability and Performance
2U, 2-socket platform that provides scalability and performance to adapt to a variety of applications. Drive demanding workloads by latest 4th Generation Intel® Xeon® Scalable Processors with up to 60 cores per CPU.
Accelerate IT Transformation
Transform your data center for modern operations and drive demanding workloads with 32 DIMM modules (up to 8 TB). DDR5 DIMM memory provides fast, high capacity for memory intensive workloads.
Extensive Expandability
Maximize storage performance with up to 12x 3.5” or up to 24x 2.5” storage devices and ensure application performance scales to meet demands. Up to 8 PCIe 5.0 slots and OCP v3 adapters also ensure enough growth opportunities.
Agile Infrastructure Management
As you scale your infrastructure, scale your profitability with embedded intelligence from iRMC S6 as well as Infrastructure Manager (ISM) which enables organizations to have centralized control over the infrastructure using a single user interface.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© Gold |
| Processor model | 6434 |
| Processor frequency | 3.7 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 8 |
| Processor cache | 22.5 MB |
| Motherboard chipset | Intel C741 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 8 TB |
| Storage | |
| Total storage capacity | 0 GB |
| HDD size | 2.5" |
| Number of HDDs supported | 16 |
| RAID support | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black |
| Redundant fans support | Yes |
| Performance | |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Windows Server 2022 Datacenter Windows Server 2022 Standard Windows Server 2019 Datacenter Windows Server 2019 Standard Windows Server 2019 Essentials SUSE© Linux Enterprise Server 15 Red Hat© Enterprise Linux 8 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 900 W |
| Number of main power supplies | 2 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Weight & dimensions | |
| Width | 482.2 mm |
| Depth | 800 mm |
| Height | 86.9 mm |
| Weight | 32 kg |
| Warranty | |
| Base Warranty | Non Non |
