Meshify 2 Solid Black
ITCurry #: S5842386 | Article #: FD-C-MES2A-01-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

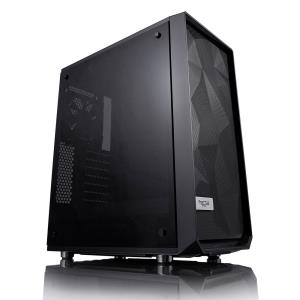

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.
Detachable front filter
- New front nylon filter that can be removed for increased airflow
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans
Superlative storage
- Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
- Transformable interior design utilizing a movable wall for enhancing custom builds
- The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
- Tool-less, top-latching side panels allow quick access while preventing accidental drops
Extremely flexible
- Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
- Easily holds large motherboards up to and including 285 mm E-ATX
Open and interchangeable
Remove the entire top to build and route with zero hindrance.
Type-C Interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Versatile Multibracket
Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
Cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
| Design | |
| Material | Steel |
| Form factor | Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 6 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 9 |
| Number of storage drives supported | 23 |
| Side window | N |
| Suitable for | Gaming |
| Anti-dust filter | Y |
| Cable management | Y |
| Reset button | Y |
| On/off button | Y |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 31.5 cm |
| Maximum PSU length | 25 cm |
| Power supply | |
| Power supply included | N |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
| Audio input | Y |
| Audio output | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Cooling | |
| Front fans installed | 2x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120,140 mm |
| Front radiator fan sizes supported | 280,360 mm |
| Rear radiator fan sizes supported | 120 mm |
| Top radiator fan sizes supported | 360,420 mm |
| Storage | |
| HDD/SSD combo cage | Y |
| Number of HDDs supported | 18 |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 542 mm |
| Height | 474 mm |
| Weight | 10.1 kg |
| Packaging data | |
| Package width | 542 mm |
| Package depth | 634 mm |
| Package height | 324 mm |
| Package weight | 12.8 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Warranty | |
| Base Warranty | Non Non |
