Product Information
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
In living color

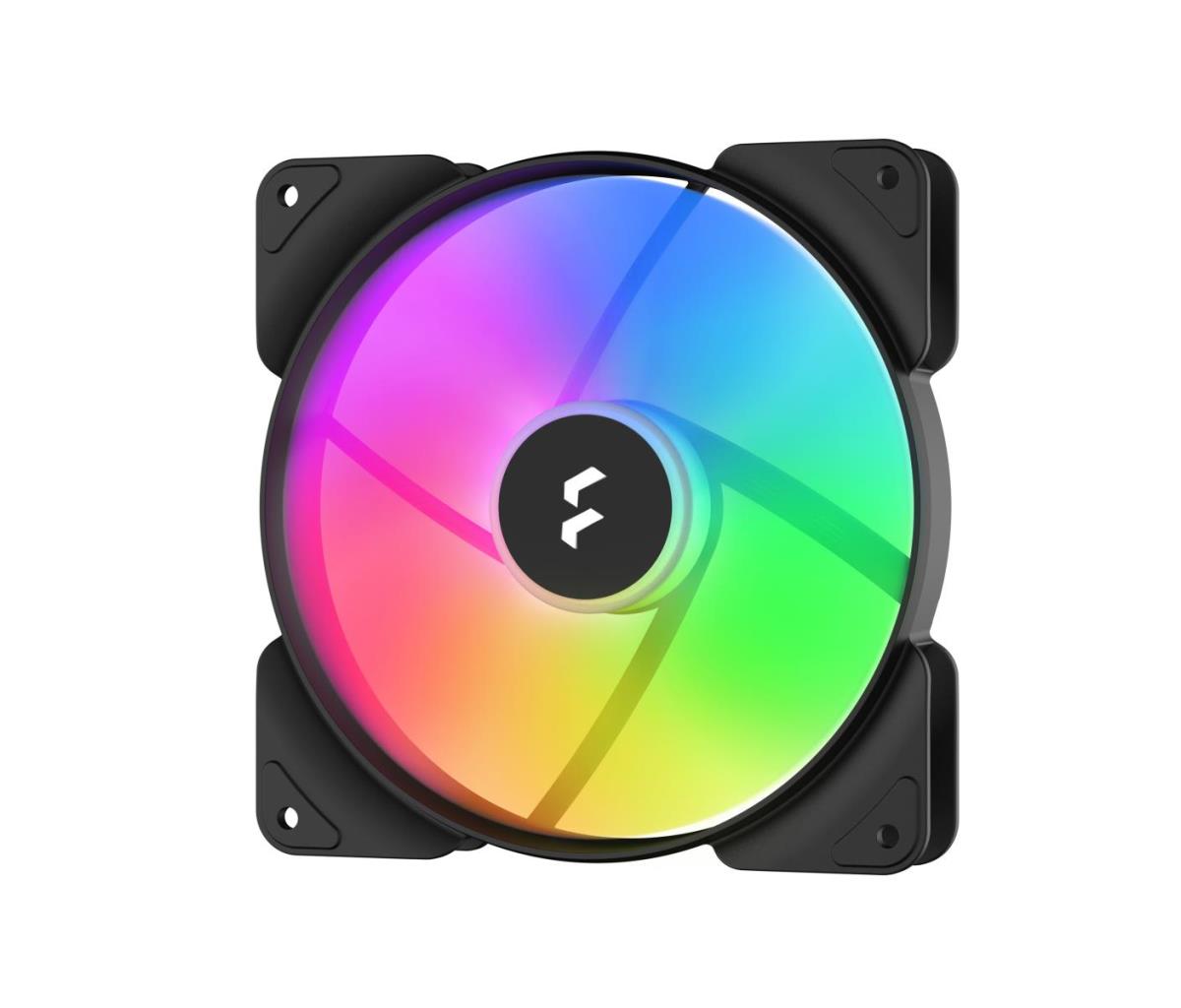

- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than the standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency

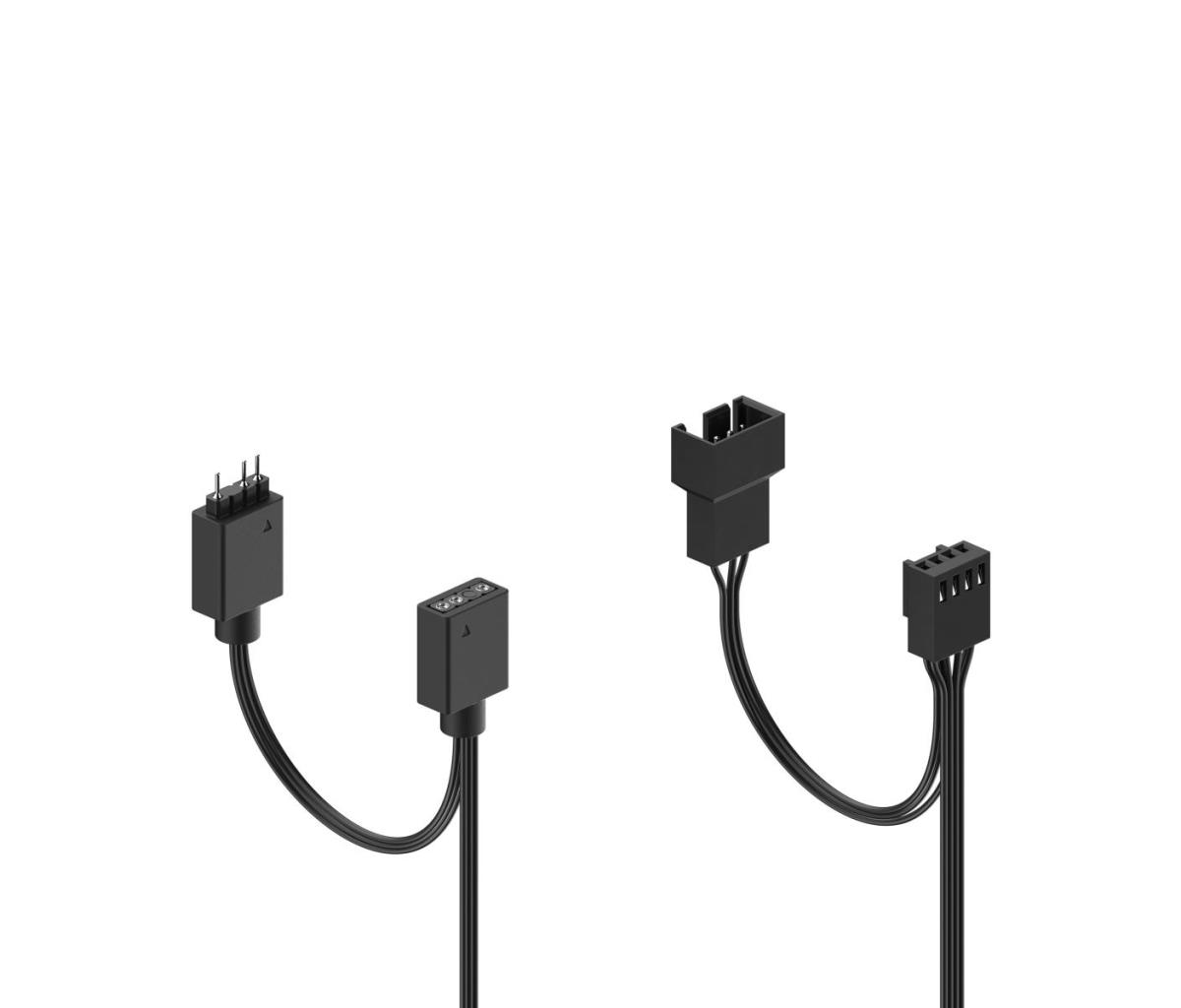

Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
| Performance | |
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1700 RPM |
| Noise level (low speed) | 10 dB |
| Noise level (high speed) | 35.5 dB |
| Minimum airflow (imperial) | 20 cfm |
| Maximum airflow | 78 cfm |
| Airflow | 132.5 mü/h |
| Minimum air pressure | 0.3 mmH2O |
| Maximum air pressure | 2.05 mmH2O |
| Bearing type | Rifle bearing |
| Quantity per pack | 3 pc(s) |
| Mean time between failures (MTBF) | 90000 h |
| Design | |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Number of fan blades | 7 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Power | |
| Power consumption (typical) | 2.16 W |
| Voltage | 12 V |
| Rated voltage | 5 V |
| Starting voltage | 7 V |
| Maximum current | 0.24 A |
| Weight & dimensions | |
| Weight | 155 g |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Cable length | 0.5 m |
| Package width | 143 mm |
| Package depth | 212 mm |
| Package height | 87 mm |
| Package weight | 471 g |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 12 |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Warranty | |
| Base Warranty | Non Non |
