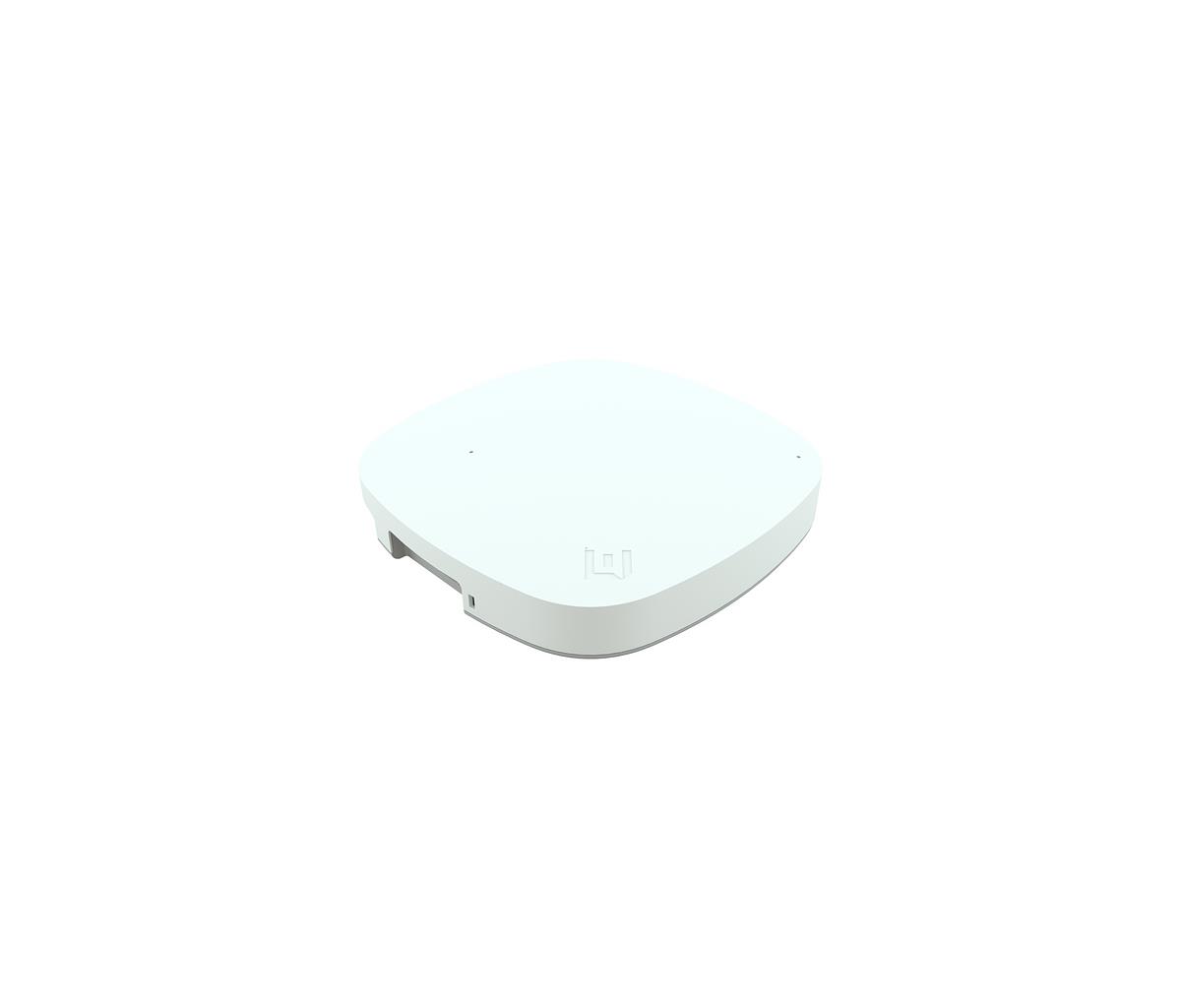

Ap4000 Wi-Fi 6e Ap 2.4 GHz 5 GHz 6 GHz Multirate Port. Integrated Light Power Sensors Ble/zigbee
ITCurry #: 89346223 | Article #: AP4000-WW-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
WI-FI 6E TECHNOLOGY
Wi-Fi 6E leverages 802.11ax/Wi-Fi 6 capabilities such as high-density, high-capacity, and high-efficiency performance, and extends these capabilities to the 6 GHz band. The vast expansion of frequency enables new use cases and offers improved user experiences, particularly in mission-critical and dense environments.
UNIVERSAL HARDWARE
AP4000 is a universal hardware platform, which simplifies your deployment experience through powerful cloud management and simplified licensing. The AP4000 can run multiple Extreme operating systems, providing flexibility and choice while minimizing total cost of ownership.
SUPERIOR TRI-FREQUENCY RADIO PERFORMANCE
The industry’s first Wi-Fi 6E tri-radio AP is capable of multiple operating modes, optimizing for maximum performance without trading off security. The AP4000 can transmit with three data radios or with two data radios and dedicated tri-frequency sensor.
| Features | |
| 2.4 GHz | Y |
| 5 GHz | Y |
| Maximum data transfer rate | 3900 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3at, IEEE 802.3az |
| Channels quantity | 87 channels |
| Bluetooth | Y |
| Bluetooth version | 5.2 |
| MIMO | Y |
| MIMO type | Multi User MIMO |
| Modulation | 256-QAM, 1024-QAM, DSSS, OFDM |
| Security | |
| Security algorithms | WPA3 |
| Number of SSID supported | 24 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | Micro-USB, USB Type-A |
| Power | |
| Power over Ethernet (PoE) | Y |
| Power consumption (typical) | 12.3 W |
| Power consumption (max) | 16.6 W |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Reset button | Y |
| LED indicators | Y |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 7 |
| Weight & dimensions | |
| Width | 205 mm |
| Depth | 205 mm |
| Height | 37 mm |
| Weight | 850 g |
| Packaging content | |
| Mounting kit | Y |
| Quick start guide | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 50% |
| Operating temperature (T-T) | -40 - 70 øC |
| Storage temperature (T-T) | 0 - 95 øC |
| Warranty | |
| Base Warranty | Non Non |
