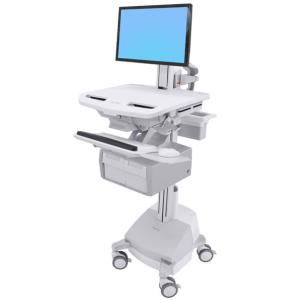

Styleview Cart With LCD Arm SLA Powered 2 Drawers (2 Medium Drawers X 1 Row) CHE
ITCurry #: 91503769 | Article #: SV44-12A1-C
 Related products
Product Information
Stay productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, side-to-side LCD and keyboard motion, bi-focal viewing and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication.
- Dependable fifth-generation power system with easy to replace batteries
- For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A
- Auto-locking drawer system: simple and efficient medication management at the point-of-care reduces opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)
- Drawer system supports “Pharmacy mode,” allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication
- Extra rows of drawers may be added—up to a maximum of 5 rows

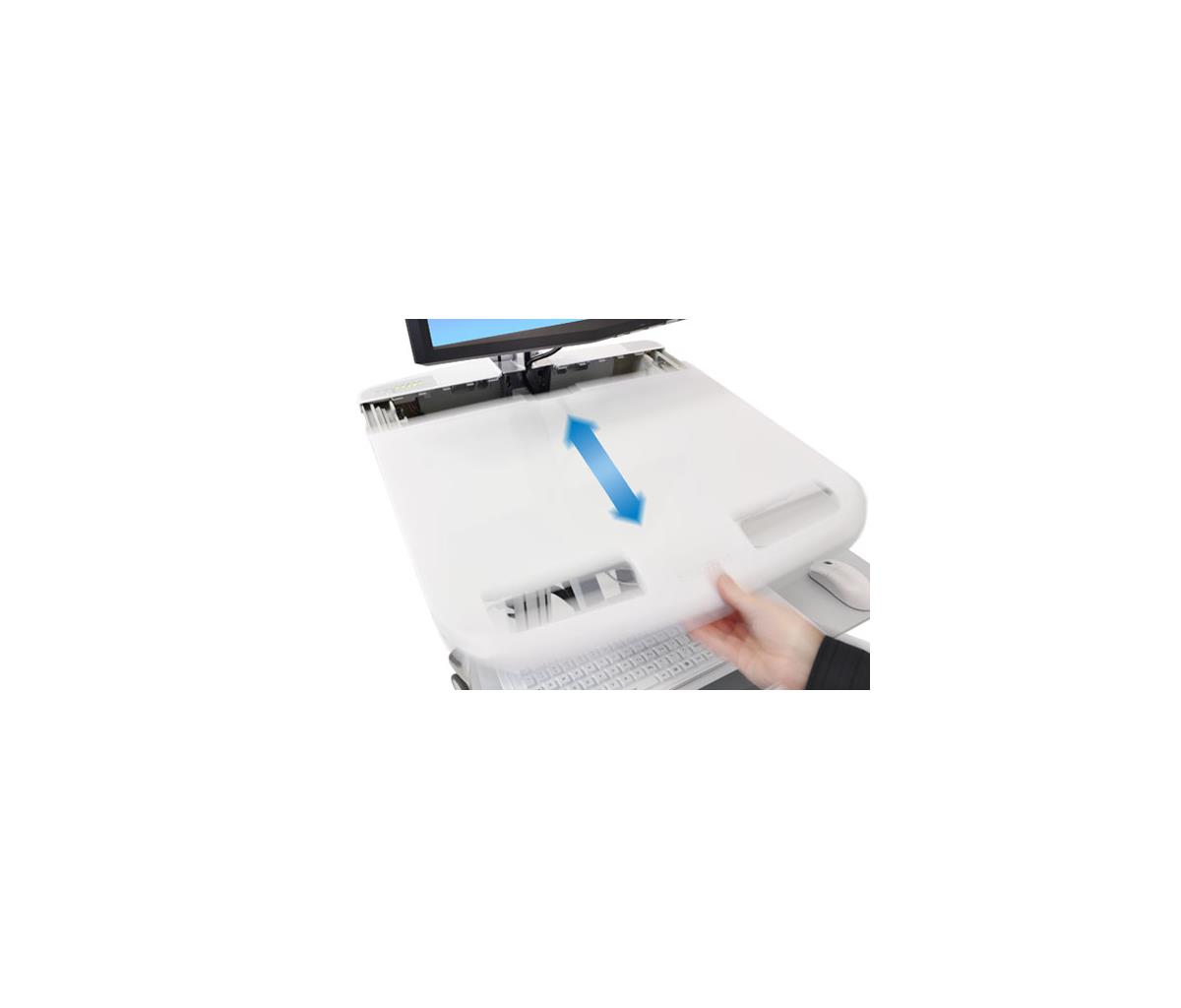

- Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment—helps promote caregiver wellness and productivity
- StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
- Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

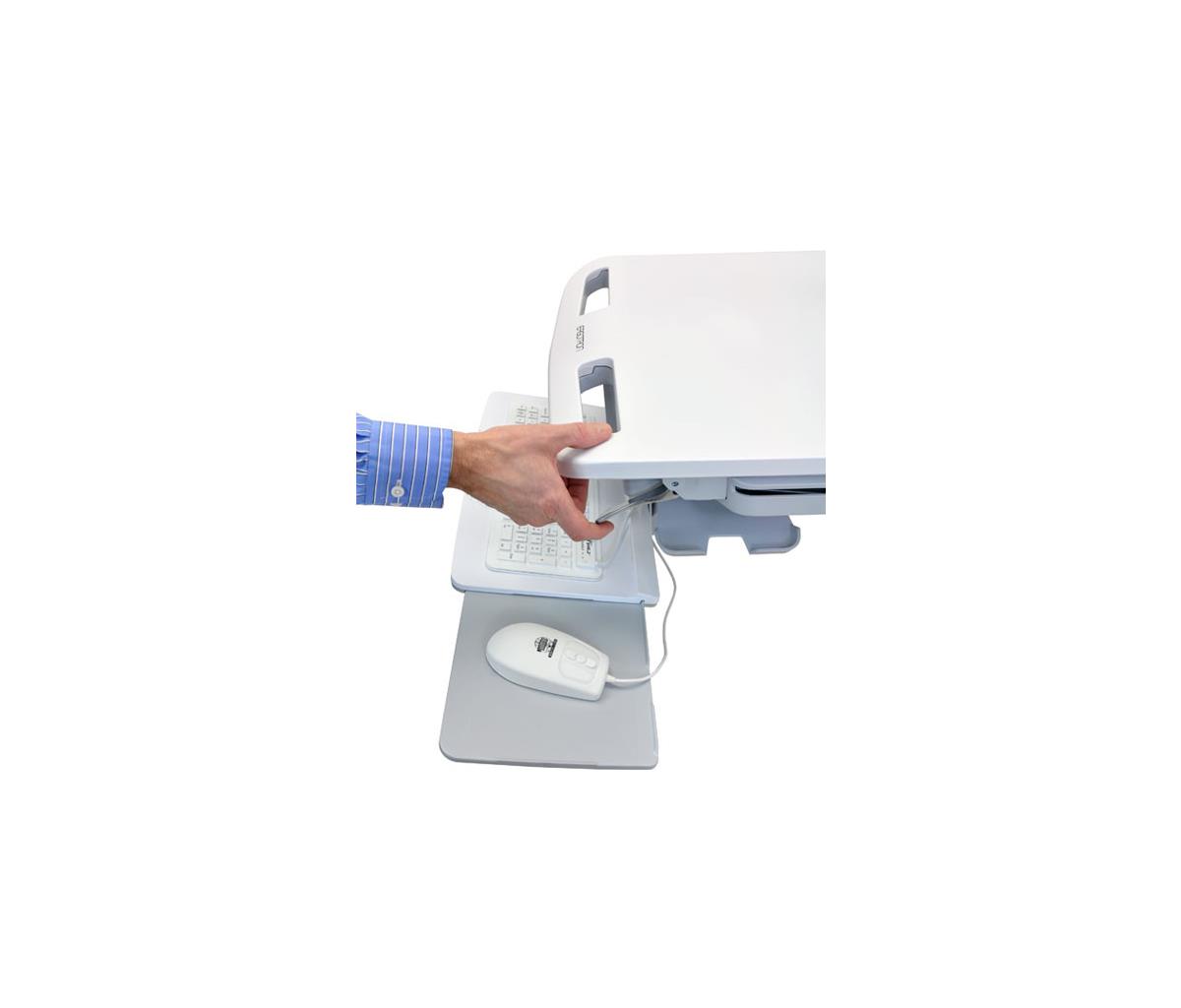

- LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC
| Features | |
| Product colour | Aluminium, Grey, White |
| Material | Aluminium, Plastic, Zinc steel |
| Recommended usage | Flat panel |
| Type | Multimedia cart |
| Maximum weight capacity | 16.8 kg |
| Maximum screen size | 61 cm (24") |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Turn angle | 360ø |
| Tilt angle range | 0 - 65ø |
| Pan range | 0 - 180ø |
| Number of drawers | 2 drawer(s) |
| Keyboard tray | Yes |
| Locking | Yes |
| Height adjustment | Yes |
| Certification | REACH, WEEE, EU (94/62/EC) |
| Power | |
| Built-in charger | Yes |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Height adjustment | 68 cm |
| Weight | 70.3 kg |
| Packaging data | |
| Package weight | 85.7 kg |
| Package dimensions (WxDxH) | 620 x 870 x 1420 mm |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 94031098 |
