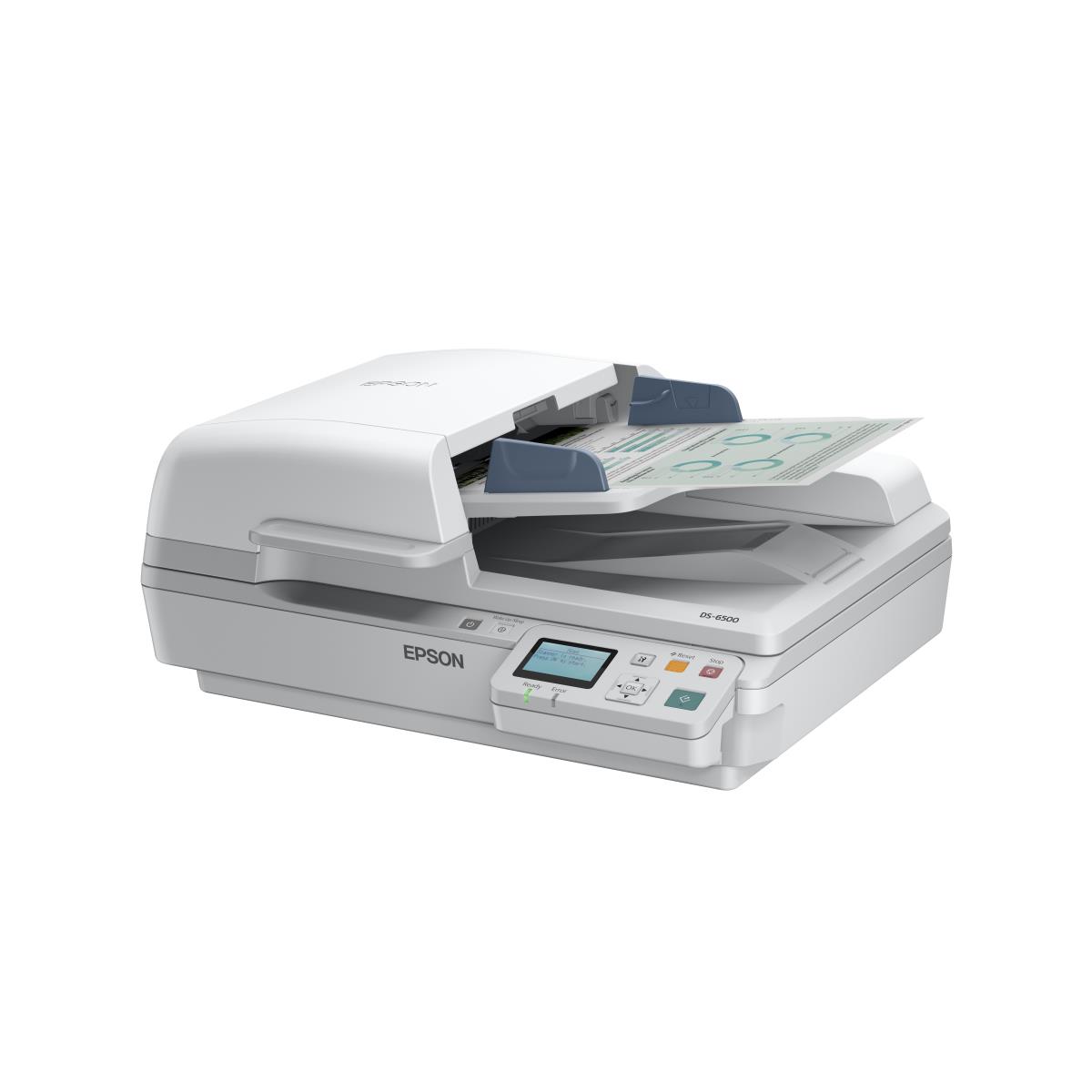

Workforce Ds-7500n - Scanner - 1200 Dpi - USB 2.0 / Ethernet
ITCurry #: 1925E398 | Article #: B11B205331BT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HIGH SPEED A4 NETWORKED SCANNER
Improve document workflow processes with this reliable A4 network-ready departmental scanner.
Engineered to integrate seamlessly into document management systems, this networked document scanner ensures heavy-duty scanning jobs are performed quickly, efficiently & effortlessly.
The Epson WorkForce DS-7500N can handle large batches of documents in a single go, quickly and efficiently. With a scanning speed up to 40ppm/80ipm, this departmental scanner ensures fast and trouble-free scanning due to a 100-page ADF, one-pass duplex scanning, and Double Feed Detection.
Epson Document Capture Pro makes it easy to integrate high-speed scanning into your document management system, speeding up workflow and enabling users to capture, convert and distribute scanned information in virtually any document repository or document management system.

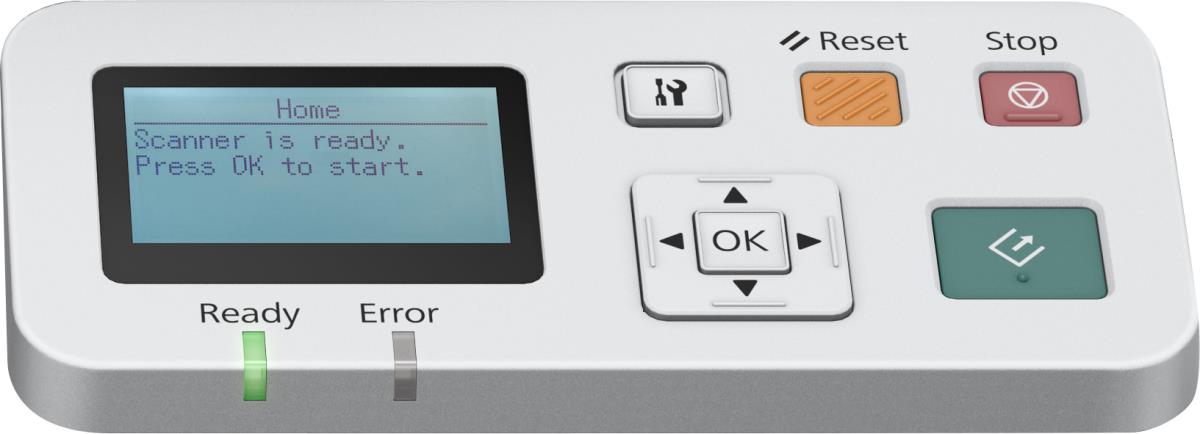

The scanner and its features can be shared between multiple users using the built-in Network Interface Panel. Combined with Document Capture Pro, the Network Interface Panel allows users to benefit from Push Scan features and customise ‘scan to’ job functions, such as ‘scan to email’ or ‘scan to Microsoft SharePoint®’, among others. You can also benefit from its optional Push Scan features to increase productivity. These features enable complicated tasks to be carried out effortlessly, increasing users' acceptance and eliminating training requirements.
Epson ReadyScan LED technology eradicates warm-up time, guarantees an absence of mercury, and lowers power consumption. These elements create an environment friendly device for your office workspace.
- High speed scanner: Scan up to 40ppm/80ipm.
- High capacity ADF: 100-page ADF capacity.
- Hassle-free: Double Feed Detection.
- Network-ready: Network Interface Panel.
- Push Scan features: Simple one-touch scanning.
| Scanning | |
| Maximum scan size | 216 x 1016 mm |
| Optical scanning resolution | 1200 x 1200 DPI |
| Colour scanning | Y |
| Duplex scanning | Y |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Design | |
| Scanner type | Flatbed & ADF scanner |
| Product colour | White |
| Display | LCD |
| Touchscreen | N |
| Built-in display | N |
| Performance | |
| Light source | ReadyScan LED |
| Scan file formats | JPG, PDF, TIFF |
| Daily duty cycle (max) | 4000 pages |
| Scan to | E-mail, FTP |
| Scan drivers | ISIS, TWAIN, WIA |
| Paper handling | |
| Scanning media types supported | Plain paper |
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Letter | Y |
| Legal | Y |
| Ports & interfaces | |
| Standard interfaces | Ethernet |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 49 W |
| Power consumption (standby) | 4.8 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 316 mm |
| Package depth | 586 mm |
| Package height | 496 mm |
| Package weight | 12.46 g |
| Network | |
| Ethernet LAN | Y |
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP, IPv6 |
| Features | |
| Country of origin | China |
| System requirements | |
| Compatible operating systems | Mac OS 10.4.11+ Presentation Server 4.5 Terminal Service Windows 7 (32/64-bit) Windows 8 Windows Server 2003 (32/64-bit) Windows Server 2008 (32/64-bit) Windows Server 2008 R2 Windows Vista (32/64-bit) Windows XP (32/64-bit) Windows server 2003 R2 XenApp 5.0 XenApp 6.0 |
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| USB required | Y |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Storage temperature (T-T) | -25 - 60 øC |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 495 mm |
| Depth | 360 mm |
| Height | 217 mm |
| Weight | 10.3 kg |
| Other features | |
| Network ready | Y |
| Networking features | Gigabit Ethernet |
| Simplex scan speed (colour) | 40 ppm |
| Cabling technology | 10/100/1000-BaseT(X) |
| Technical details | |
| Harmonized System (HS) code | 84716070 |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 2.05 m |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 4 pc(s) |
| Products per pallet (UK) | 24 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 2.05 m |
| Warranty | |
| Base Warranty | Non Non |
