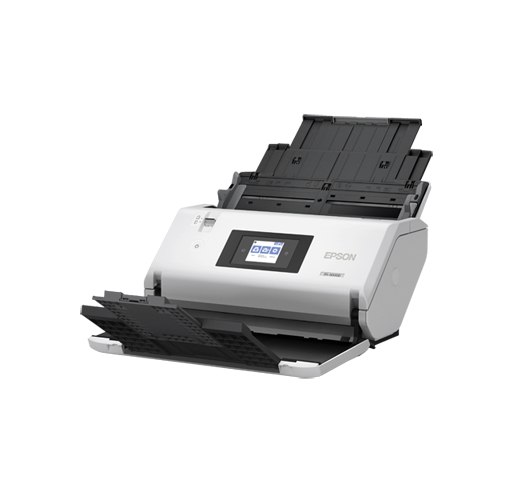

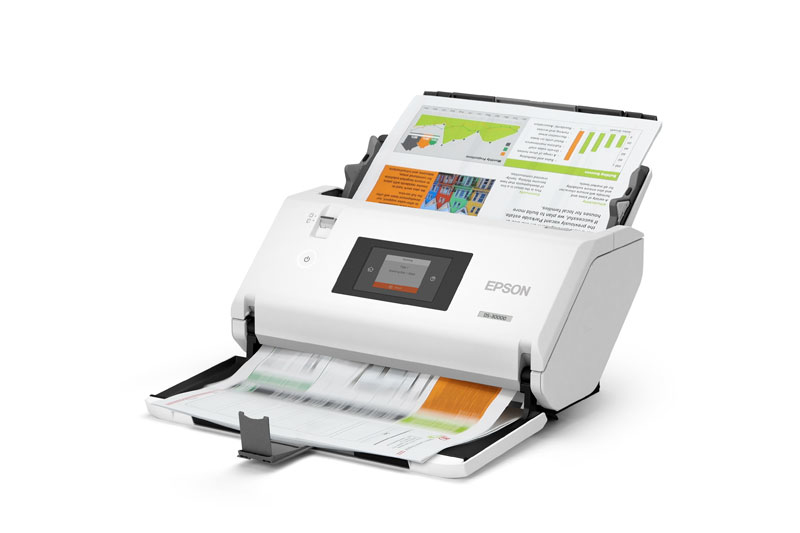

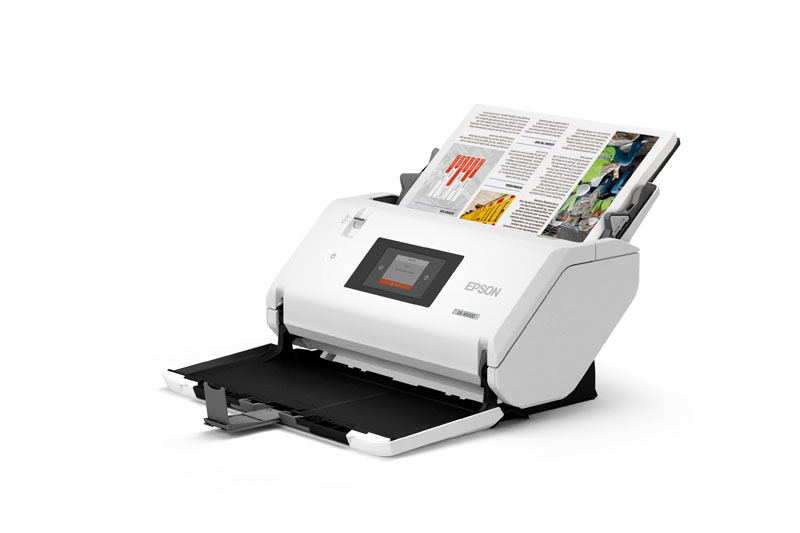

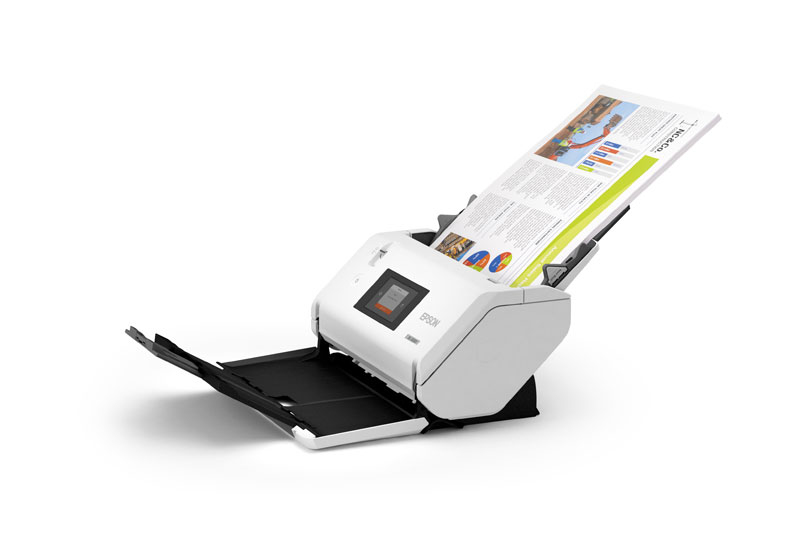

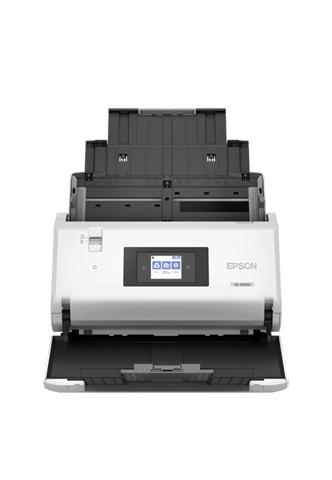

Fast A3 sheetfed scanner
Innovative, 90ppm, heavy-duty A3 document scanner with the flexibility and performance to meet a variety of scanning environments.
Transform your scanning environment with the DS-32000 – a high-performance 90ppm scanner that adjusts to your requirements. Using advanced technology and with versatile media handling, you can confidently scan up to 40,000 pages a day.
Thanks to Epson's new Complex Production Architecture, the DS-32000 has been engineered to the highest standards to meet the demands of busy office environments.

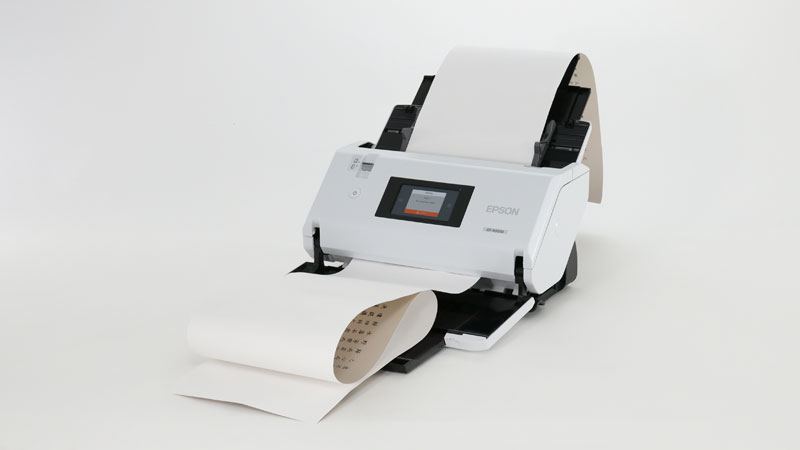

High in capacity and with a robust design, the Automatic Document Feeder (ADF) has the ability to scan the widest range of media in its class. Scan passports, passbooks, ID cards and large-format documents.

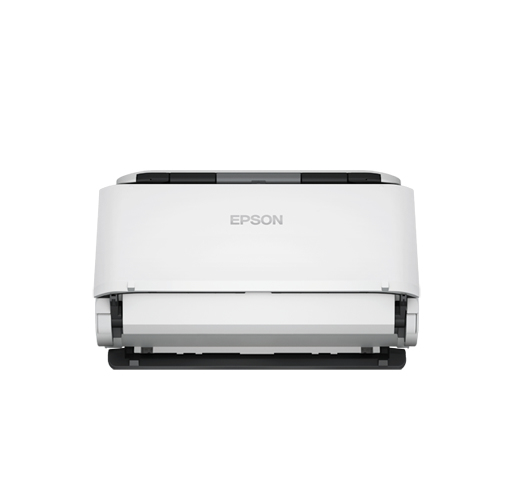

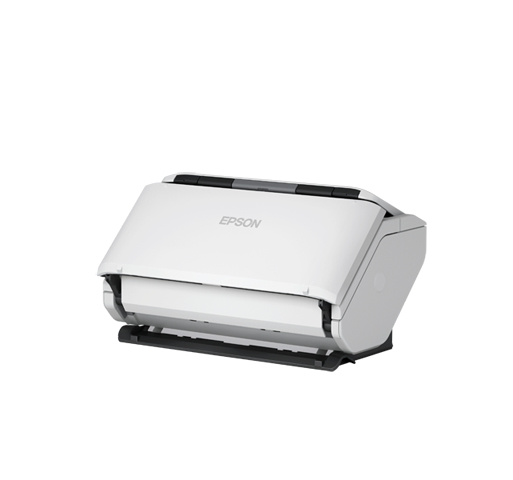

The DS-32000 features a unique adjustable chassis design - Normal, Horizontal and Compact - allowing customers to choose the best physical position for their scanning needs. When in the compact position, the unit folds for easy storage.

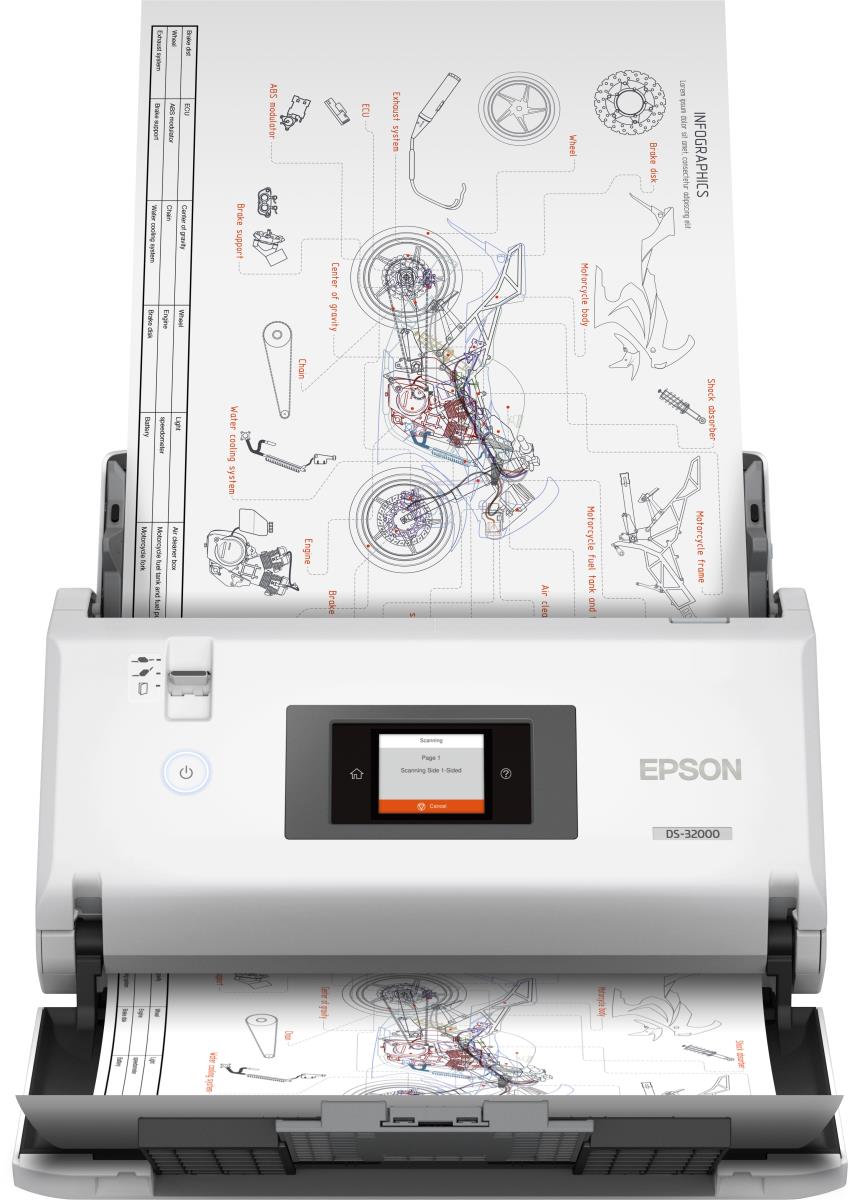

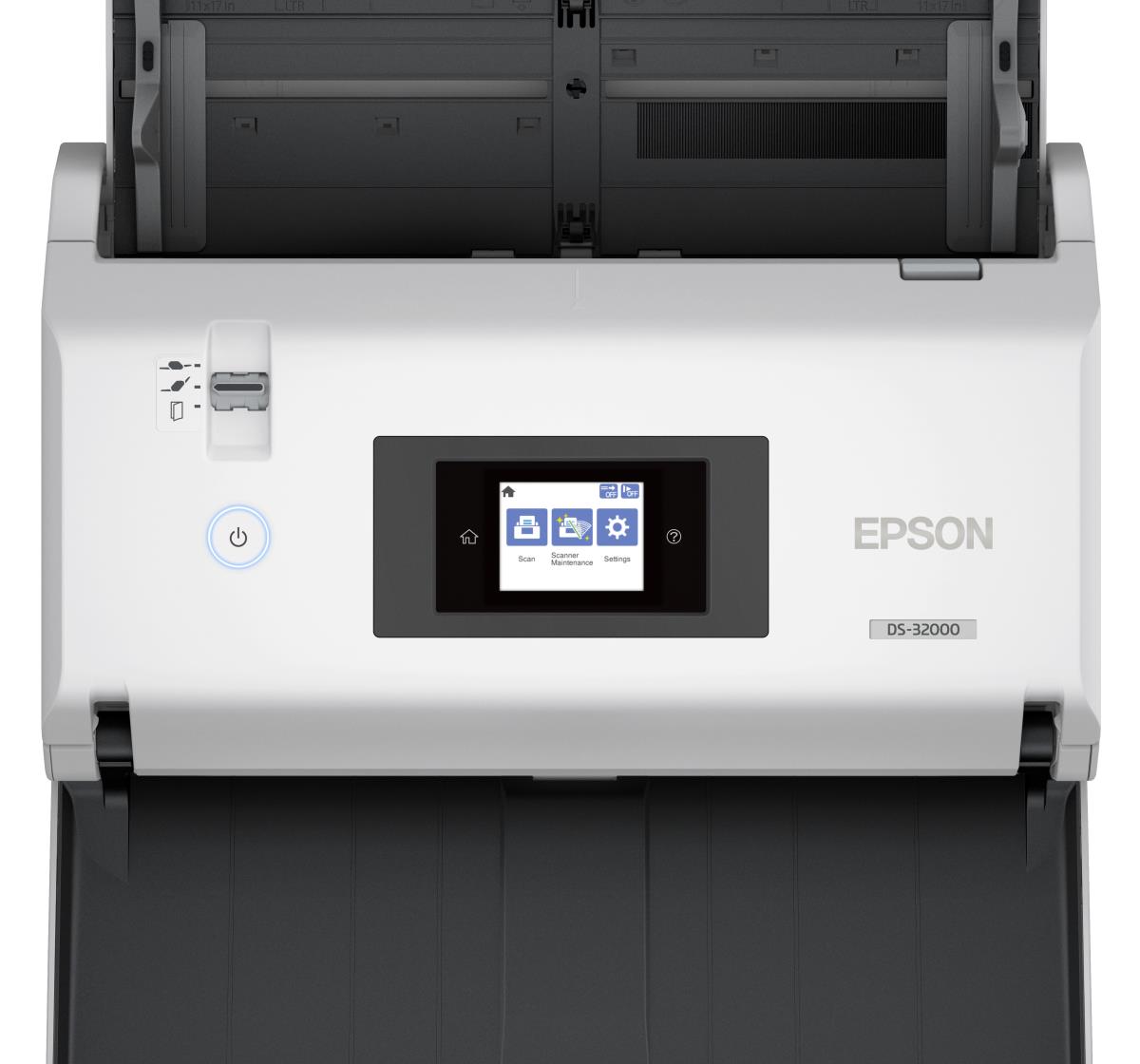

Put users in control with a 2.7" backlit touchscreen that can display pre-defined scan jobs and highlights machine cleaning and maintenance requirements with easy-to-follow, step-by-step instructions.
The inbuilt advanced paper-protection sensors also prevent documents from being damaged and ultra-sonic sensors ensure all documents are scanned, maintaining data integrity.
The DS-32000 comes with Document Capture Pro 3.0 software with inbuilt OCR functionality supporting crisp, clear images. A wide range of drivers, including TWAIN, ISIS, WIA, SANE, and ICA, allow for easy integration into most document management systems.
For added flexibility and convenience, the optional A4 (DS-5500) and A3 (DS-50000) flatbed scanners enable scanning of books, bound, and other media.
| Scanning | |
| Maximum scan size | 304.8 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 10 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 24 bit |
| ADF scan speed (b/w, A4) | 90 ppm |
| ADF scan speed (colour, A4) | 90 ppm |
| Design | |
| Scanner type | Sheet-fed scanner |
| Product colour | White |
| Display | LCD |
| Display diagonal | 6.86 cm (2.7") |
| Touchscreen | Yes |
| Colour display | Yes |
| Built-in display | Yes |
| Performance | |
| Sensor type | CIS |
| Light source | ReadyScan LED |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 40000 pages |
| Image quality improvement | Dust removal, Grain reduction, Unsharp mask, Noise reduction |
| Scan to | E-mail, Software, Print, Network folder, USB, PC |
| Scan drivers | TWAIN, WIA, ISIS, SANE, ICA |
| Ultrasonic double sheet detection | Yes |
| Ultrasonic sensor | Yes |
| Scanning noise level | 53 dB |
| Sound pressure level (max) | 53 dB |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 120 sheets |
| Paper handling | |
| Scanning media types supported | Plain paper, Envelopes, Post Card(JPN), Business Card, Plastic Card |
| Maximum ISO A-series paper size | A3 |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6, A7, A8 |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| ISO C-series sizes (C0...C9) | C4, C5, C6 |
| Legal | Yes |
| Paper tray media weight | 20 - 413 g/mý |
| Auto Document Feeder (ADF) media weight | 20 - 413 g/mý |
| Maximum scan area (ADF) | 304.8 x 5588 mm |
| Minimum scan area (ADF) | 50.8 x 69 mm |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces | USB, USB 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 11 W |
| Power consumption (off) | 0.1 W |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.4 W |
| Features | |
| Country of origin | Indonesia |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 460 mm |
| Package height | 355 mm |
| Package weight | 8.44 kg |
| System requirements | |
| Compatible operating systems | Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP SP3 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Storage temperature (T-T) | 60 - 25 øC |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
| Weight & dimensions | |
| Width | 371 mm |
| Depth | 167 mm |
| Height | 245 mm |
| Weight | 6.9 kg |
| Packaging content | |
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Bundled software | Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2 |
| Other features | |
| Output resolutions | 600 dpi |
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Logistics data | |
| Products per pallet | 30 pc(s) |
| Products per pallet (UK) | 45 pc(s) |
| Harmonized System (HS) code | 84716070 |
| Warranty | |
| Base Warranty | Non Non |
