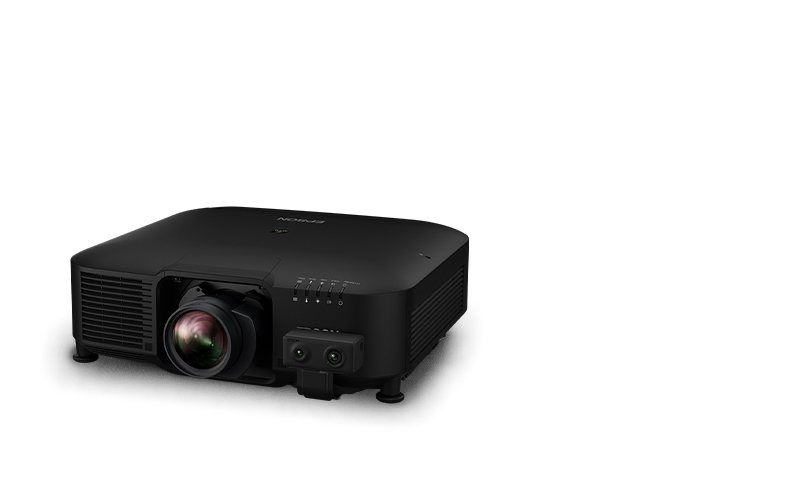

Eb-pu1008b - Projector - LCD - 8500 Lm - Wuxga - Black
ITCurry #: 1925Y126 | Article #: V11HA33840-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

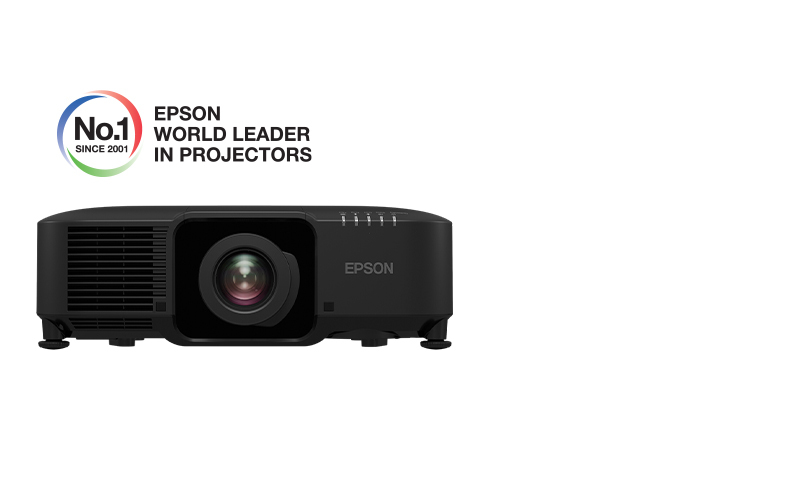

The EB-PU1008B is a compact and versatile high brightness projector with optional interchangeable lenses and advanced installation features

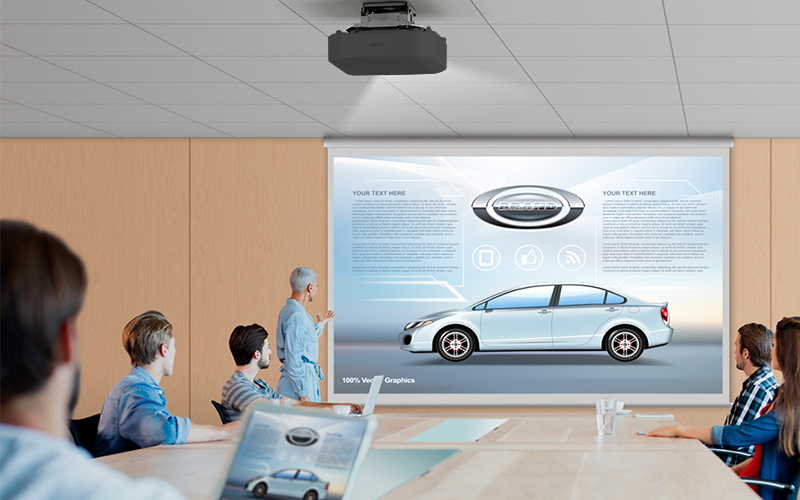

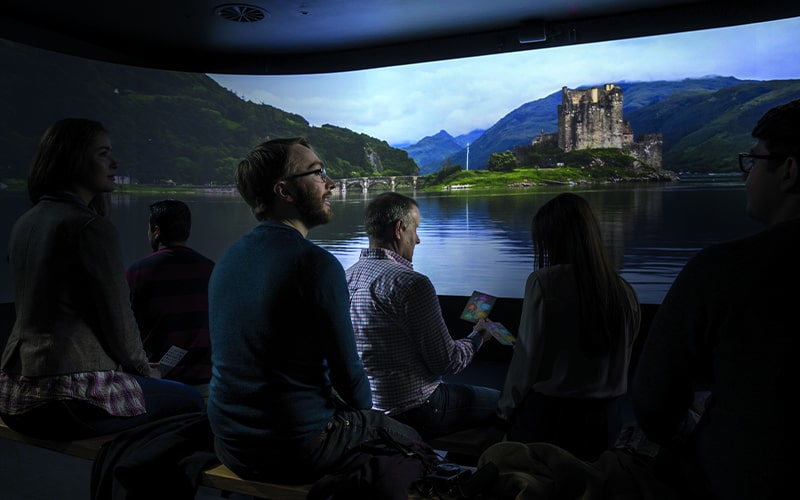

This highly versatile 8,500 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU1008B offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.
Superior image quality
The 8,500 lumens EB-PU1008B projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.
Compact and lightweight
The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments. Also available in white.

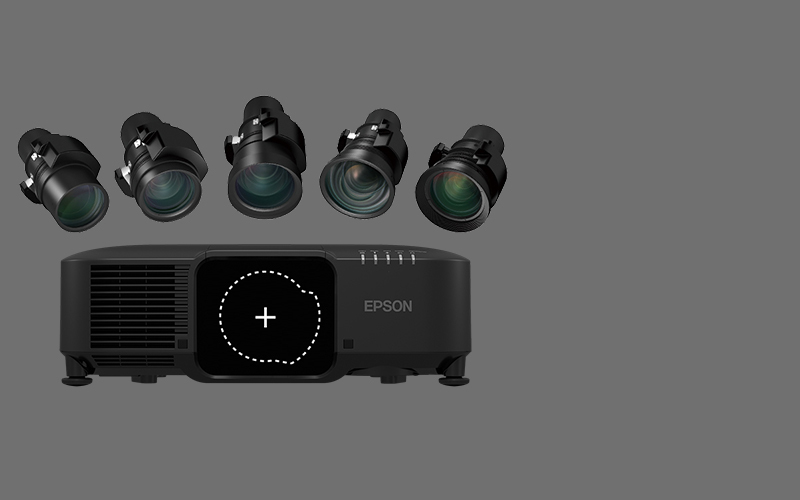

Interchangeable lens support
The EB-PU1008B accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.
Designed for installation agility

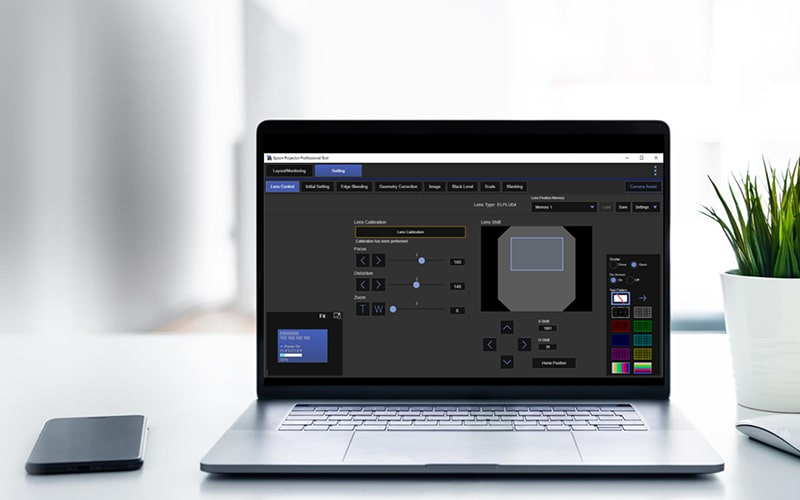

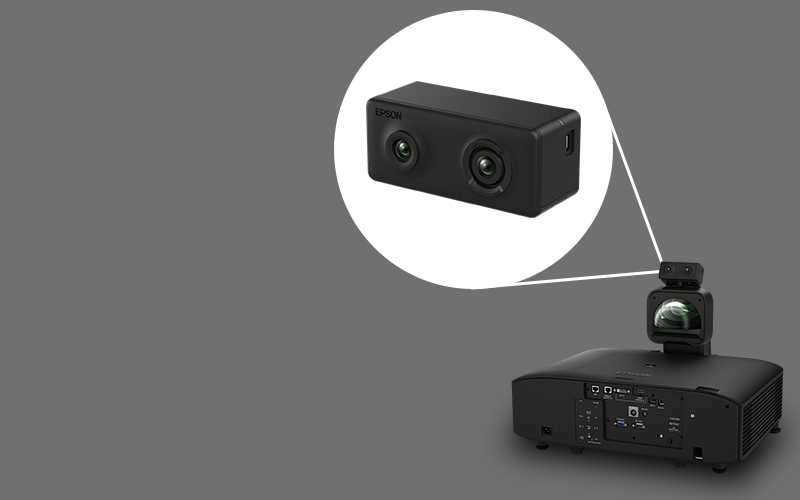

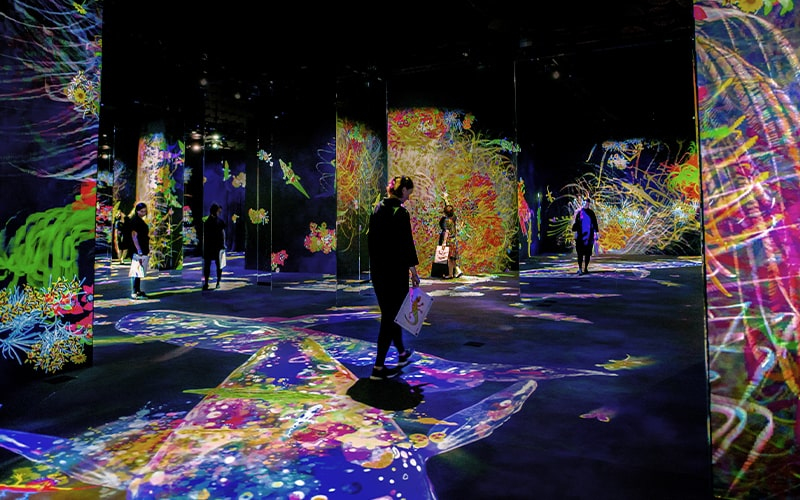

Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU1008B also features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.
| Projector | |
| Projector brightness | 8500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 5950 ANSI lumens |
| Projector brightness (portrait mode) | 8500 ANSI lumens |
| Keystone correction, horizontal | -30 - 30ø |
| Keystone correction, vertical | -45 - 45ø |
| Matrix size | 1.93 cm (0.76") |
| Heat dissipation | 1819 BTU/h |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
| Focal length range | varies by lens |
| Zoom type | Auto |
| Throw ratio | 0.35 - 10.11:1 |
| Interchangeable lens | Yes |
| Video | |
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709 |
| Ports & interfaces | |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Storage | |
| Card reader integrated | No |
| Features | |
| Noise level (economic mode) | 30 dB |
| HDCP | Yes |
| Noise level | 35 dB |
| Country of origin | Philippines |
| Password protection | Yes |
| Design | |
| Market positioning | Presentation |
| Product type | Large venue projector |
| Product colour | Black |
| Placement | Ceiling, Desktop, Flying frame |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 535 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 452 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Software | |
| Software support | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 545 mm |
| Depth | 436 mm |
| Height | 189 mm |
| Weight | 16.3 kg |
| Package width | 570 mm |
| Package depth | 760 mm |
| Package height | 270 mm |
| Package weight | 21.4 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Warranty card | Yes |
| WLAN adapter included | Yes |
| Bundled software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 14 pc(s) |
| Products per pallet (UK) | 14 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Other features | |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Warranty | |
| Base Warranty | Non Non |
