Ecs2528fp Cloud Managed Multi-gigabit Poe+ 24 Port Switch With 4 Sfp+ Ports
ITCurry #: Q4342223 | Article #: ECS2528FP
slide 2 of 4
Price:
568.28
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 7 to 11 of 14
Product Information

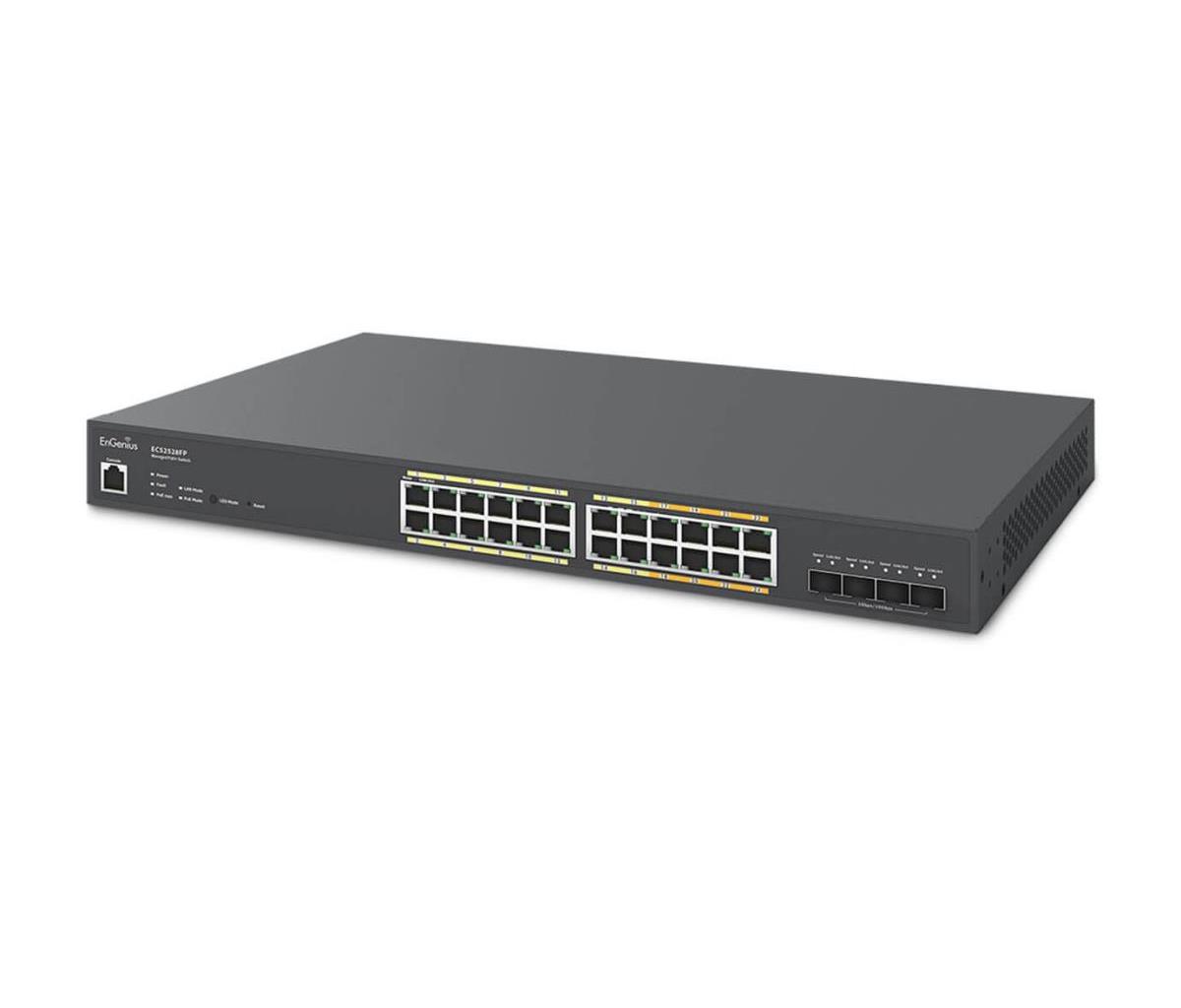

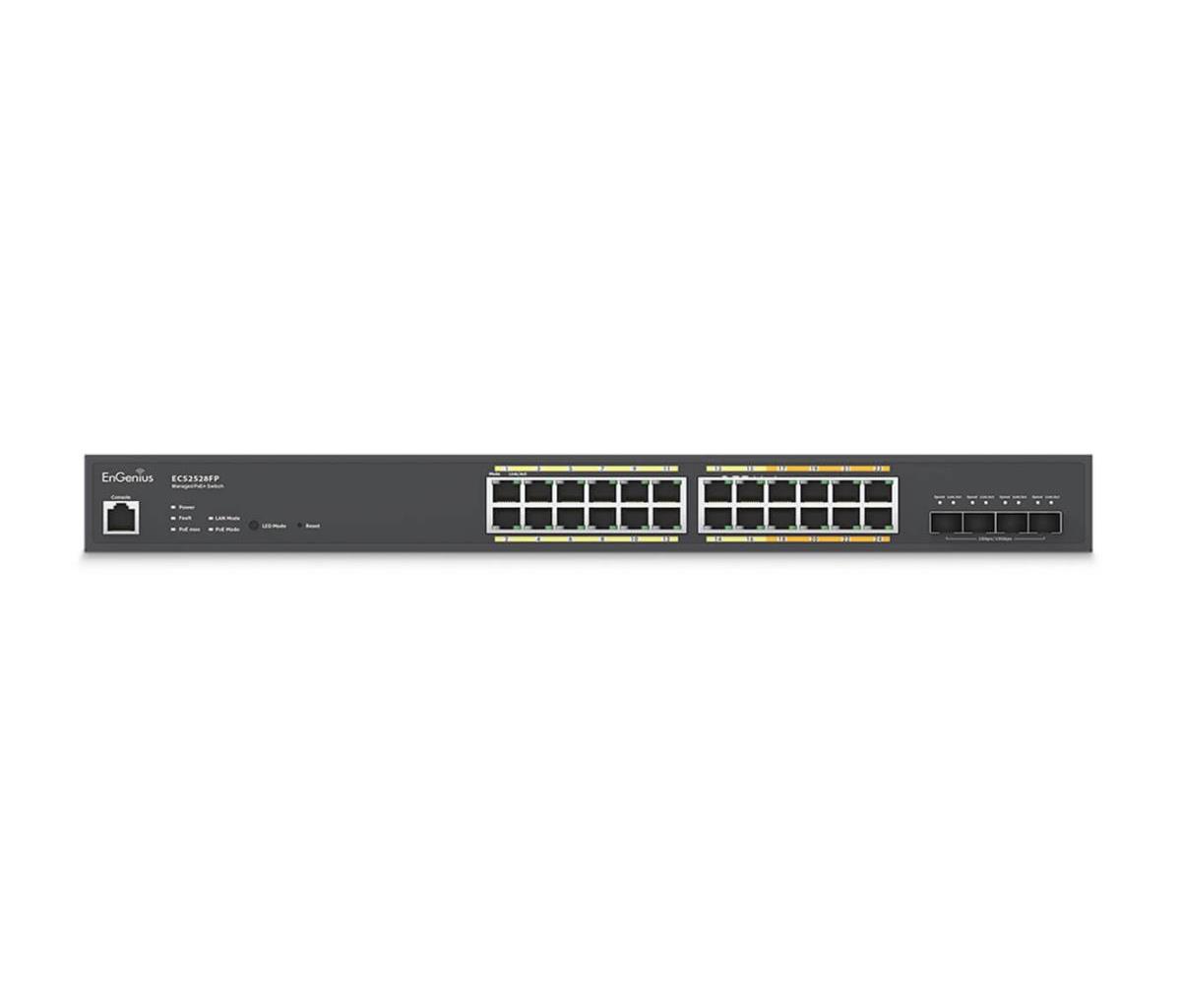

EnGenius Cloud Managed Layer 2+ Multi-Gigabit 2.5Gb Switch, ECS2528FP, provides SMBs with an easy-to-use and cost-effective network solution. With its 16-Port Gigabit PoE+ and 8-Port 2.5G PoE+ as well as 4-Port 10G SFP+ uplink with 410W budget, it ensures high-speed data transfer for bandwidth-intensive applications. With zero-touch provisioning and centralized cloud management, it simplifies network management and saves time.
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN |
| Data transmission | |
| Switching capacity | 152 Gbit/s |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Security | |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 410 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 260 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 4.08 kg |
| Packaging data | |
| Package width | 349 mm |
| Package depth | 535 mm |
| Package height | 104 mm |
| Package weight | 4.8 kg |
| Warranty | |
| Base Warranty | Non Non |
