Product Information

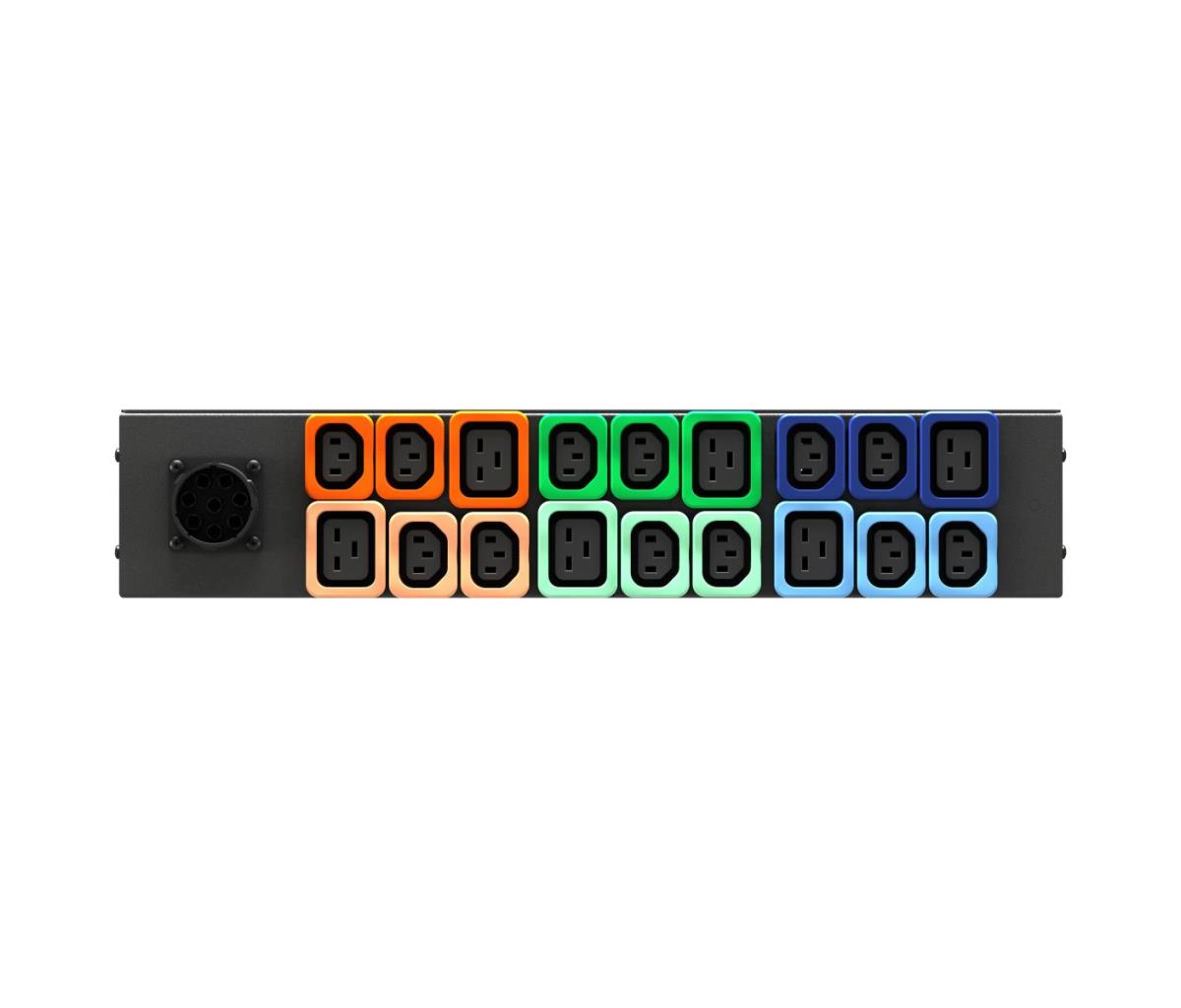

The Vertiv Geist UPDU is a versatile rack power distribution unit featuring a universal input and detachable Facility Side Cable (FSC - sold separately). The UPDU supports common AC power configurations ranging from 16A-60A and 120V-415V. Available in basic to intelligent models featuring advanced remote power monitoring, environmental monitoring, and optional outlet level switching. The UPDU simplifies critical IT infrastructure deployments by allowing a single model to be installed around the world.
| Design | |
| PDU types | Basic |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | Yes |
| Ports & interfaces | |
| AC outlets quantity | 18 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| LED indicators | No |
| Certification | CE, UL, CB |
| Power | |
| Nominal input voltage | 230/400 V |
| AC input frequency | 50 Hz |
| Maximum current | 32 A |
| Load capacity | 22000 VA |
| Weight & dimensions | |
| Width | 87 mm |
| Depth | 432 mm |
| Height | 299 mm |
| Weight | 7.26 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 øC |
| Technical details | |
| Compliance certificates | RoHS |
| Warranty | |
| Base Warranty | Non Non |
